Appendix F: Configuration Setup
In order to support the requirements of some validations of the AML STC, this section should be easily removable and inserted into
the aircraft logs.
For those installations where an AeroNav XXX is replacing a GNS-530/W or GNS-430, please record the following parameters from
the GNS-530/W or GNS-430/W setup pages before removing the unit (Note: this will need to be conducted for each GNS-530/W or
GNS-430/W being replaced):
WAAS Enabled (530W or 430W with approved antenna)? Yes No 2
nd
unit: Yes No N/A
530/W or 430/W Hardware Part Number and Revision Number (back of unit or aircraft logs) _______________/_______________
530/W or 430/W Software Part Number (“Main SW Version” on start up splash screen) __-________________/_______________
If multiple GNS-530/W or GNS-430/W were installed, describe the slot/location that this specific unit was removed from.
Cockpit Location of Unit(s) in Question
Description of location/slot in the
cockpit (Include rough sketch if
deemed helpful)

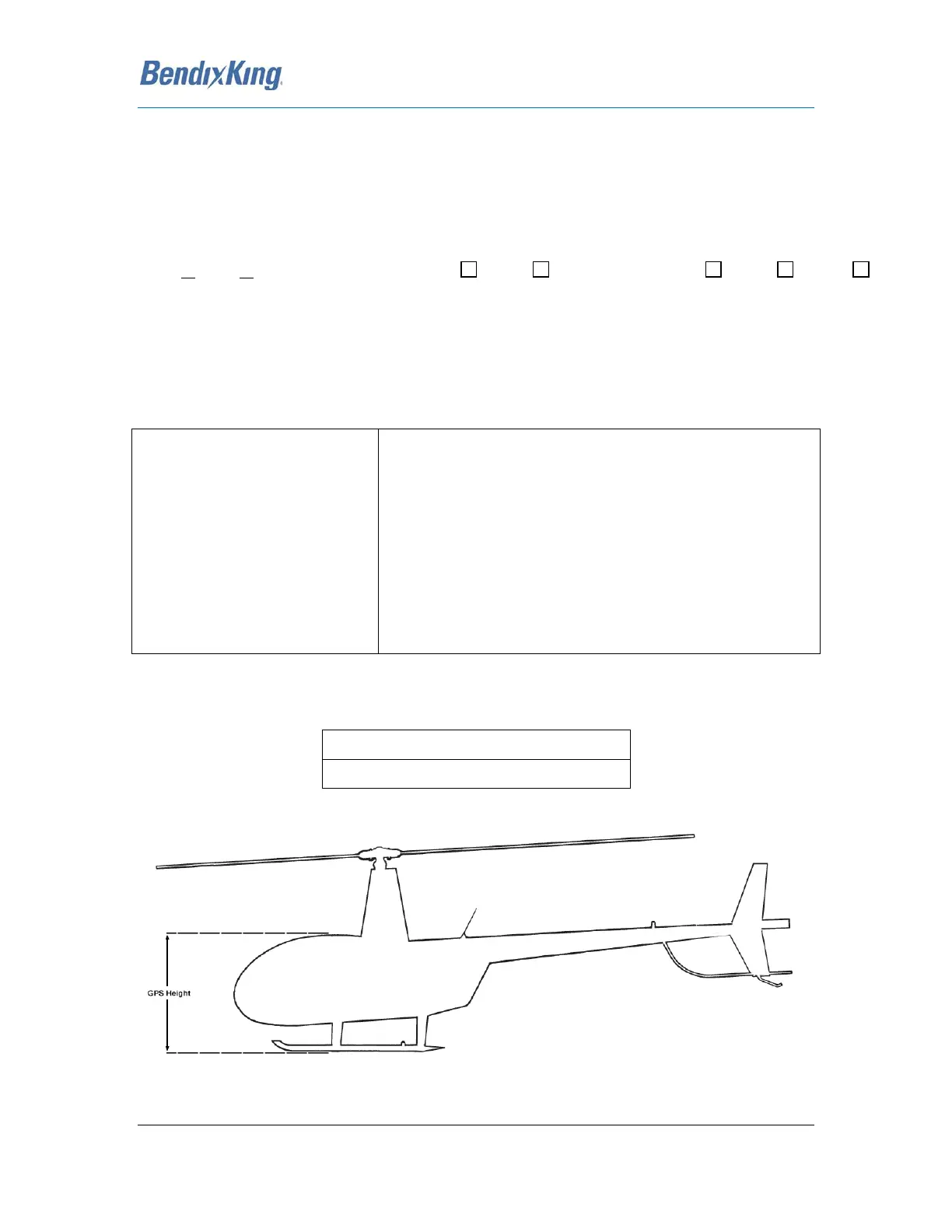

Measure the distance from the ground to the top of the GPS antenna to nearest tenth of a foot, as shown in the image below, and
enter the value in the box below: (to the nearest 1/10
th
foot).
Measured Height of GPS Antenna
