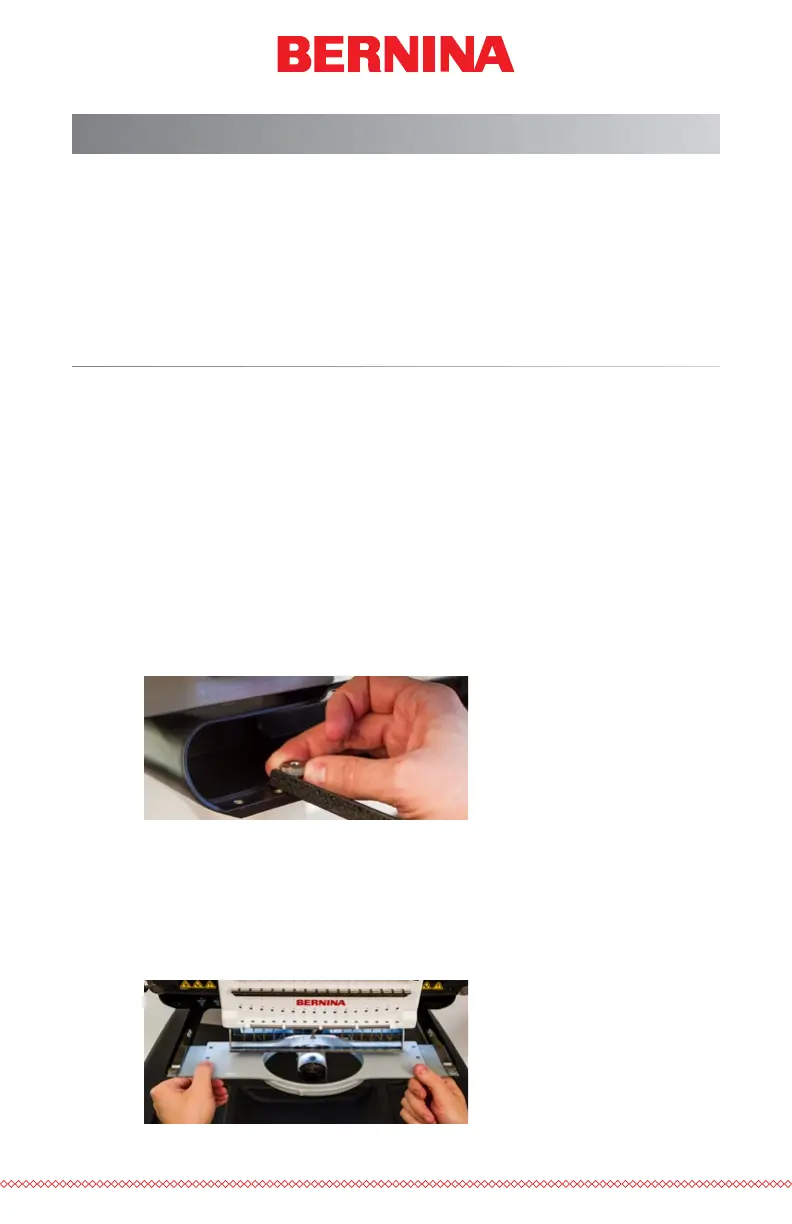

Attaching or Moving the Hoop Support Arms
Depending on the hoop you plan on using, the hoop support arms on the
machine will need to be in the inner position, outer position, or removed
completely if using a clamp or the wide angle driver.
This section will walk you through attaching and removing the support
arms properly as well as adjusting the spring clips.
Attaching the Hoop Support Arms
Determine which support arm position the chosen hoop requires. Most
of the smaller hoops require the inner position. Most of the larger hoops
require the outer position.
1. Align the hoop arms to either the inner holes or the outer holes on
the x-carriage. There will be two holes for each support arm.
2. Make sure the clips on the ends where the tubular frame will at-
tach are facing up. The sides of the arms should face outward. This
will ensure the brackets are attached to the correct side of the car-
riage. Also make sure both clips are attached securely to the arms.
3. Insert two thumbscrews for each arm. Screw them in to almost
nger tight.
4. Install a hoop by sliding the side brackets of the hoop underneath
the spring clips on the support arms. Slide the hoop towards the
rear of the machine until it snaps into place and the brackets are
fully seated beneath the spring clips. Make sure that the slotted
bracket is to the right as you are facing the machine. The support
arms will still move a little.
