84 of 109

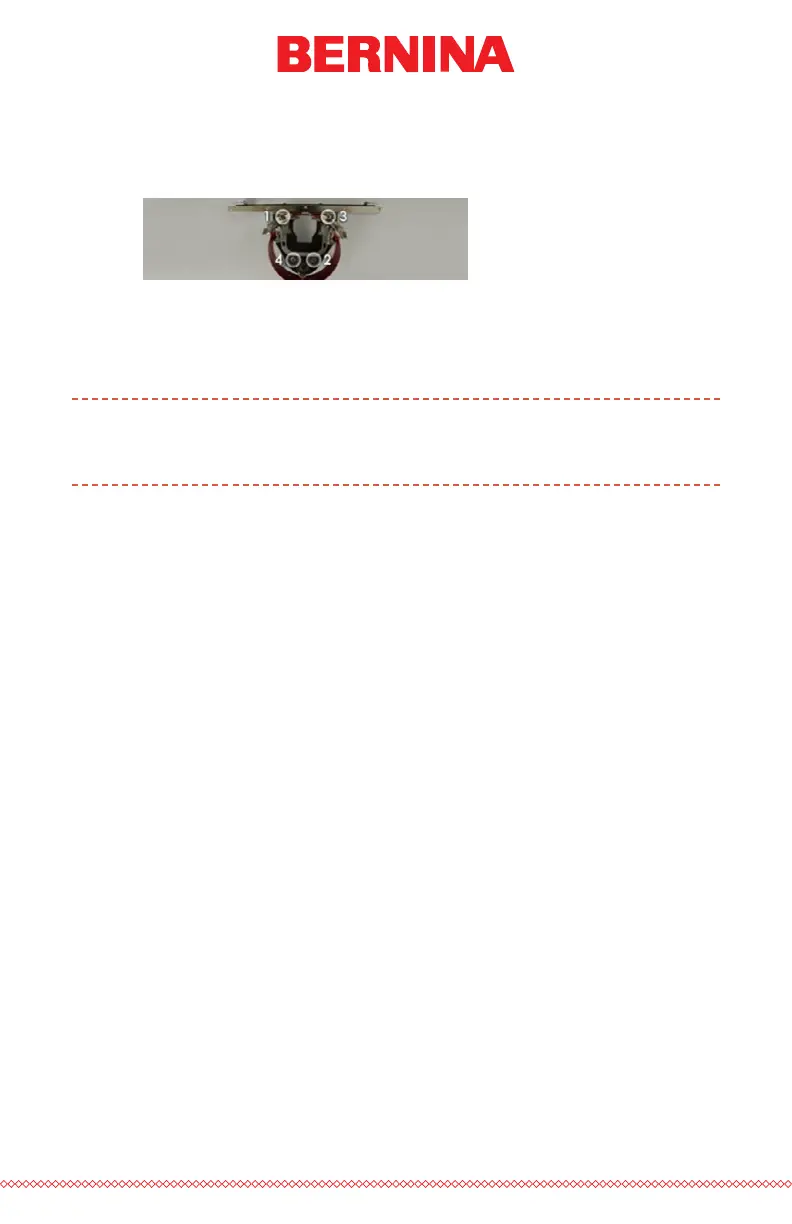

7. Tighten the second upper screw securing the bracket and then
the second lower screw securing the bearing mounting bracket.
Tightening these four screws in a star-like pattern achieves the best
results. Then remove the business card.
8. Move the y-beam and x-carriage by hand to ensure there is no
binding. This can only be accomplished with the machine off or the
e-stop engaged.
If using the red wide angle driver with the Conventional Cap Frame or
any of the micro-clamps, the cap support wings must be removed to
prevent interference with the frames.
