Simulation Digital Output
Device settings | Setup | Simulation | Digital Output
1
2
3
4
5
ERROR (DO-1)
ALARM (DO-2)
ALARM (DO-3)
Dropdown field
Button <Disable test mode>

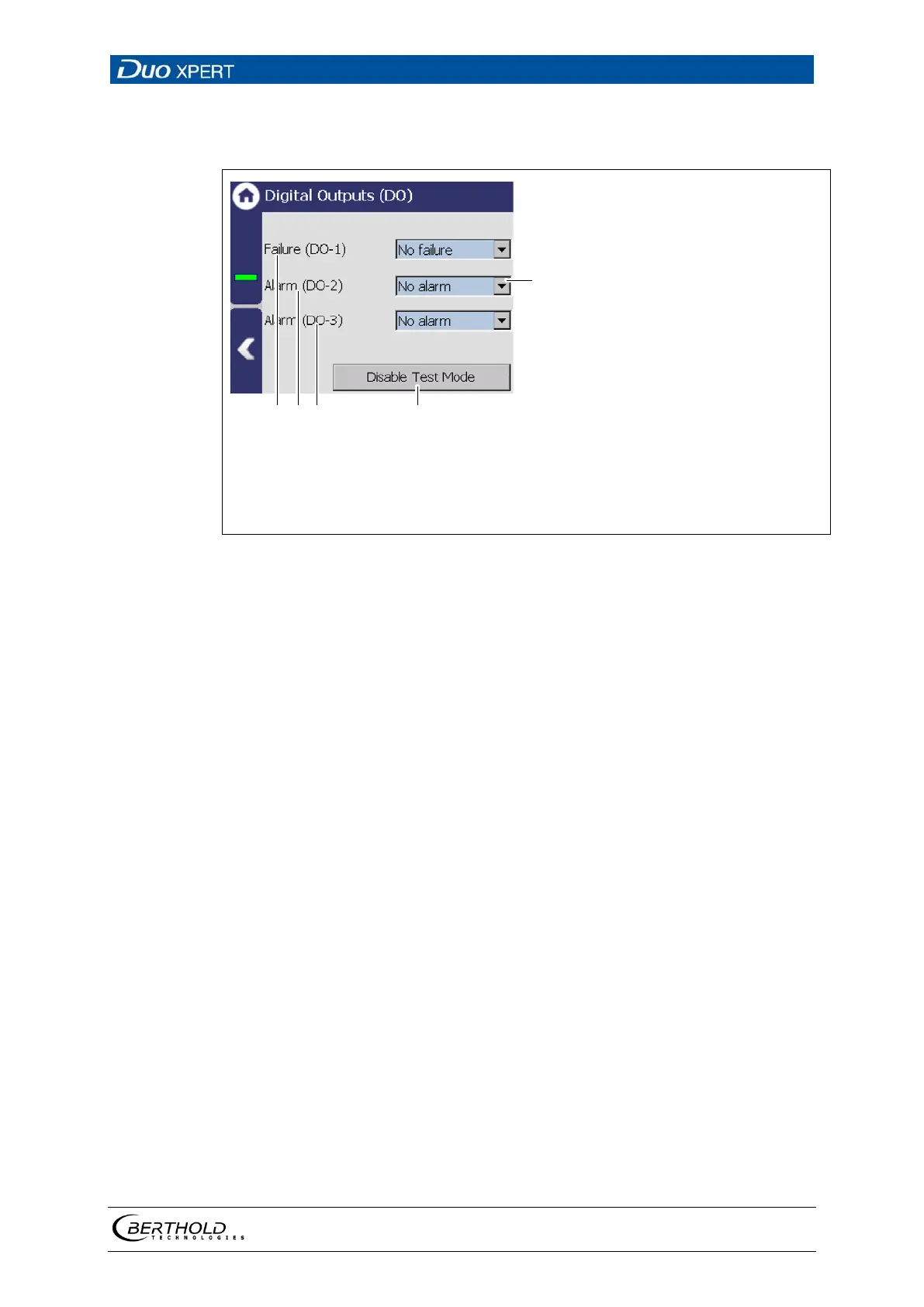

Fig.
132 Simulation Digital Outputs
1. Click on the dropdown field (Fig. 132, item 5) and select "FAILURE" or
"ALARM" for the simulation.
 The test is performed and a system event is displayed.
2. Click on the <Disable Test mode> button (Fig. 132, item 4) to stop the simula-
tion.
