slipping out of the hood applicator head. The film length measuring device de-
termines the released length of the gusseted film tube.
The individual components are driven pneumatically or by an electric motor.
When a new gusseted film tube is to be inserted in the hood applicator head, the
film brake on the hood applicator head can be activated manually.

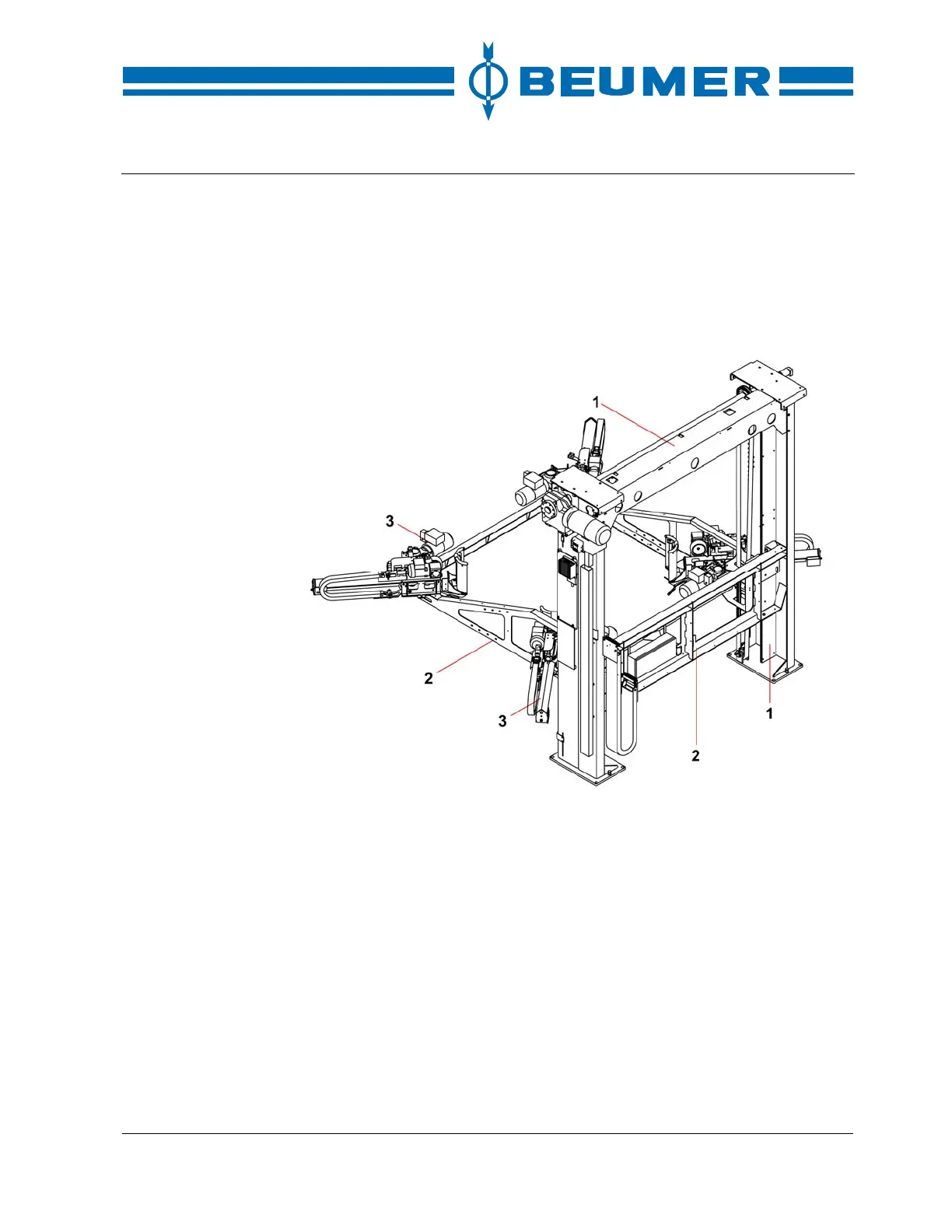

Hoist with stretch frame
1 Hoist
2 Stretch frame
3 Crimping and stretching unit
The hoist is part of the supporting structure for the hood applicator head and the
platform. A drive motor with countershaft and chain drive for lifting and lowering
the stretch frame is fastened to the hoist. The hoist is equipped with a pneumatic
hoist safety device. This safety device secures the hoist during maintenance
work.
The stretch frame is fastened to the hoist chains. The stretch frame is moved
vertically in the hoist. The four crimping and stretching units are fastened to the
stretch frame.
