Technical description
BEUMER stretch hood® S
28 BA-6090103-EN
19.08.09

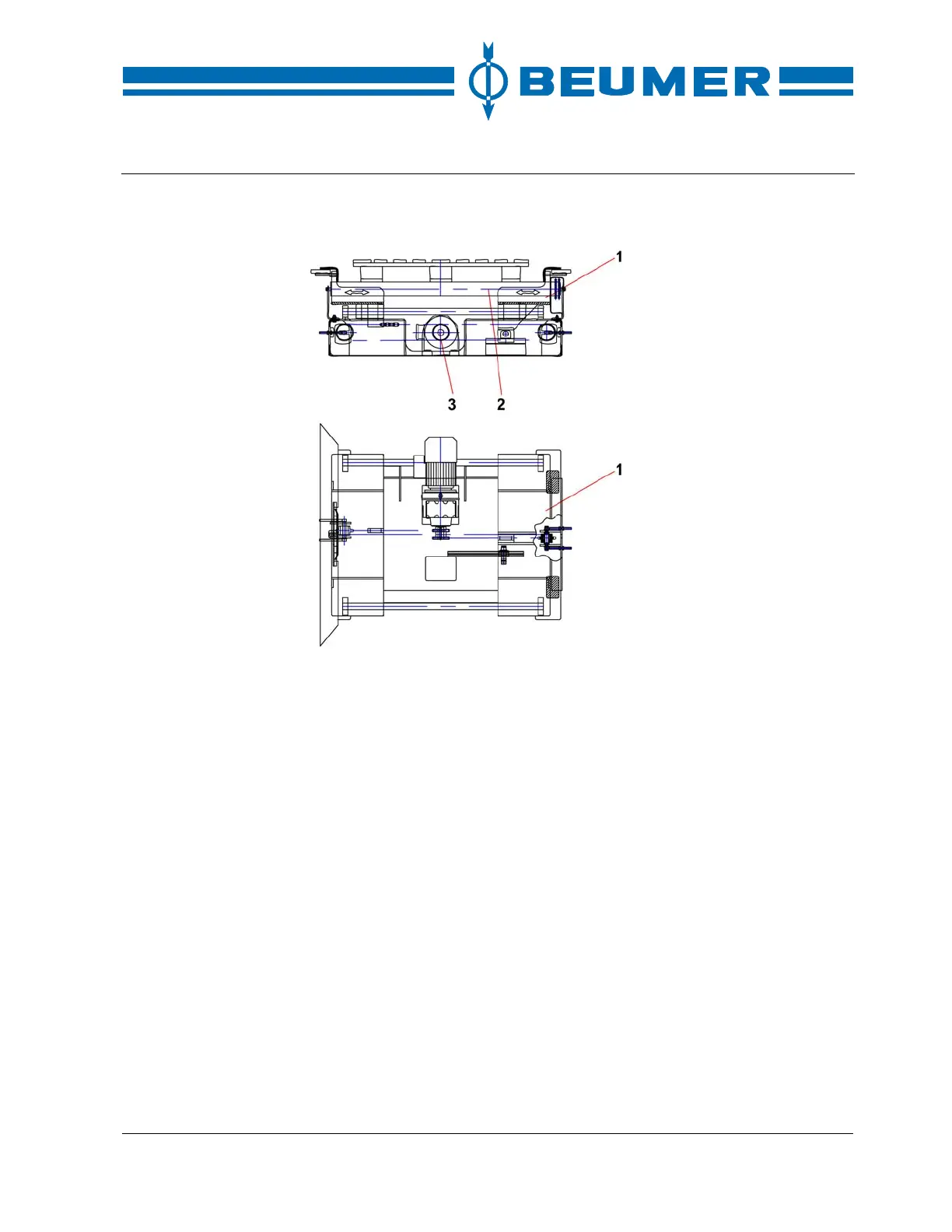

Pallet positioning device
1 Pallet slide plate
2 Roller conveyor
3 Drive unit for pallet slide plate
The pallet positioning device aligns the palletised load unit in conveying direc-
tion. The palletised load unit is shifted on the roller conveyor at right angles to
the conveying direction. The displacement unit is integrated into the roller con-
veyor. The pallet slide plate is driven by a geared motor and a chain drive.
