Installation
BEUMER stretch hood® S
42 BA-6090103-EN
19.08.09
Film releasing trestle
The film releasing trestle is supplied together with the ladder. The film releasing
trestle is bolted to platform on the side where the hoist is located. The position of
the ladder is shown in the installation drawing.

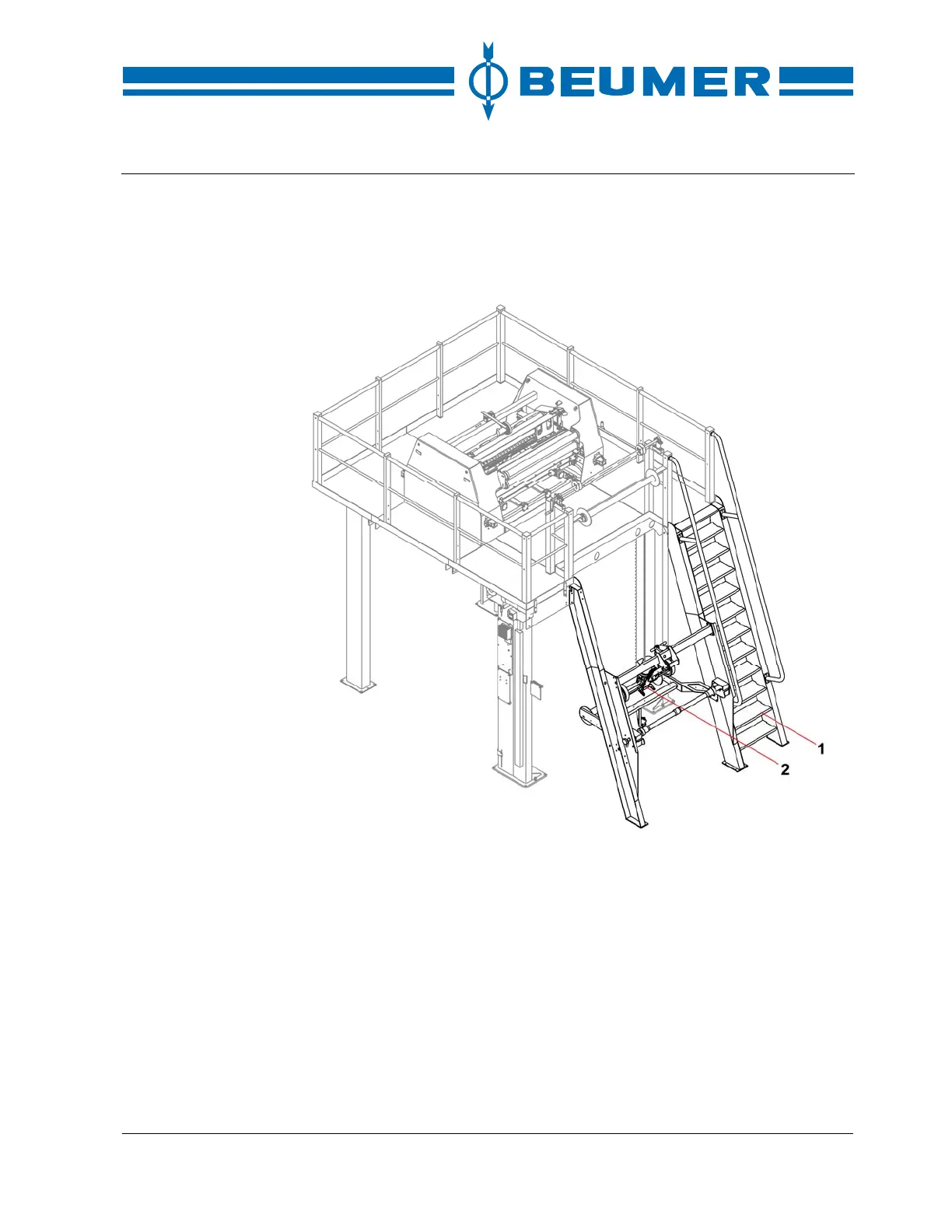

1 Film releasing trestle
2 Ladder
How to install the film
releasing trestle
1. Set up the film releasing trestle and bolt it to the platform.
2. Align the film releasing trestle.
3. Fasten the film releasing trestle on the floor.
