Pallet transport system
The installation of the pallet transport system starts with the hoist. The individual
pallet roller conveyors are positioned centrally to the transport route. Then the
pallet roller conveyors are to be aligned horizontally in order to ensure a straight
movement of the pallets. The drive end can be seen from the installation draw-
ing. The supports of the pallet roller conveyors are vertically adjustable. After
alignment, the adjusting screws are to be fixed by locknuts. The pallet roller con-
veyors are fastened on the floor by dowels.

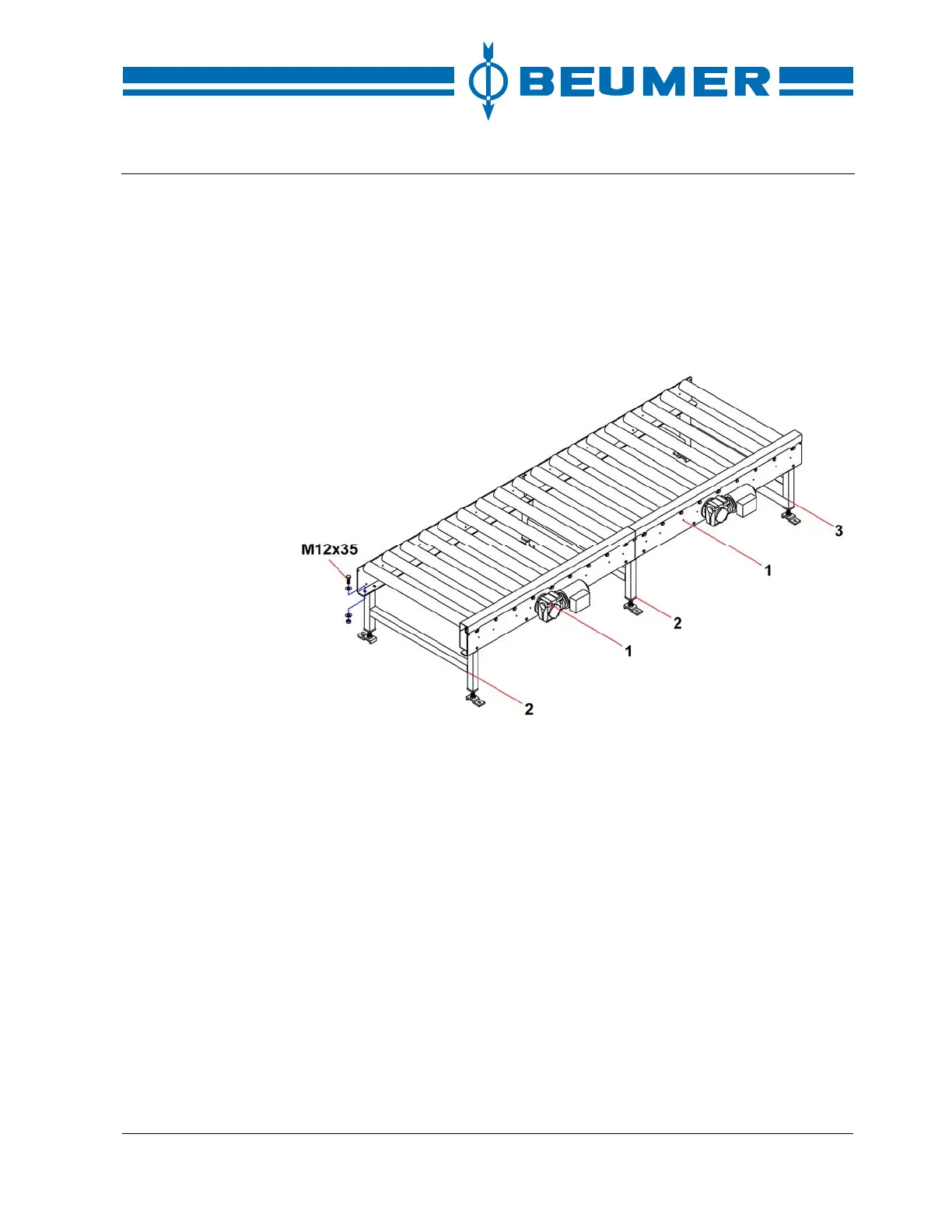

1 Pallet roller conveyor
2 Support
3 Support with brace
How to mount the
pallet roller convey-
ors
1. Screw the pallet roller conveyors to the supports.
2. Mount the support with brace on the last pallet roller conveyor.
3. Align the pallet roller conveyors in conveying direction on the transport route.
4. Align the pallet roller conveyors horizontally.
5. Fasten the supports on the floor by dowels.
