BL-CB33-0115 - 03-01-2018 3-5

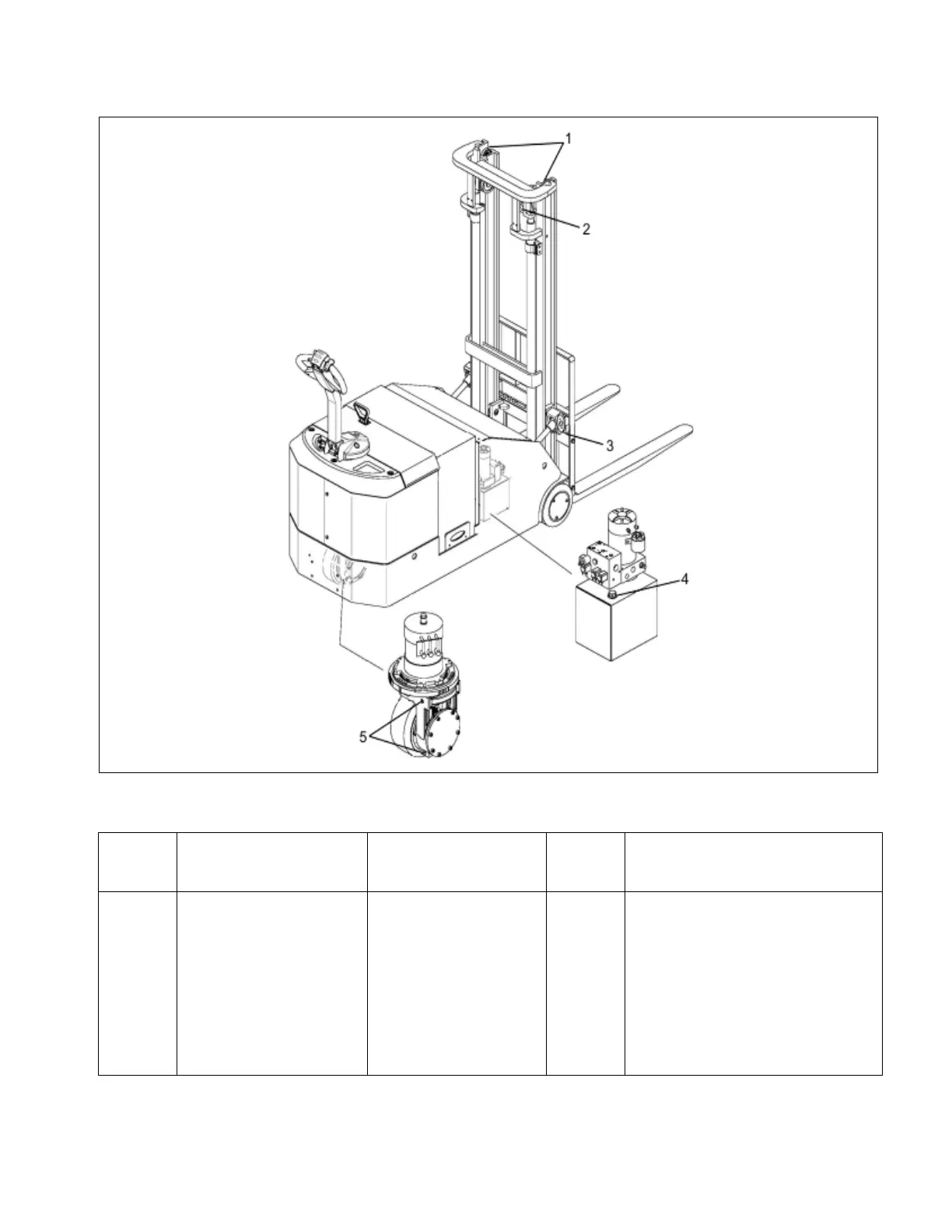

Figure 3-1 Lubrication Diagram
Table 3-3 Lubrication Chart
FIG 3-1
INDEX
NO.
LOCATION METHOD OF
APPLICATION
TYPE
(Table
3-3)
APPLICATION
OF
LUBRICANT
1 Inner & Outer Mast Brush No. 2 Full length of channel where rollers
operate.
2 Lift Chain Brush or Spray No. 4 See Paragraph 3-6.
3 Lift Carriage Brush No. 2 Light coating where forks slide
4 Hydraulic Reservoir
Capacity-1 quarts
Can No. 3 With lift carriage fully lowered, fill
reservoir with hydraulic oil to 1
inch below opening
5 Transmission
Capacity 2 pints
Can No. 1 Fill to level plug opening
To Next Page
