9-6 BL-CB33-0115 - 03-01-2018
9-4. Lift Cylinder (Three Stage Mast Free Lift)
9-4.1. Removal
1. Fully lower the lift carriage.
2. Turn off the key switch and disconnect the batteries.
WARNING: Before attempting any replacement, make certain
power is disconnected.
3. Using another lift truck or suitable jack, raise lift carriage far
enough to remove pressure on the free lift cylinder
4. Remove cotter pin and clevis pin connecting the lift chain to
the anchor at cylinder.
5. Remove screw, lock washer, flat washer, bracket and ram
head (8) from cylinder.

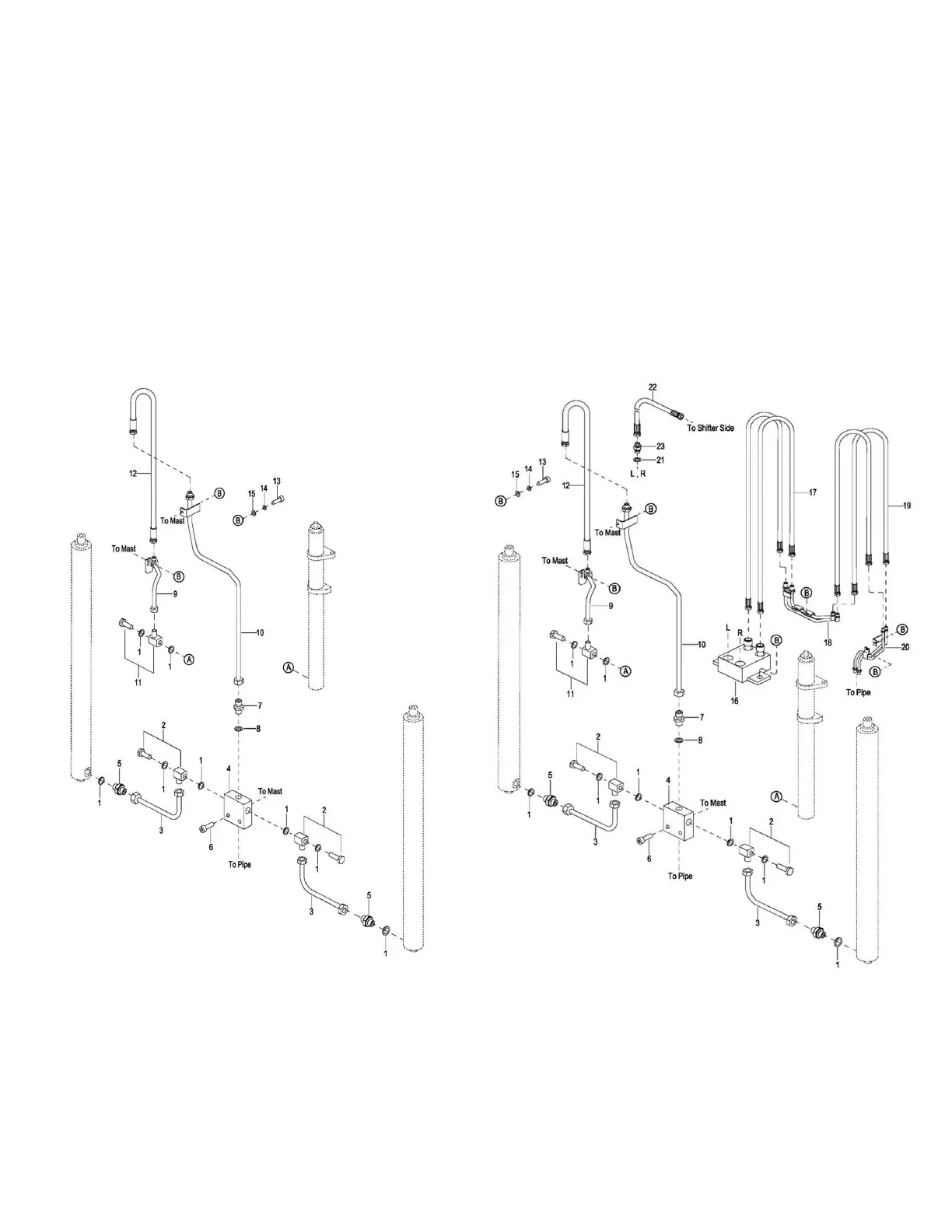

Figure 9-5 Lift System (Three Stage Mast)
DP_0020
Without Side Shift
DP_0038
With Side Shift
To Next Page
