CAUTION: Hydraulic oil can damage parts. Wipe off
any oil immediately. Provide a container
under the line or fitting before discon-
necting.
6. Remove chains from sheaves.
7. Disconnect the tube from the bottom of lift cylin-
der.
8. Support cylinder and remove two screws, two lock
washers and two flat washers.
9. Raise lift cylinder assembly up and out of truck.

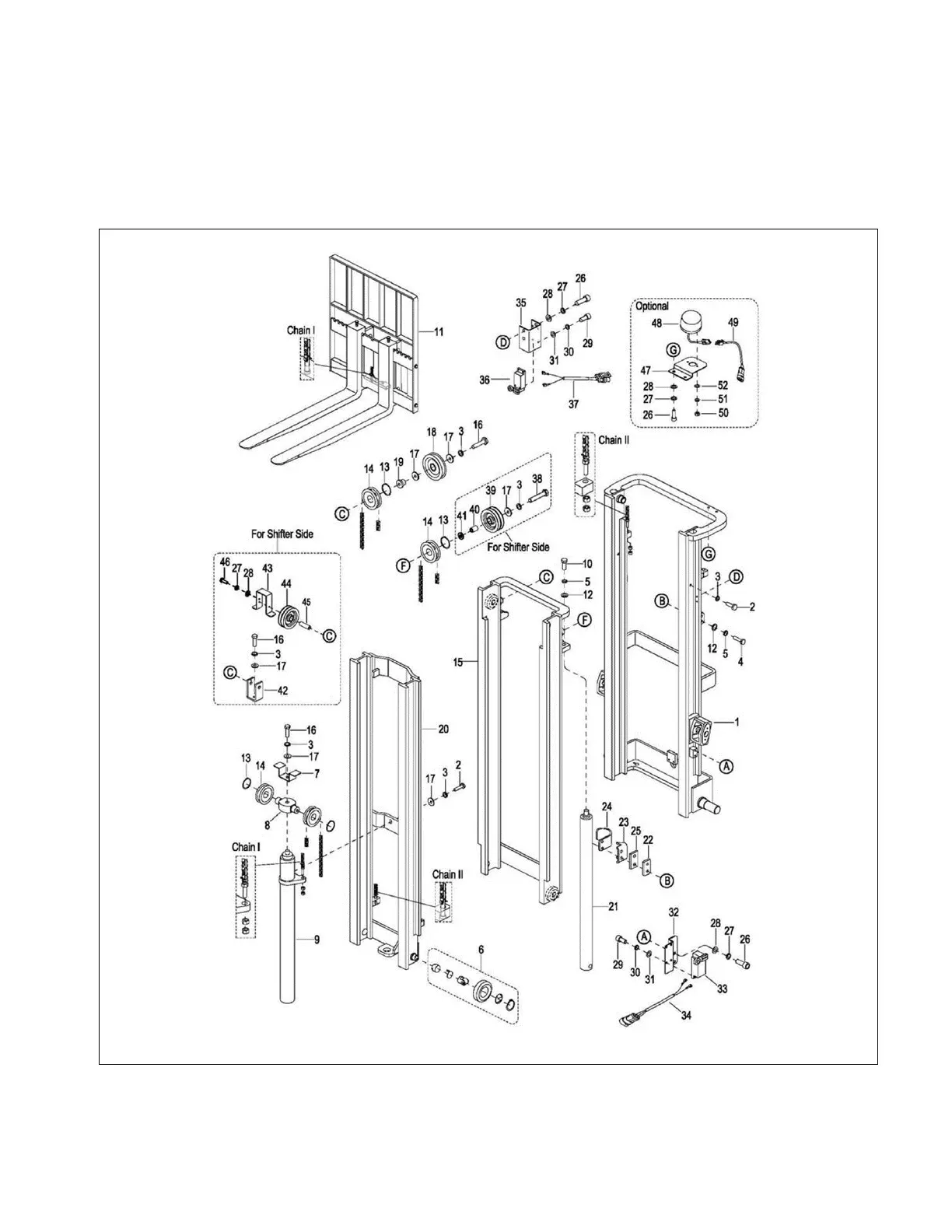

Figure 9-6 Elevation System (Three Stage Mast)
