5-2 BL-CB33-0115 - 03-01-2018
5-1.2. Cap Assembly Installation.
1. Hold cap in place and reconnect harness to har-
nesses in control handle.
2. As cap is installed, install cover and spring.
Secure cap with screws.
3. Reconnect the batteries and turn on the key
switch.

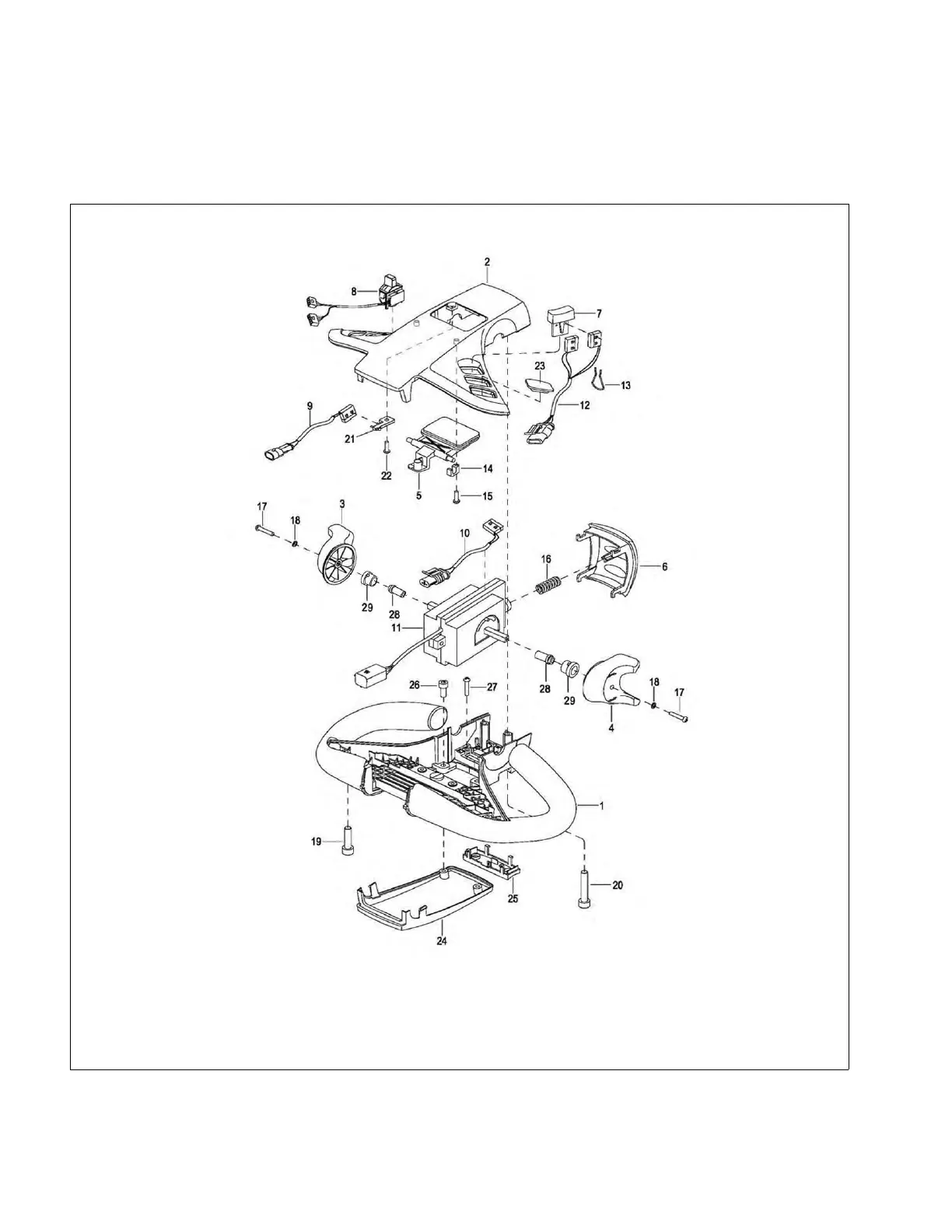

Figure 5-2 Control Head
