BL-CB33-0115 - 03-01-2018 5-1
SECTION 5
STEERING SYSTEM, CONTROL HEAD AND COMPARTMENT
5-1. CONTROL HEAD
5-1.1. Cap Assembly Removal.
1. Turn off the key switch and disconnect the batter-
ies.
2. Remove screws. As cap is removed, cover and
spring can be removed.
3. Lift up cap, tag and disconnect harness from har-
nesses in control head.
4. Remove cap.

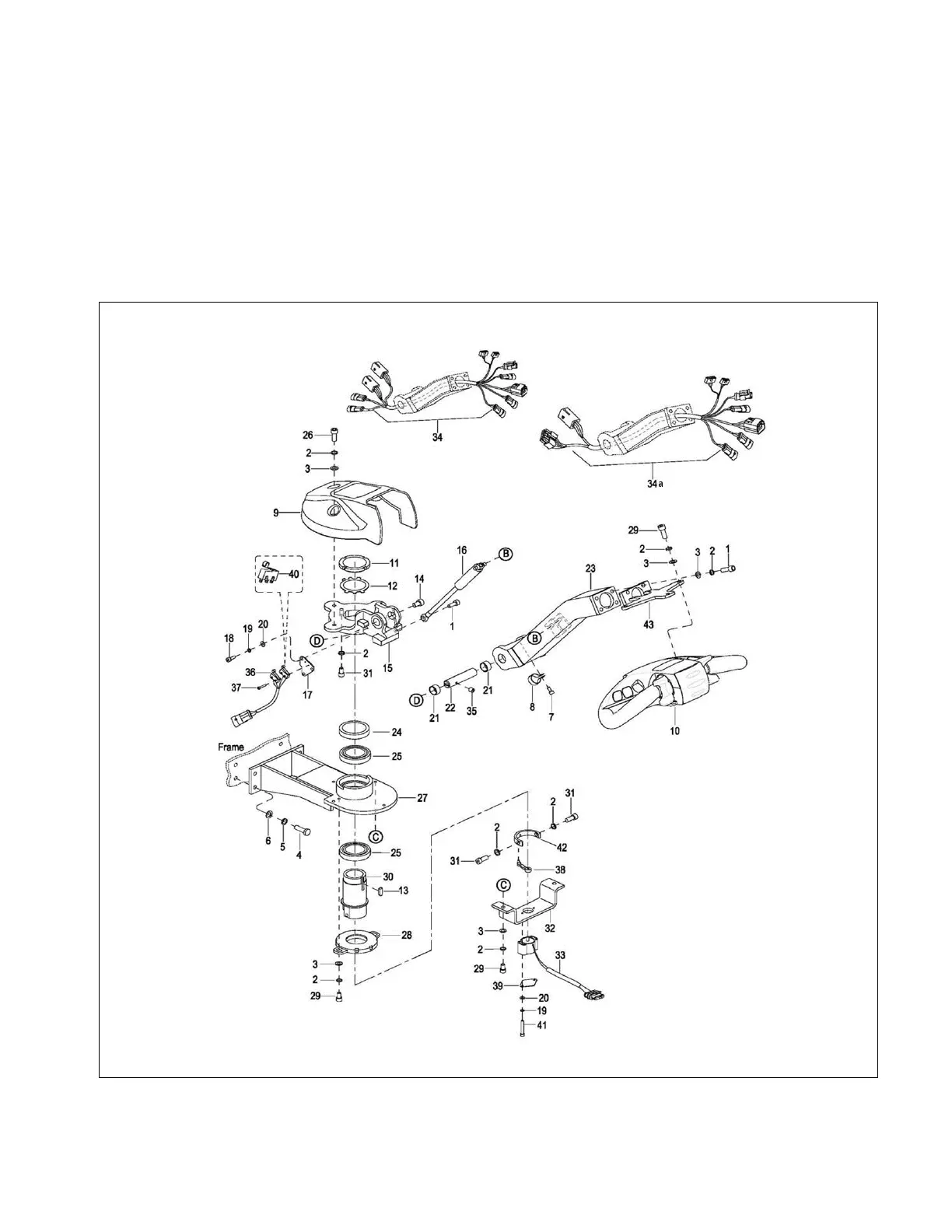

Figure 5-1 Control Arm
