BL-CB33-0115 - 03-01-2018 9-11
9-5.4. Tilt Cylinders
9-5.4.1.Removal
WARNING: Mast must be supported by a hoist
before removing the tilt cylinders.
1. Secure mast with a hoist and safety chains and
blocking under the mast.
2. Turn off the key switch and disconnect the batter-
ies.
WARNING: Before attempting any replacement,
make certain power is disconnected.
CAUTION: Hydraulic oil can damage parts. Wipe off
any oil immediately. Provide a container
under the line or fitting before discon-
necting.
3. Remove the front compartment covers as
described in paragraph 5-3.
4. Support the mast in an upright position.
5. Disconnect hoses from the tilt cylinder.
6. Remove bolt lock washer, flat washer and shaft
from the cylinder.
7. Support the tilt cylinder and remove bolt, lock
washer, flat washer and shaft from the cylinder.
8. Carefully raise tilt cylinder from the truck.

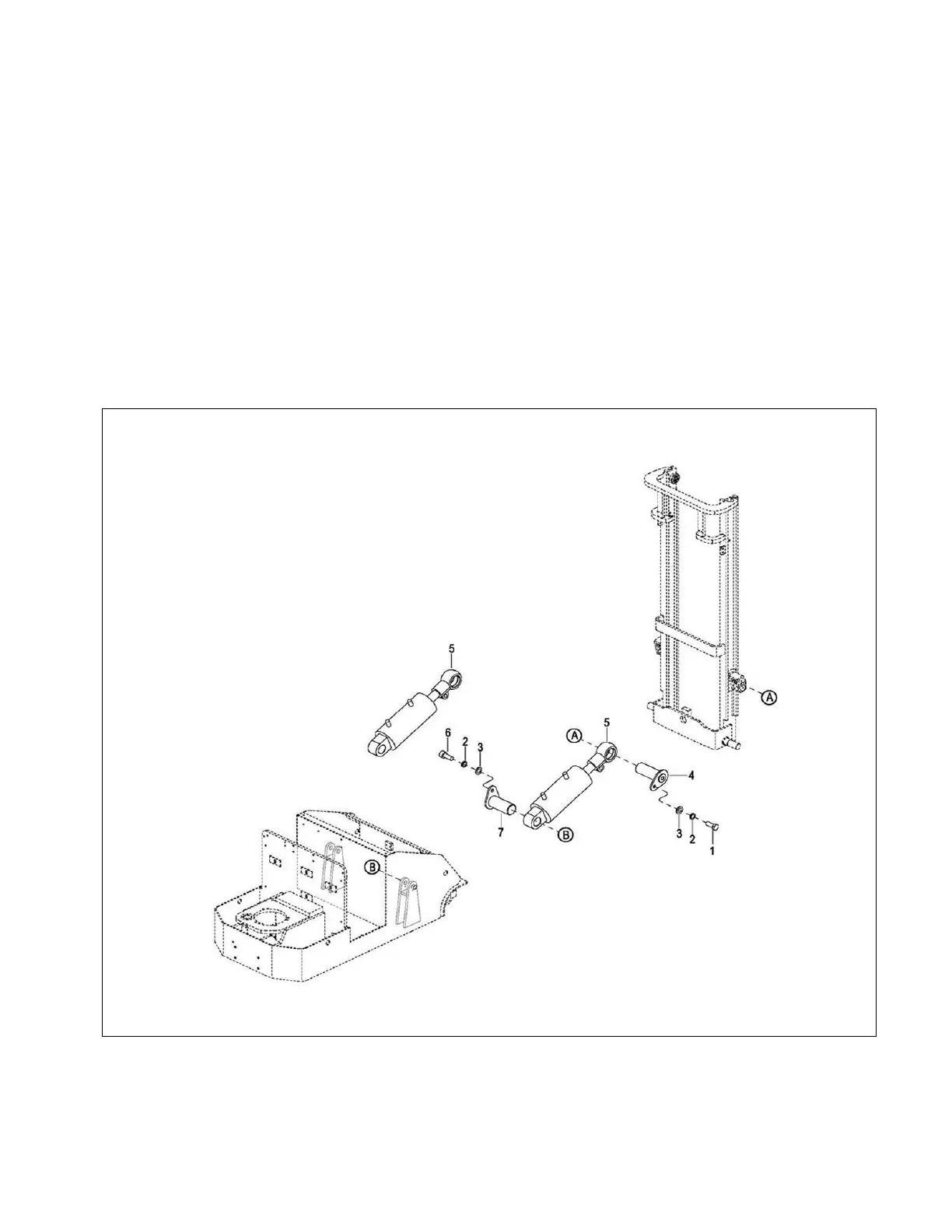

Figure 9-9 Tilt Cylinder Mounting
