2.6 Drain well for condensate during defrosting (option)
The drain well collects the dripping water when defrosting.
Strong magnets on the drain well sides fix it on the chamber.
Attach the drain well to the freezer. Its first level rests on the lower housing panel. The gasket is aligned to
the bottom edge of the freezer interior.

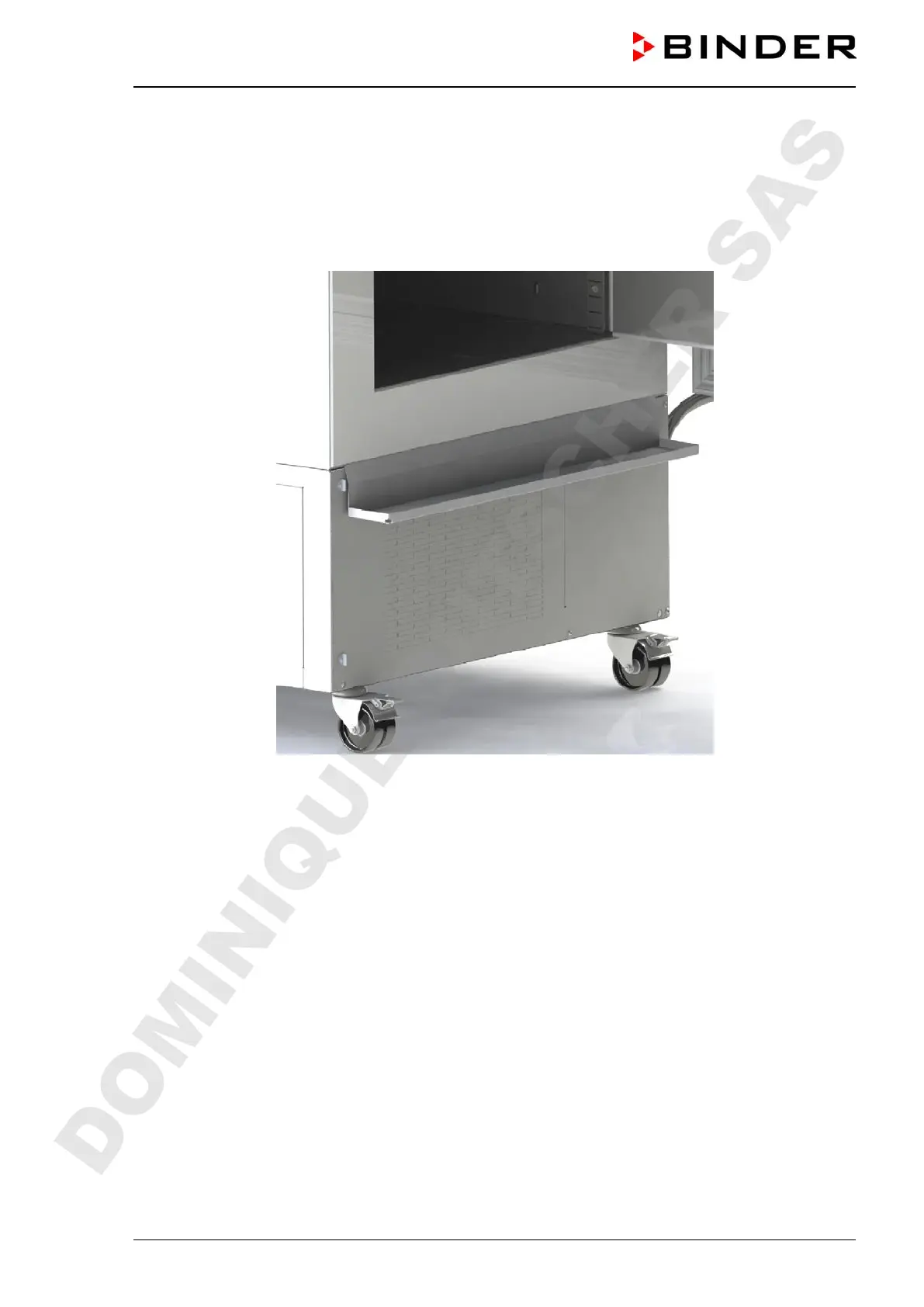

Figure 13: Freezer with drain well (option)
While defrosting use adhesive tape to keep the door above the drain well (drain off position). Now the
melted condensate flows into the drain well.
Place a reservoir below the hole at the front left corner of the drain well, so that the water can drain off.
