21. CO
2
emergency cooling (option)

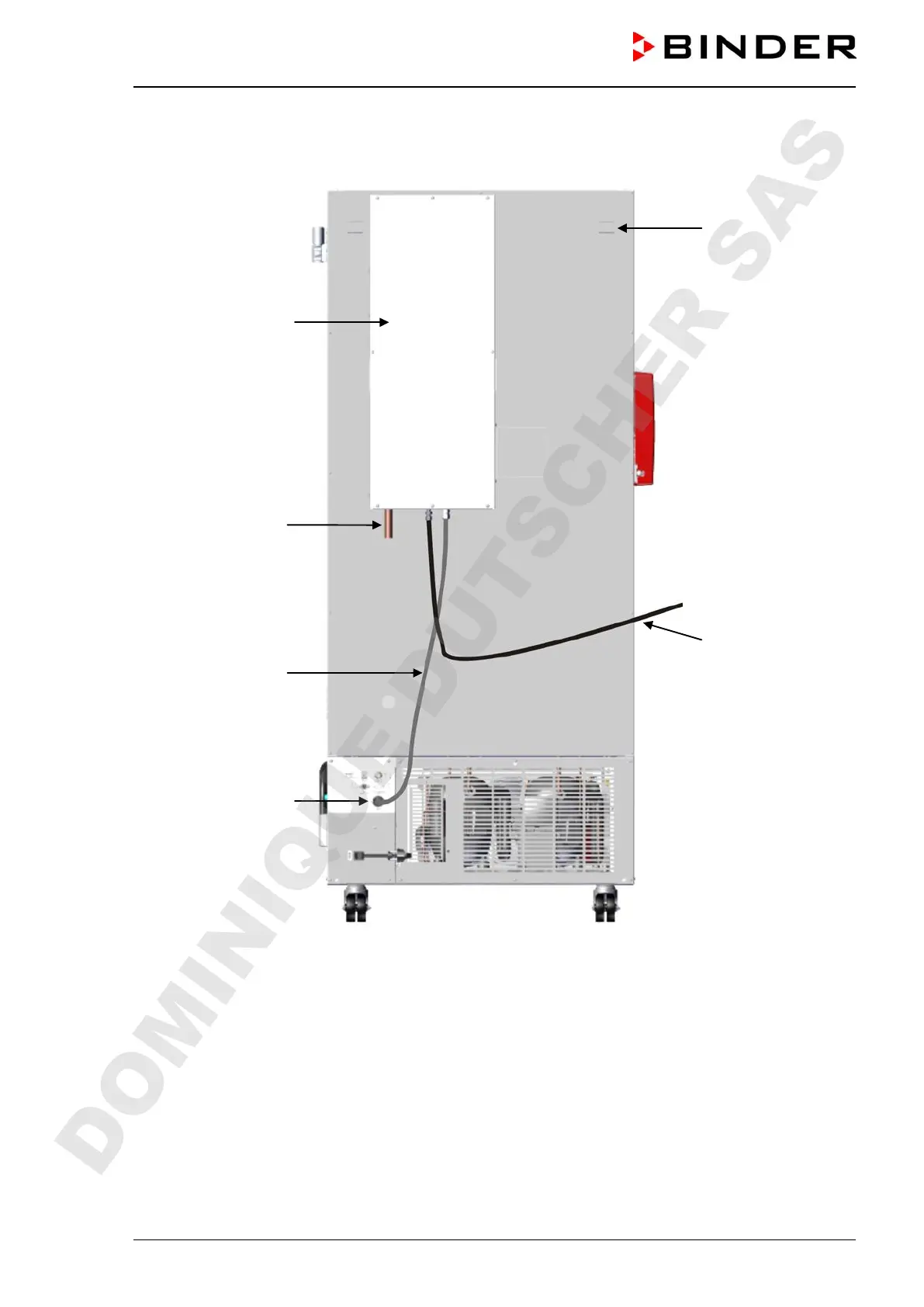

Figure 23: Rear view UF V with CO
2
emergency cooling system
(J) CO
2
emergency cooling
(13) Connection socket for the electrical connection of the CO
2
emergency cooling
(14) CO
2
discharge outlet to connect a discharge hose
(15) Cable to connection socket (11) for the electrical connection of the CO
2
emergency cooling
(16) Pressure compensation opening (visible from the inside). Here CO
2
will also escape.
(17) Gas hose to connect the pressurized CO
2
cylinders
(16)
(17)
(14)
(15)
(
11)
(12)
