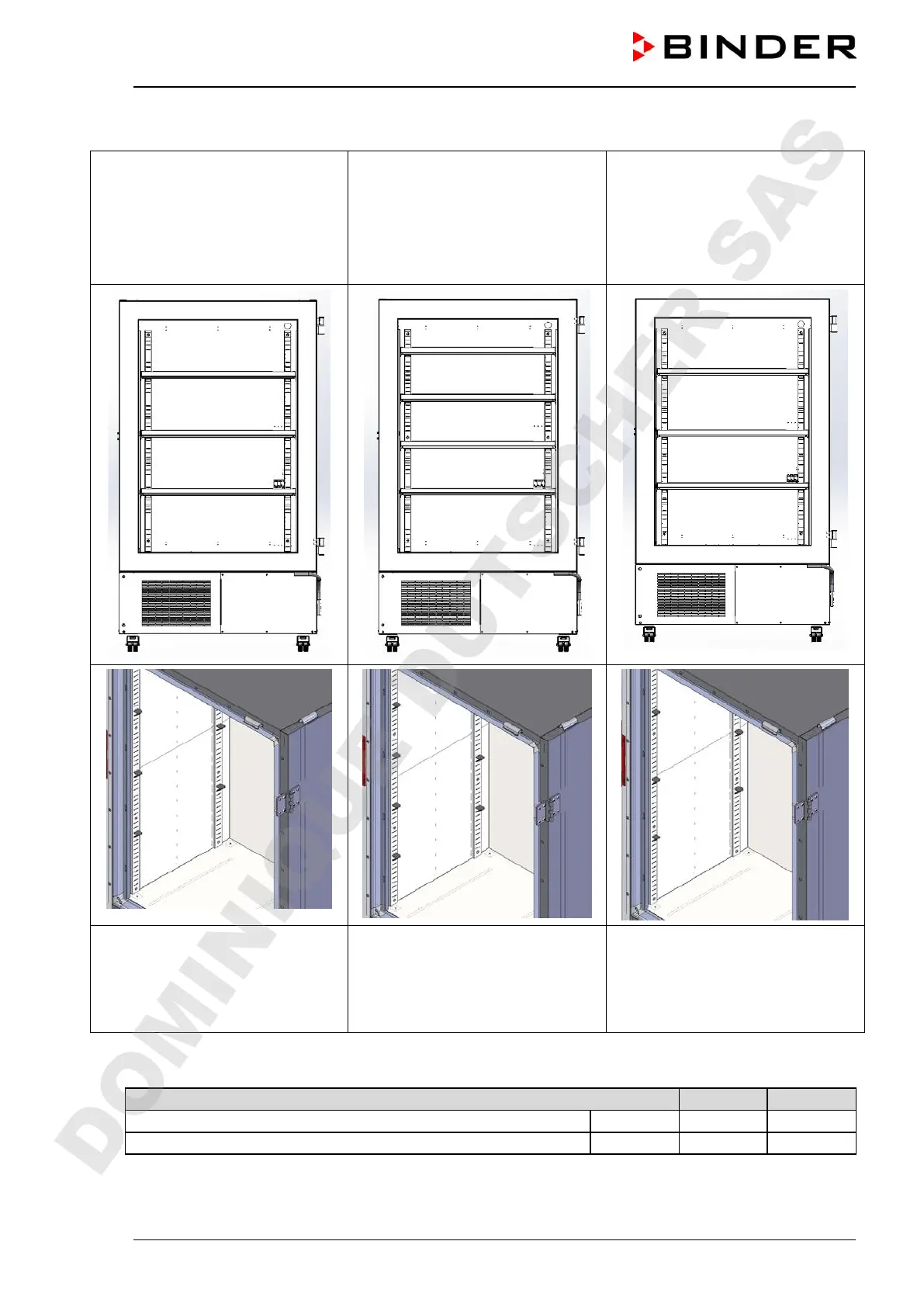

For optimal use of space, we recommend the following shelf positions:
Position of 3 shelves to obtain 4
compartments with equal ceiling
height
Position of 4 shelves (1 x optional)
to obtain 5 compartments with
equal ceiling height
Position of 3 shelves to obtain the
maximum sample storage space: 2
compartments with a ceiling height
of 334 mm / 13.15 in (for racks
4x6) and 2 compartments with a
ceiling height of 279 mm / 11 in (for
racks 4x4)
Insert the shelf holders into the
following positions of the shelf
holder bar (starting from the bot-
tom):
18, 35, 53
Insert the shelf holders into the
following positions of the shelf
holder bar (starting from the bot-
tom):
13, 29, 42, 58
Insert the shelf holders into the
following positions of the shelf
holder bar (starting from the bot-
tom):
21, 36, 53
Permitted shelf loads:
Chamber size 500 700
Permitted load of individual shelf (regular) kg / lbs 50 / 110 50 / 110
Permitted total load of all shelves (regular) kg / lbs 200 / 441 200 / 441
