Sample air is fed continuously to the particle counter monitoring unit via tubing
from the ISO-Kinetic cone. See Figure 15.
Pharmagraph enVigil-PnP logging software is supplied to output and record
results to a PC; the PC is not supplied by Bioquell. Up to 2 chambers can be run
from one software license. Refer to manufacturer’s instructions for use.
2.3.3.4 Level 4 Environmental Monitoring Package
The QUBE is optionally supplied with a proprietary integrated continuous particle
monitoring system with integrated vacuum pump. An ISO-kinetic cone is fitted to
the QUBE chamber. Pharmagraph enVigil-PnP logging software is supplied and
record results to a PC. The PC is not supplied by Bioquell.
An integral connector inside the chamber can be used to connect to an Active Air
Sampler (see Fig. 20, Item 2), and a coupler is provided (see Fig. 12) on the
QUBE’s right leg to enable connection to the air sampler’s power device. The
Active Air Sampler and power device and settle plates are not supplied by
Bioquell.

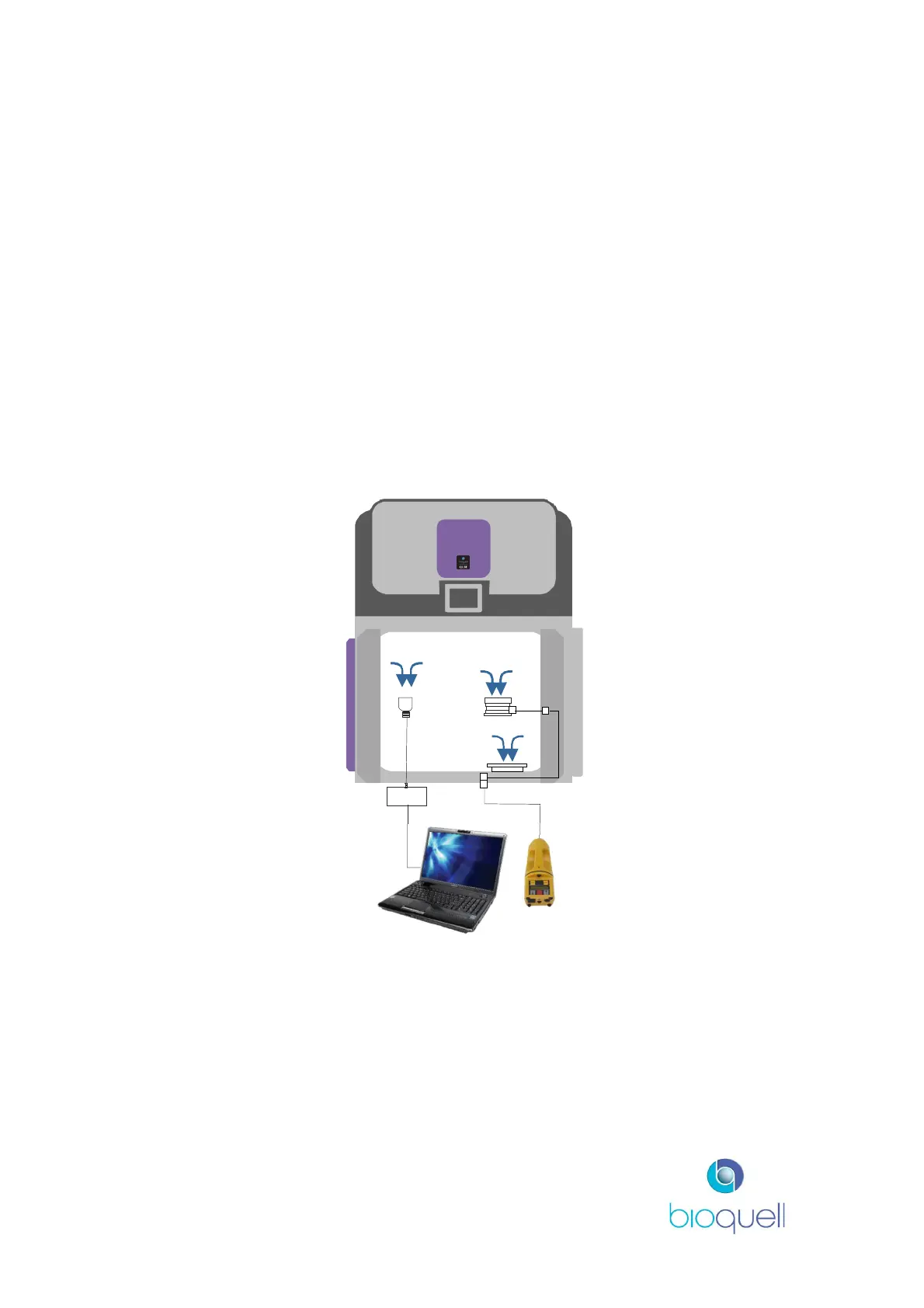

Figure 16: Level 4 Environmental Monitoring System
