USER MANUAL
TD069-O&M-001
REVISION 6
Page 19 of 80

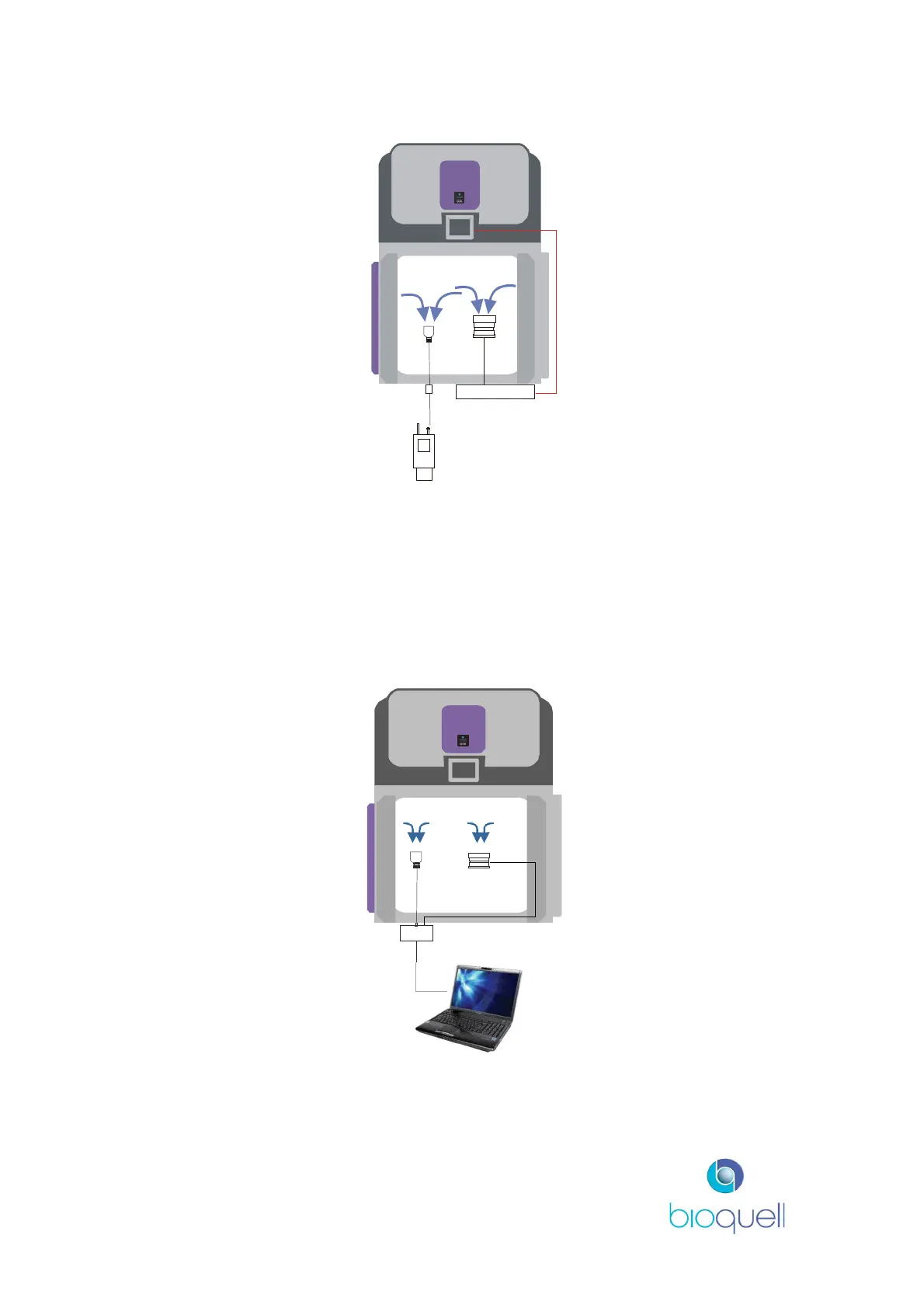

Figure 14: Level 2 Environmental Monitoring System Diagram
As Level 1, when particle monitoring is to be performed the blanking ISO-Kinetic
cone fitted to the QUBE should be replaced with the supplied ISO-Kinetic cone.
2.3.3.3 Level 3 Environmental Monitoring Package
The QUBE is optionally supplied with an Active Air Sampler and a proprietary
integrated continuous particle monitoring system with integrated vacuum pump.
An ISO-kinetic cone is fitted to the QUBE chamber.
Figure 15: Level 3 Environmental Monitoring System
