Connecting the Active Air Sampler

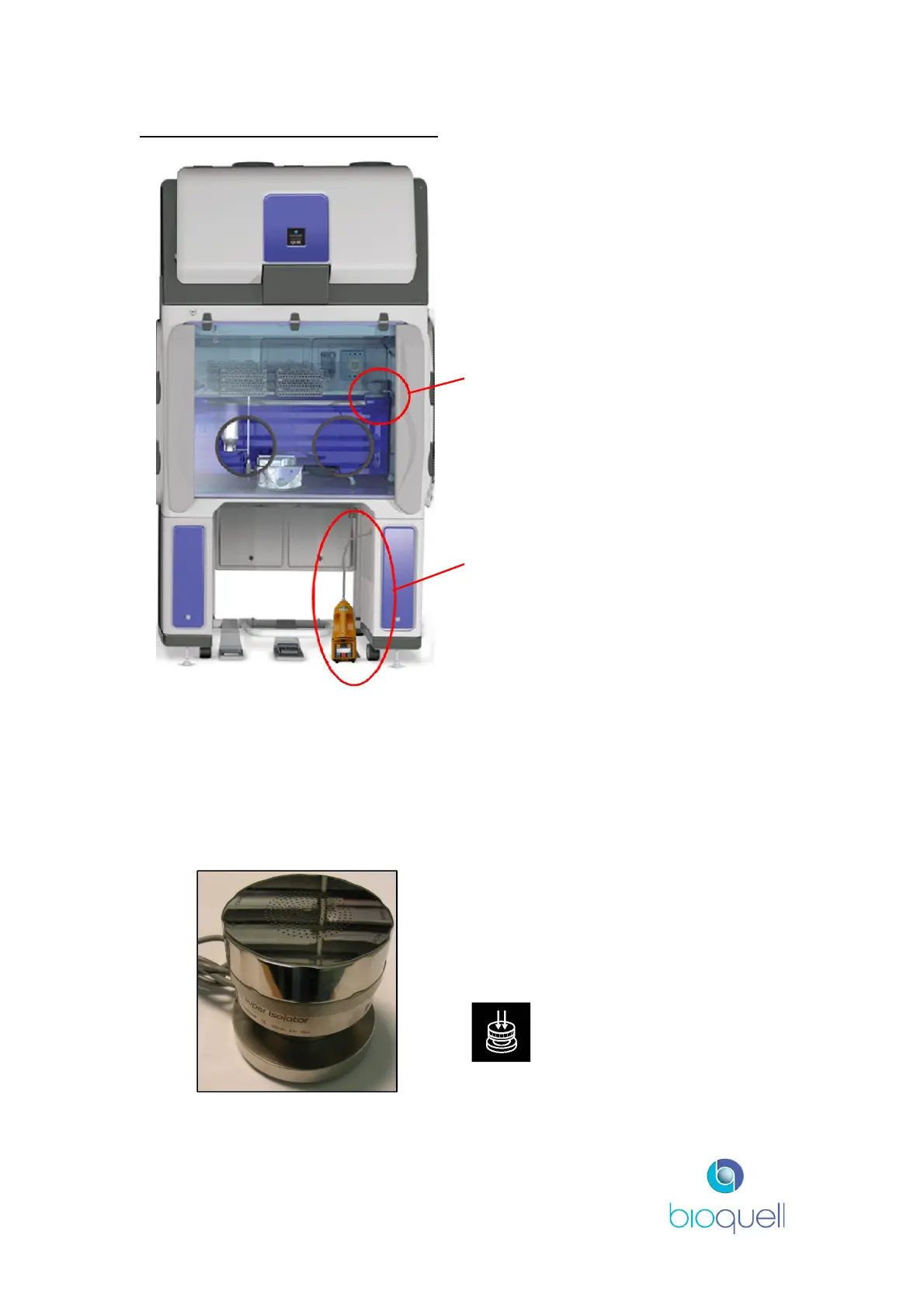

Figure 12: Connecting Active Air
Sampler
Active Air Sampler, location shown, is
plugged into the dedicated connector
within the chamber (refer to Fig. 21,
Item 2)
Keyed bulkhead coupler supplied on
QUBE right leg for attaching the
sampler’s power device.
2.3.3.2 Level 2 Environmental Monitoring Package
The QUBE QHPV and/or QEXT chambers are optionally supplied with an Active
Air Sampler (See Figure 13) to enable Level 2 Environmental Monitoring; the air
sampler is powered and controlled through the QUBE’s touch screen.
Figure 13: Active Air Sampler
The Active Air Sampler has a stainless
steel head. It is permanently placed
within the QUBE and attached through
a dedicated DC supply connector;
labelled thus:
