Bitmos sat801+ - 4.3 LCD display

sat801+ Pulse Oximeter
Assembly
16

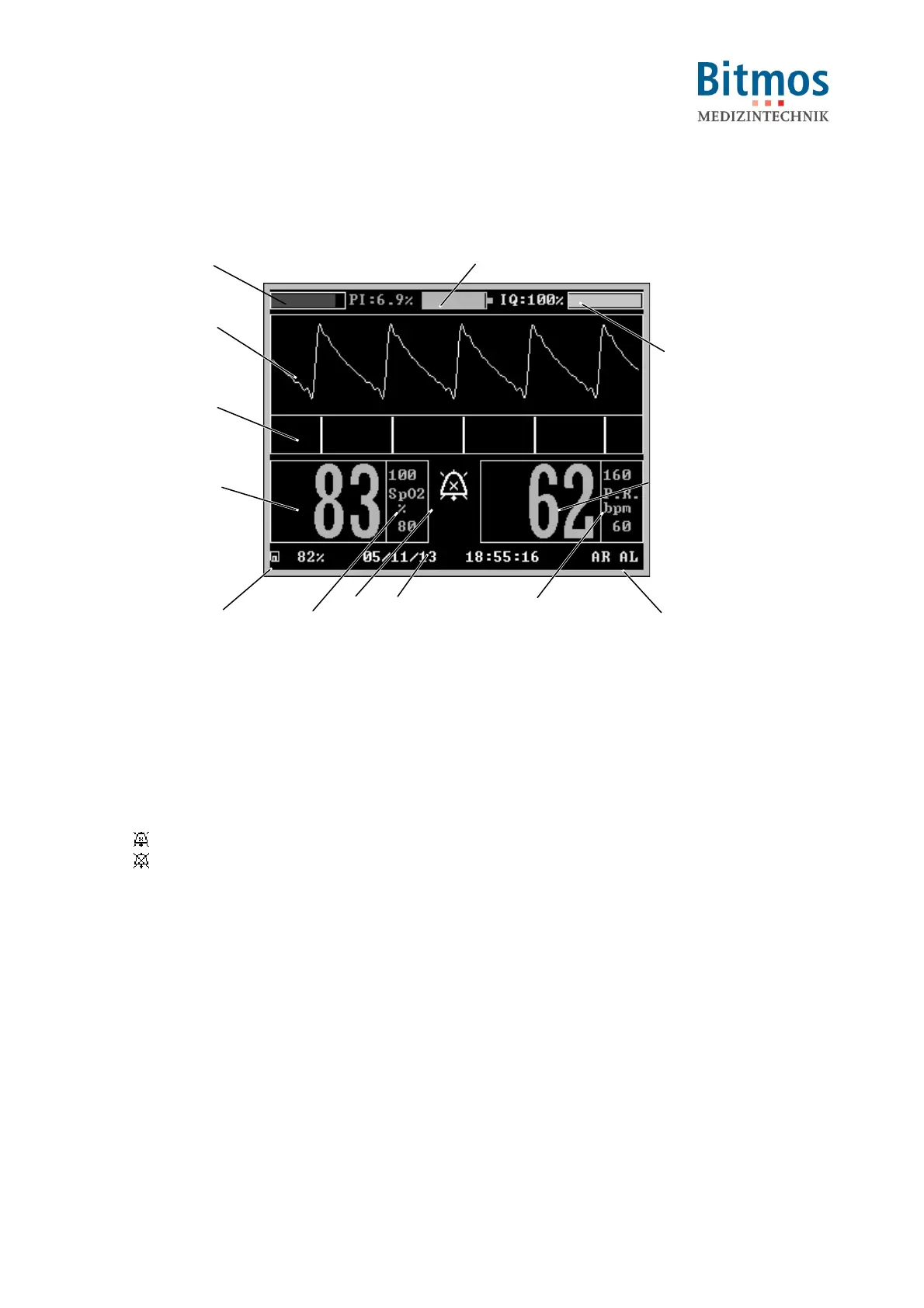

4.3 LCD display
1 Perfusion index,, graphical and numerical representation
2 Plethysmogram,
displays the actual and normalized pulse curve in standard display mode
3 Signal IQ – bouncing bar display,
displays graphically the current Signal-IQ-value; the Signal-IQ-value represents the signal
inadequacy display
4 Oxygen saturation in %
5 Data storage capacity in %
6 lower and upper oxygen saturation alarm limit
7 Alarm (tone) mute symbol
if the audio alerts are temporarily suppressed (Alarm paused)
if the audio alerts are switched off (Alarm off).
8 Status line:
Alarm messages, clock and other information parameters are displayed dependent on the
menu selection
9 lower and upper pulse rate alarm limit
10 AL symbol, displayed with activated ALarm filter and AR symbol for ARtifact filter
11 Pulse rate in beats per minute (1/min)
12 Signal IQ – bar graph display with numerical reading
13 battery capacity
1
2
3
4
5 8 10 9 6
11
12
1
13
7
