sat801+ Pulse Oximeter
Use
27

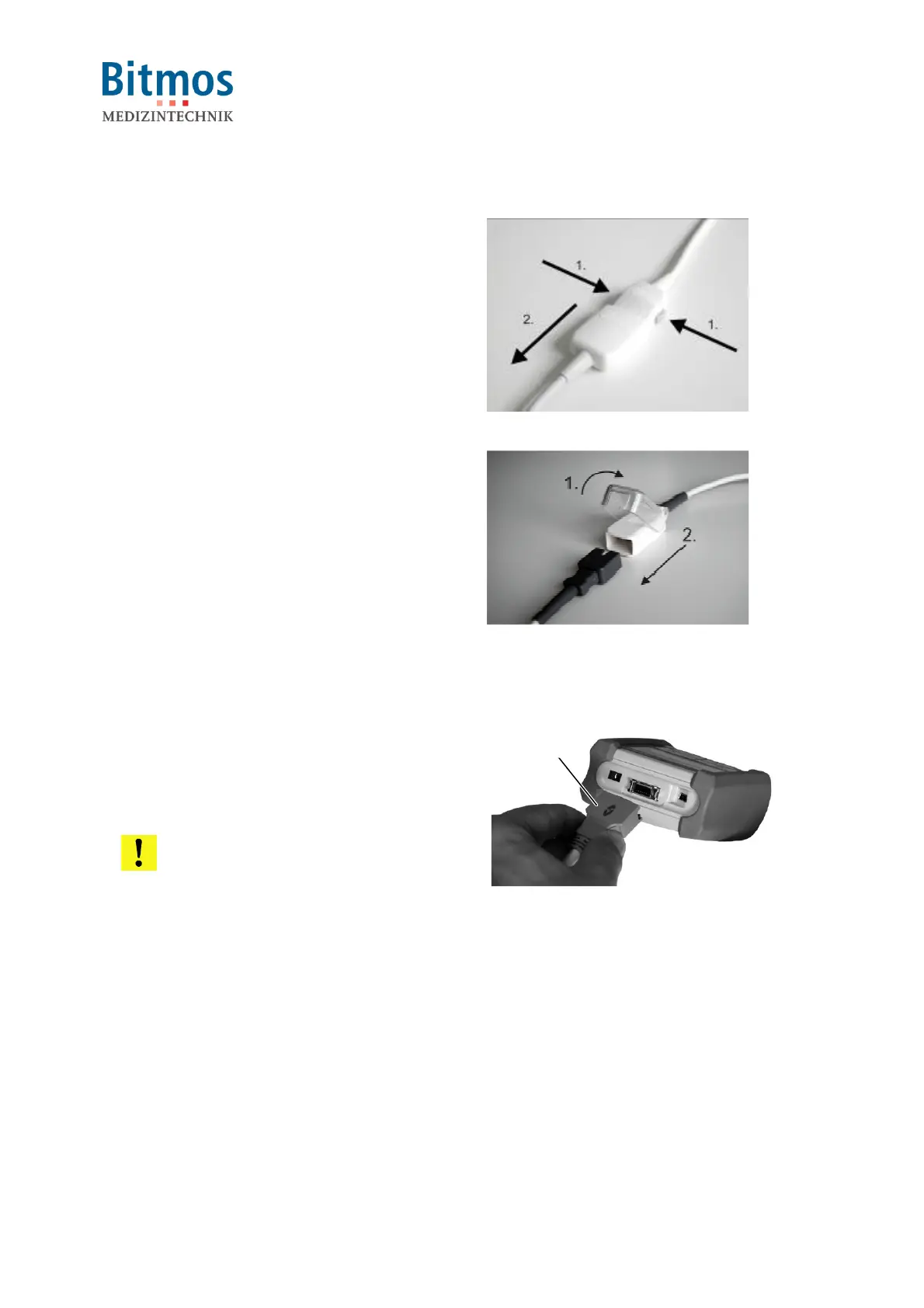

6.4.2 Disconnecting the sensor from the patient cable
LNOP sensors
1. Press the two disconnect buttons (1)
together.
The locking mechanism unlocks the
sensor plug.
2. Remove the plug from the coupling (2).
Fig. 17: LNOP sensor coupling
LNCS sensors
1. Lift the protective cover (1).
2. Pull firmly in the sensor connector to
remove from the patient cable (2).
Fig. 18: LNCS sensor coupling
6.4.3 Disconnecting the patient cable from the unit
1. Press the two disconnect buttons (1) at
the patient cable socket together.
The locking mechanism unlocks the
patient cable.
2. Remove the connector.
ATTENTION!
Do not apply pressure when removing
the plug. It could be damaged.
1
Fig. 19: Patient plug coupling
