1 IR TX - (IR output) - 3.5mm mono jack – Routed IR to current selected IP100UHD-TX (Source Transmitter). Use
supplied Blustream 5V IR emitters
2 IR RX (IR input) – 3.5mm stereo jack. Transmits IR to currently selected IP100UHD-TX transmitter allowing routed
IR control of sources. Please use supplied Blustream IRR 5V IR Receiver. When using the Blustream IRCAB cable
(optional) ensure cable direction is correct
3 Assignable bi-directional RS-232 port – Connect to third party control device to extend RS-232 commands to any/
multiple IP100UHD Multicast product RS-232 port
4 Channel select UP/Down - Used to scroll through sources (IP100UHD-TX), setup IP100UHD-RX manually and apply
‘Programming mode’
5 Channel status window - Displays product information
6 Reset button - Press and hold for 5 seconds to factory reset the product
7 Power LED indicator
8 Link LED indicator - Solid status light indicates a stable connection to the network switch
9 HDMI output – Connect to a HDMI display
q L/R Analogue audio line output - Used to breakout Analogue audio from HDMI signal
NOTE: Source input must be PCM 2ch audio for analogue audio outputs to work. The Multicast products do not
down-mix 5.1ch audio signals
Audio outputs are fixed line level output
w Power port – Use 24-56V 1A DC adaptor (sold separately) if not using a PoE network switch

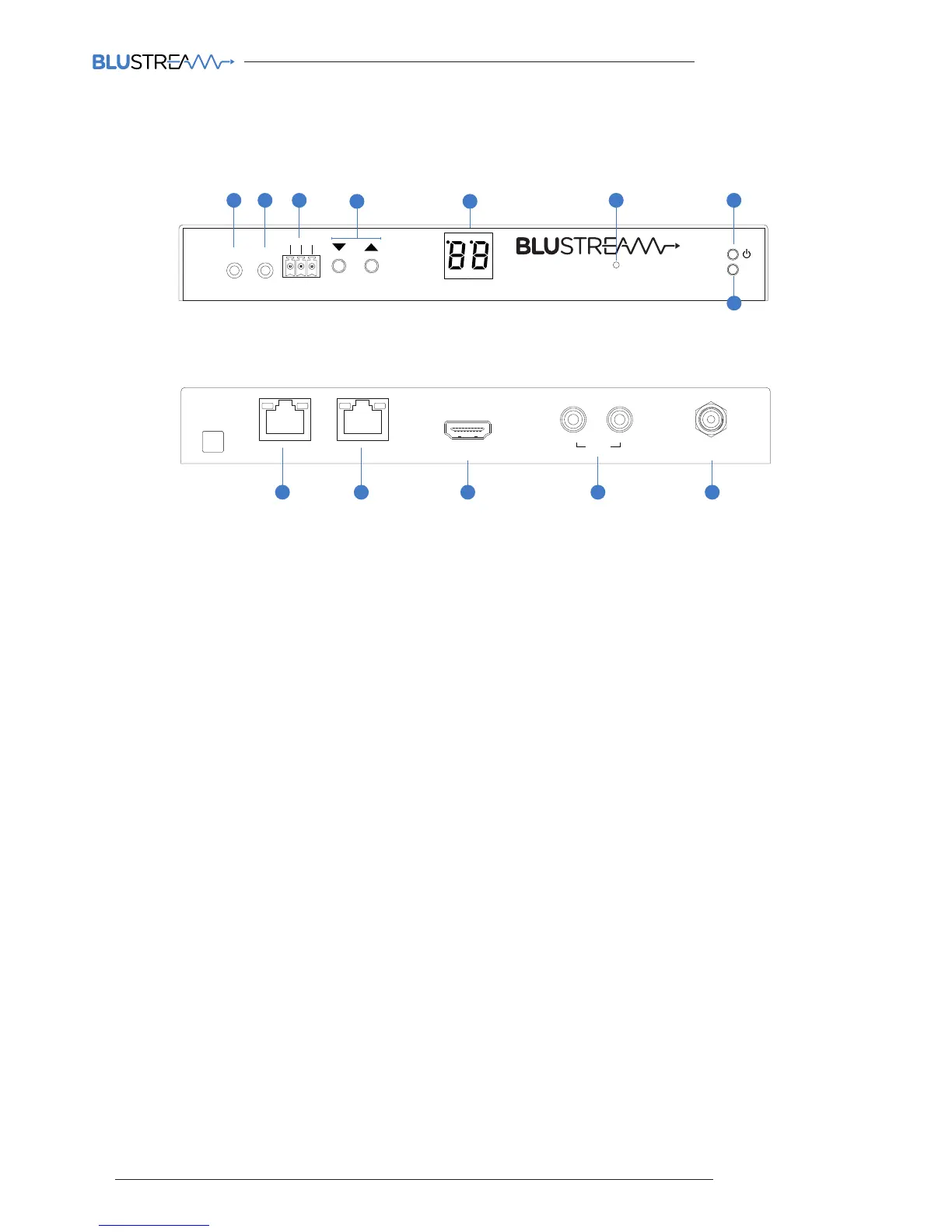

IP100UHD-RX Rear Panel
Panel Description - IP100UHD-RX Receiver
