72 en | Connecting readers and doors BIS 2.3 - Access Engine
F.01U.028.713 | V 2.3.0.1 | 2009.11 Installation manual Bosch Sicherheitssysteme GmbH
8.2.2 Installation documentation
If the devices are installed first, however, which will normally
be the case, the wiring carried out must be documented and

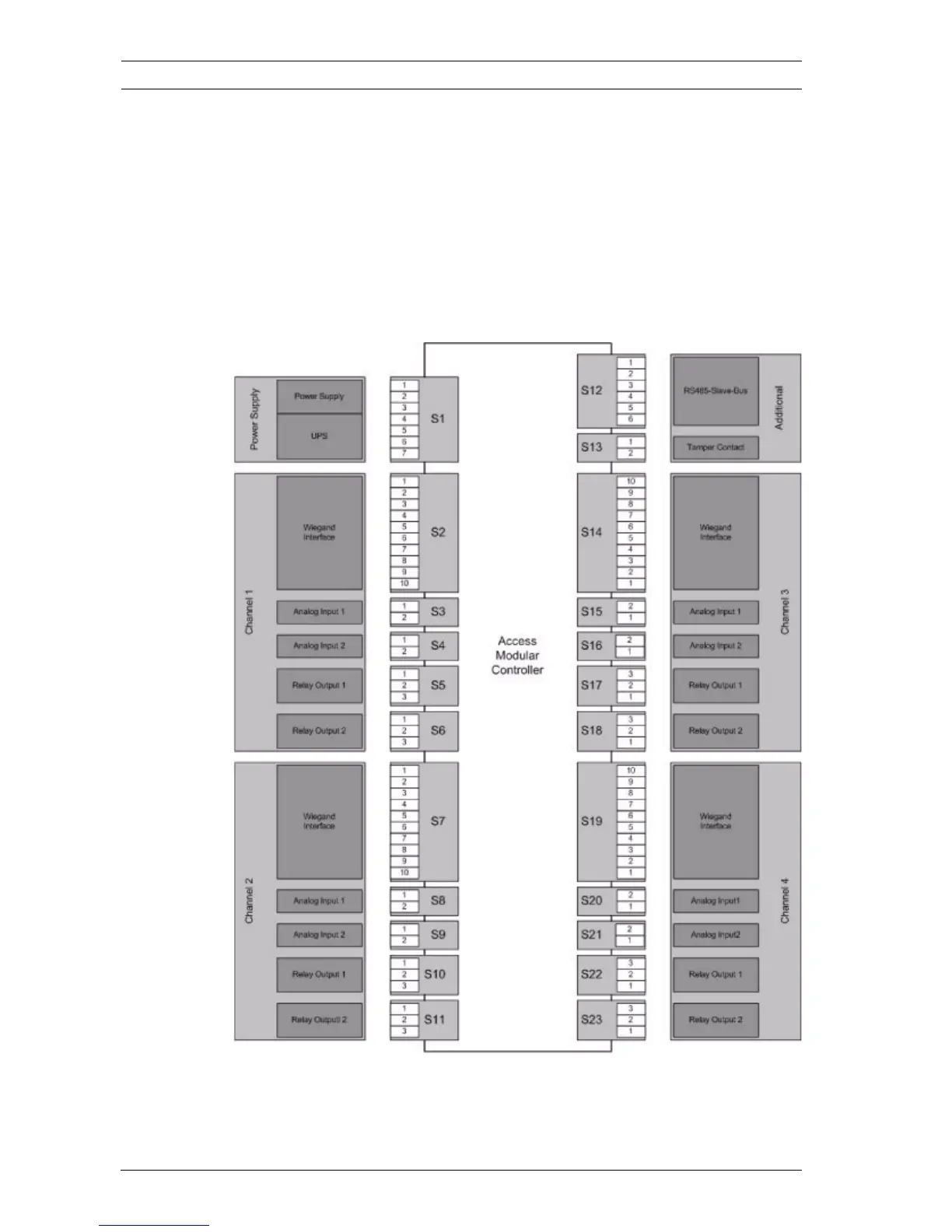

communicated to the system configurator. The following plan
can be used for the declaration of the selected interfaces - use
the S-identifications, which uniquely identify the connectors.
