Channels for display
To display segment times use the following channels:
Channel Function
Laptrigger_lapdiff Time difference between finished lap and last lap
Laptrigger_lapdiffb Time difference between finished lap and best lap
Laptrigger_lapseg_dlast Difference of lap segment time compared to last lap
Laptrigger_lapseg_dbest Difference of lap segment time compared to best lap

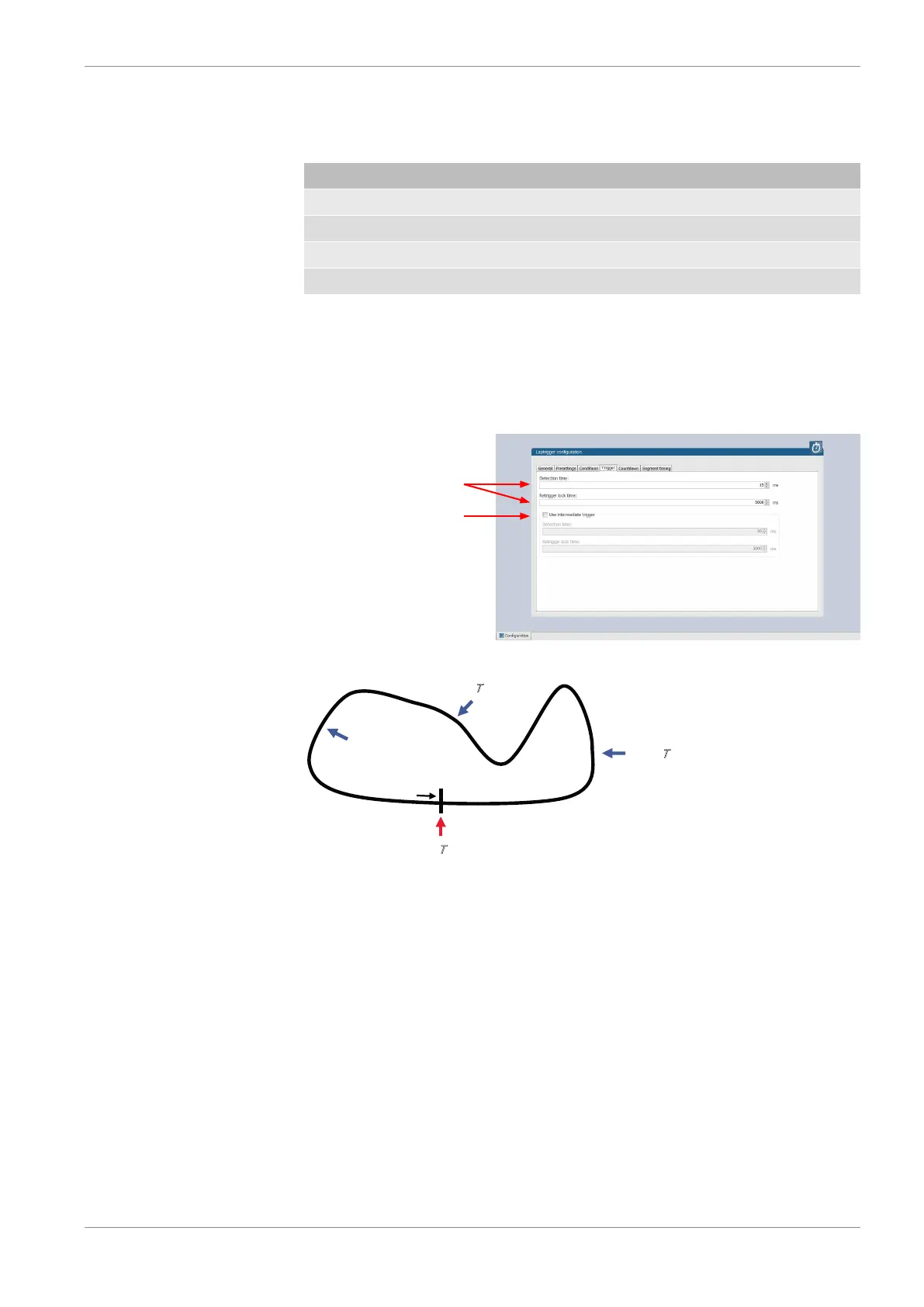

17.4.1 Sub trigger mode
Using main trigger (20 ms pulse) at Start-Finish-Line. 3 sub triggers (40 ms pulse) posi-
tioned at 1,000 m, 2,000 m and 3,000 m.
To deactivate sub trigger mode uncheck box.
Define settings for lap timing
(main trigger).
Define settings for sub trigger.
Not applicable with a GPS lap trigger.
Main Trigger
Sub
Trigger
Sub Trigger
Sub Trigger
The sub trigger mode cannot be used with the GPS lap trigger.
17.4.2 Distance mode
Using main trigger (20 ms pulse) at Start-Finish-Line.
Set ‘Mode’ to ‘Distance’ and enter desired segment distances.
Segment time is automatically calculated at each segment. Time difference to last lap and
fastest lap is automatically calculated at each segment.
To deactivate distance mode set ‘Mode’ to ‘None’.

Bosch C 80 Specifications

General

Resolution	16 bit
Interfaces	USB
Measurement Range	±10V
Accuracy	±0.1 % FS
Channels	8 universal analog inputs (±10 V, ±20 mA, Pt100, Pt1000, Thermocouples type K, S, J, T, N, R, B, E), 4 digital inputs (trigger, counter, frequency), 2 digital outputs (24 V / 500 mA)
