8 | First Steps
18/144 Manual_C_80 Bosch Motorsport

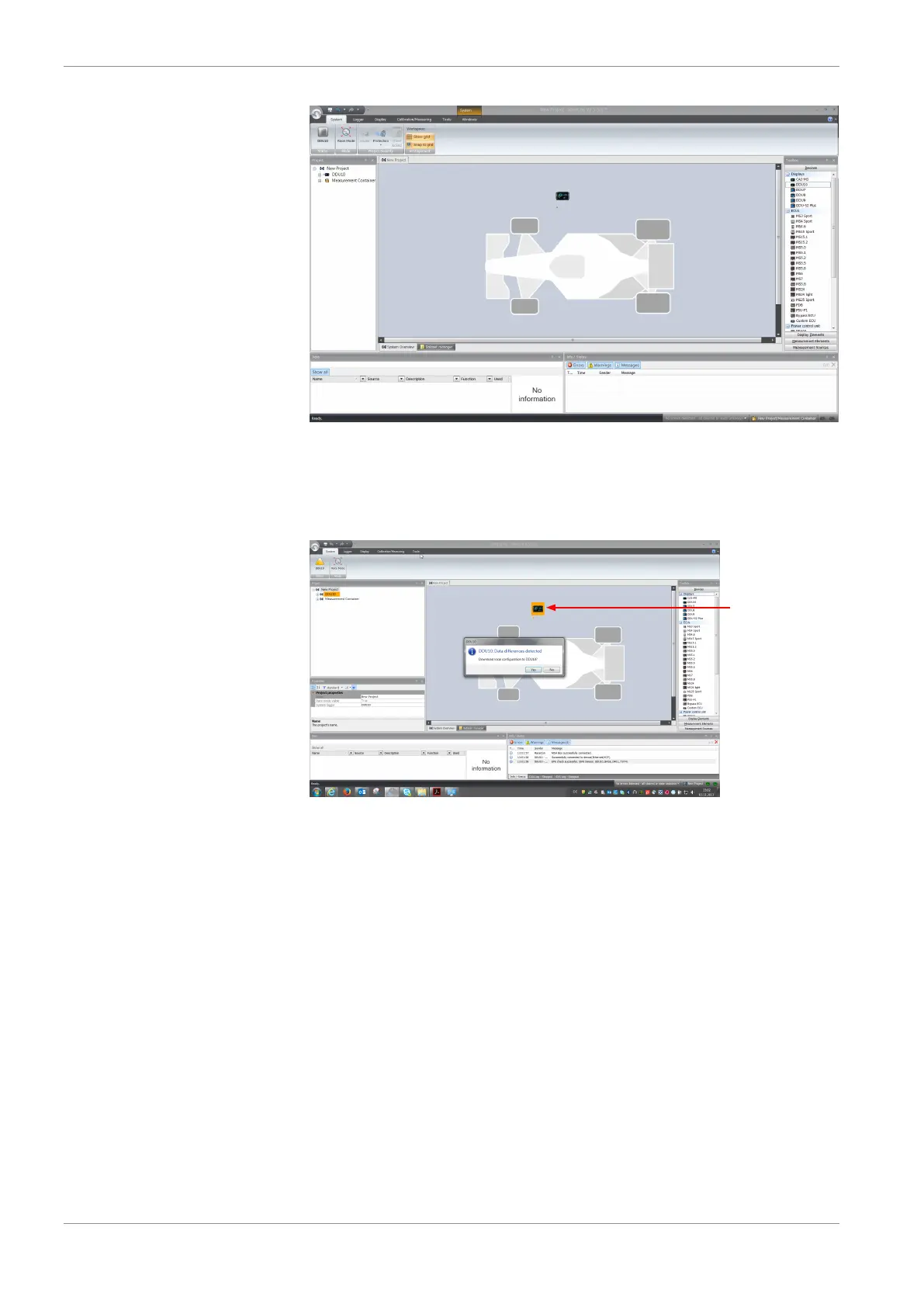

RaceCon detects configuration differences between the C 80 and the RaceCon project
and asks for permission for data download.
8. Click ‘Yes’ to download the configurations to the device or ‘No’ to continue without
downloading the data.
Successful ethernet
connection, Device
"talks" to PC.
If the device turns red, you might need to do a firmware update on the device. For
more information see chapter “Firmware update [}124]”.
The download starts and the C 80 carries out a reset.

Bosch C 80 Specifications

General

Resolution	16 bit
Interfaces	USB
Measurement Range	±10V
Accuracy	±0.1 % FS
Channels	8 universal analog inputs (±10 V, ±20 mA, Pt100, Pt1000, Thermocouples type K, S, J, T, N, R, B, E), 4 digital inputs (trigger, counter, frequency), 2 digital outputs (24 V / 500 mA)
