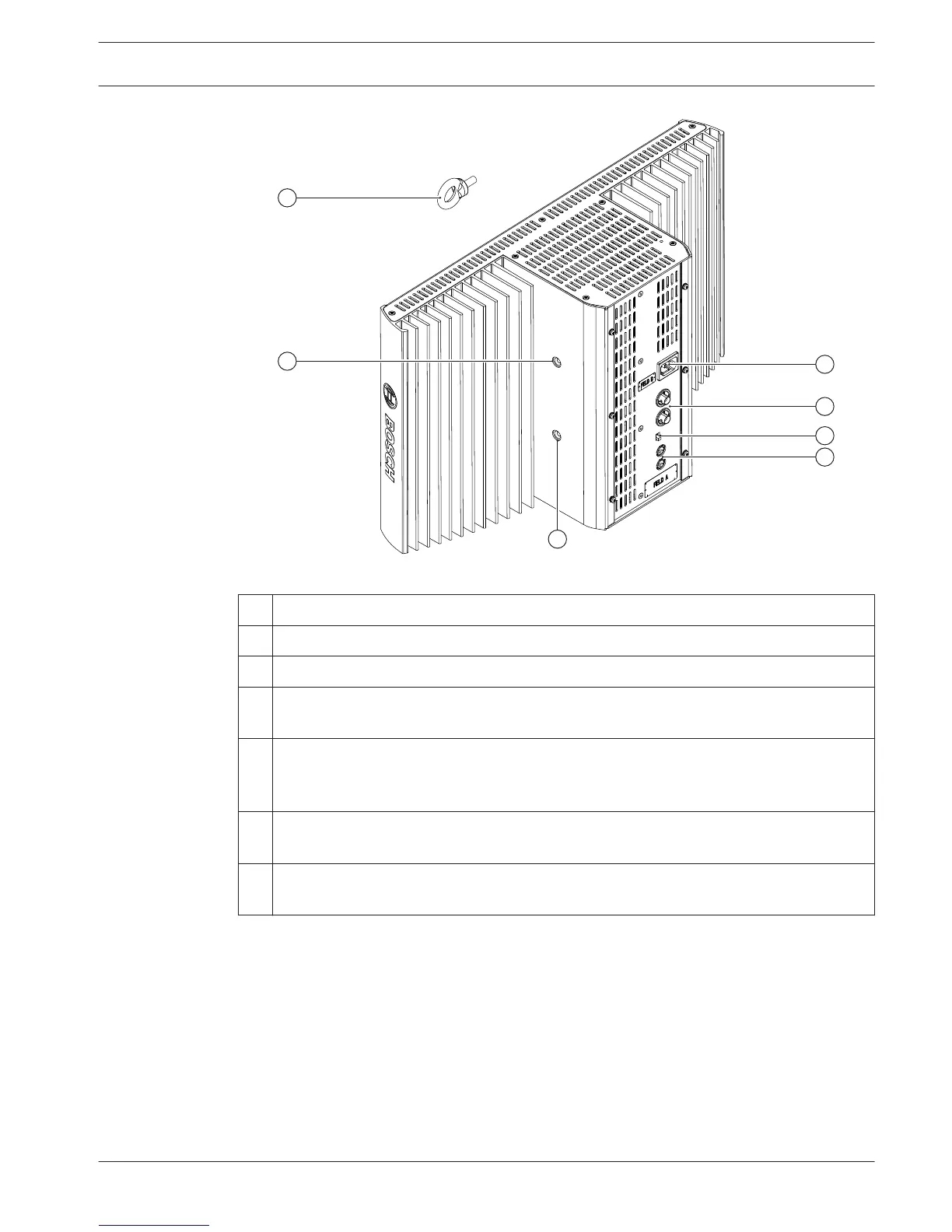

Figure 3.5: LBB 4512/00 Radiator (Side and rear view)
1
Safety eye - To mount a safety cord for extra security.
2 Safety eye hole - Tapped hole to mount the safety eye.
3 Bracket hole - Tapped hole to mount the suspension bracket.
4 Mains input - Male Euro mains connector. The radiators have automatic mains voltage
selection.
5 IR signal input/loop-through - Two HF BNC connectors for connecting the radiator to
the transmitter and for loop-through connection to other radiators. Automatic cable
termination is achieved by a built-in switch in the BNC connectors.
6 Output power selection switch - The radiators can be switched between full- and half-
power operation.
7 Delay compensation switches - Two 10-position switches to compensate for
differences in cable lengths to the radiators.
Language Distribution System System Overview | en 15
Bosch Security Systems B.V. Operation manual 2013.11 | V1.4 |
