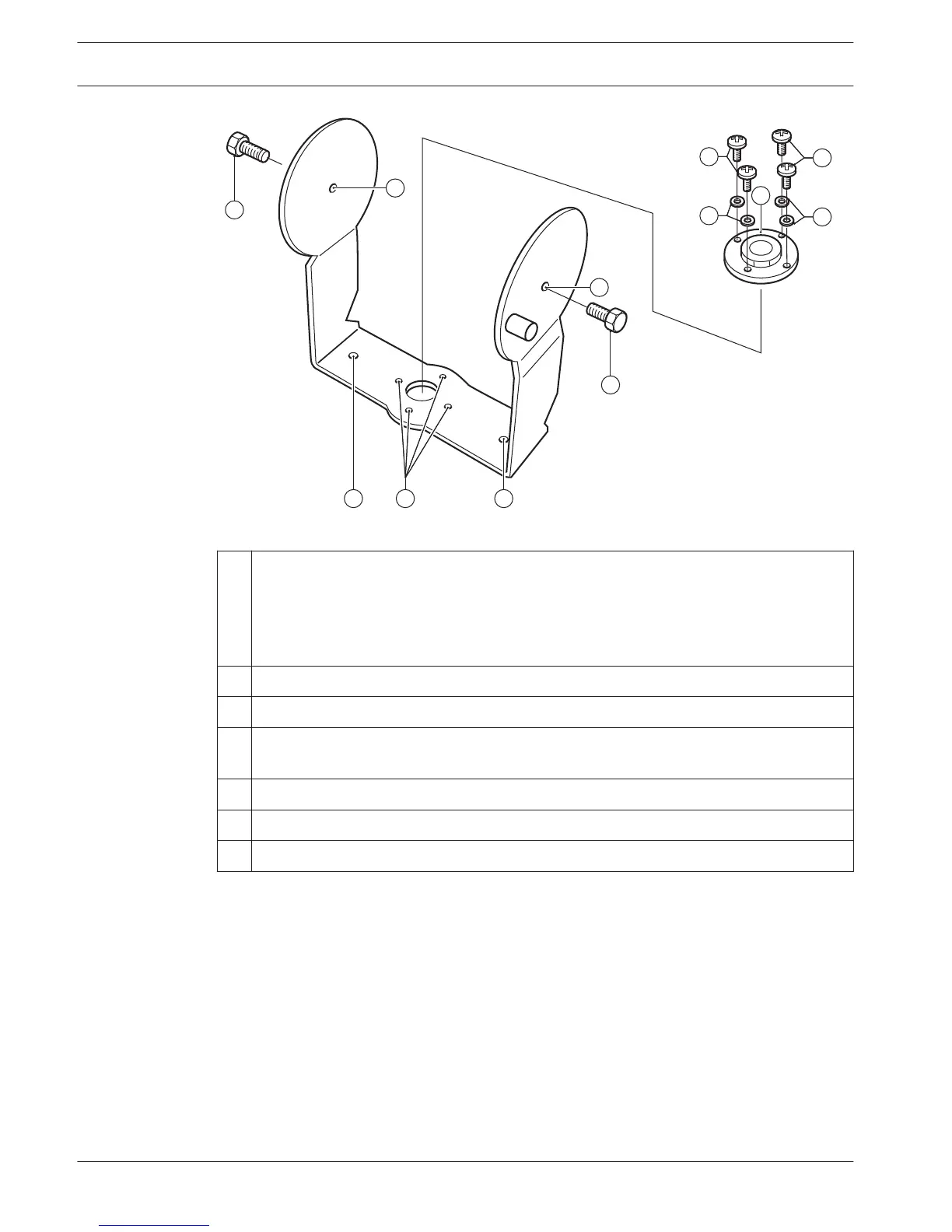

Figure 3.6: Suspension bracket and mounting plate of LBB 4511/00 and LBB 4512/00 Radiators
1
Mounting plate - Accessory plate to be used in case of mounting on a floor stand or
wall mounting.
Depending on the way of mounting, the mounting plate can be mounted at either one or
the other side of the bracket (see section Attach mounting plate to the suspension
bracket, page 36).
2 Mounting plate hole - Tapped holes to mount the mounting plate.
3 Radiator hole - Holes for bolts.
4 Mounting hole - Holes for screws to mount the bracket to the ceiling or on horizontal
surfaces.
5 Bolt - Bolt to mount the suspension bracket to the radiator.
6 Screw - Screw to mount the mounting plate to the suspension bracket.
7 Washer
The following sections give more information about the mentioned subject:
– Installation: Medium and High Power Radiators, page 35
– Configuration: Integrus Radiators, page 59
– Operation: Integrus Radiators, page 69
16
en | System Overview Language Distribution System
2013.11 | V1.4 | Operation manual Bosch Security Systems B.V.
