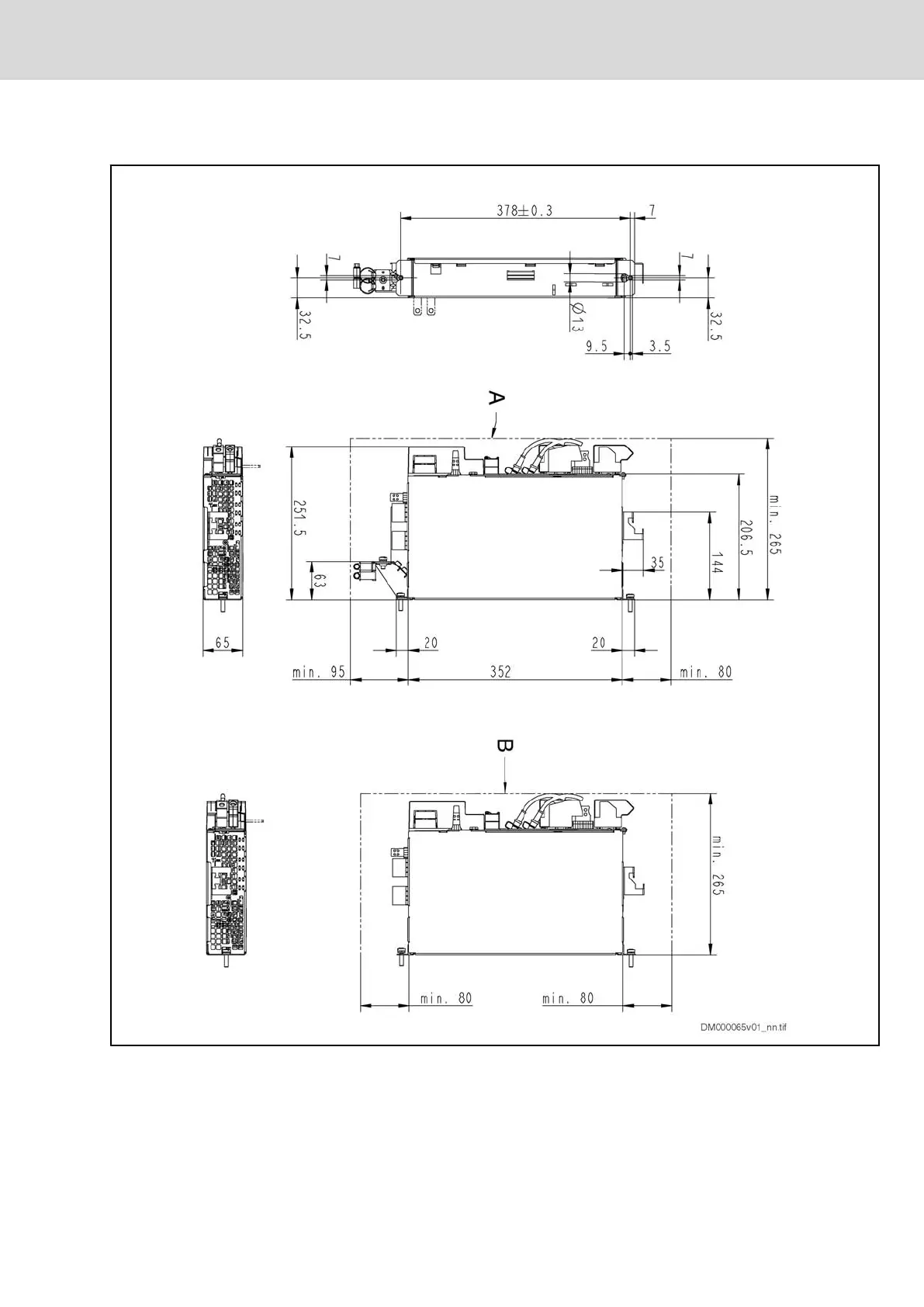

Dimensional drawing HCS02.1E-W0028
A minimum mounting clearance (when using accessory HAS02.1); plus
additional space for cable
B minimum mounting clearance; plus additional space for cable
Fig.5-16: Dimensional drawing HCS02.1E-W0028
Project Planning Manual | Rexroth IndraDrive Electric Drives
and Controls
| Bosch Rexroth AG 37/369
Power Sections for Converters - IndraDrive C
