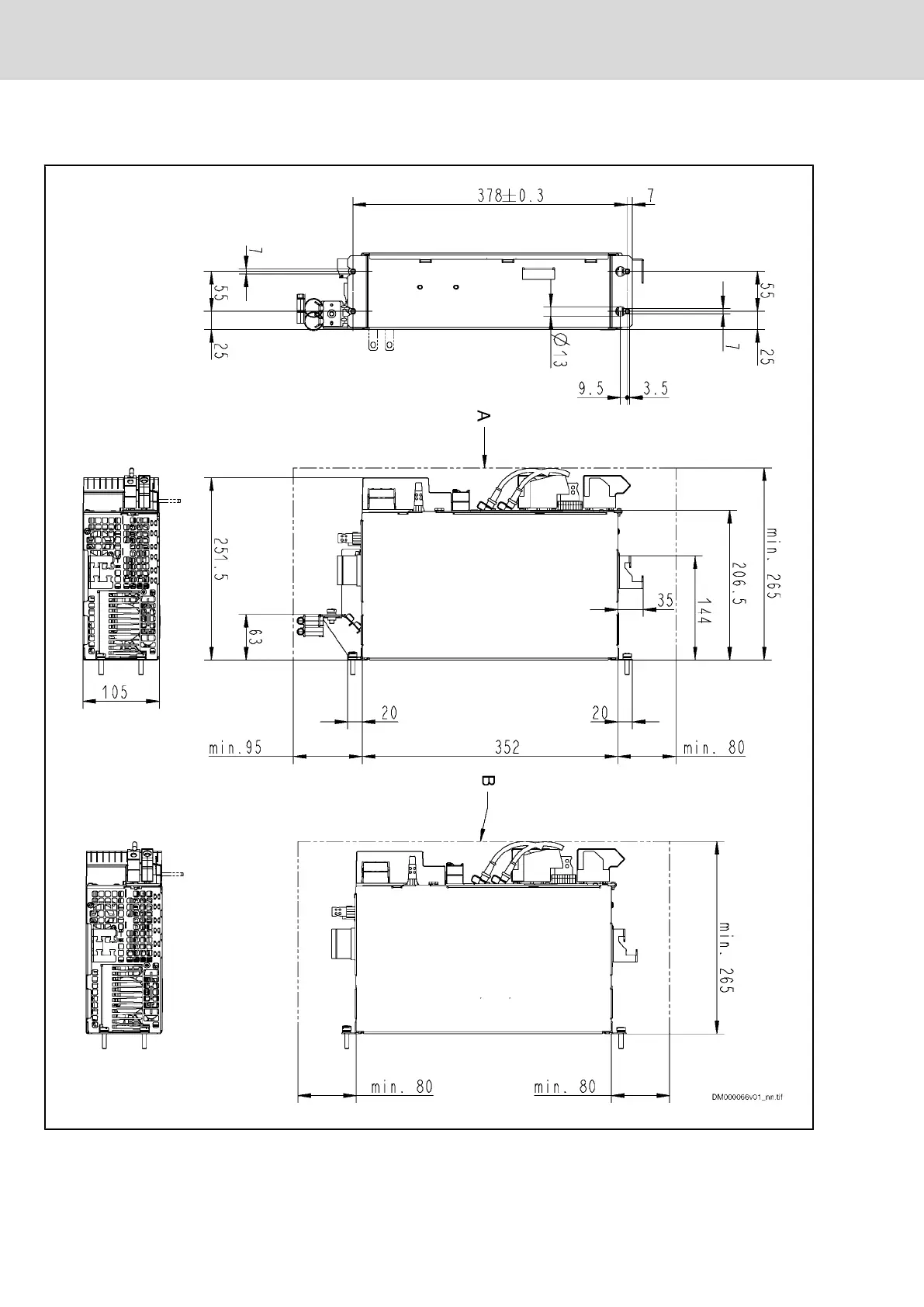

Dimensional drawing HCS02.1E-W0054/70
A minimum mounting clearance (when using accessory HAS02.1); plus
additional space for cable
B minimum mounting clearance; plus additional space for cable
Fig.5-17: Dimensional drawing HCS02.1E-W0054 and HCS02.1E-W0070
38/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
Power Sections for Converters - IndraDrive C
