XD10, 24 V supply (control voltage)
Function, pin assignment
Via the connection point, the 24 V supply is applied externally for
● the control section and power section of the drive controller
● the brake control
● the digital inputs and the digital output

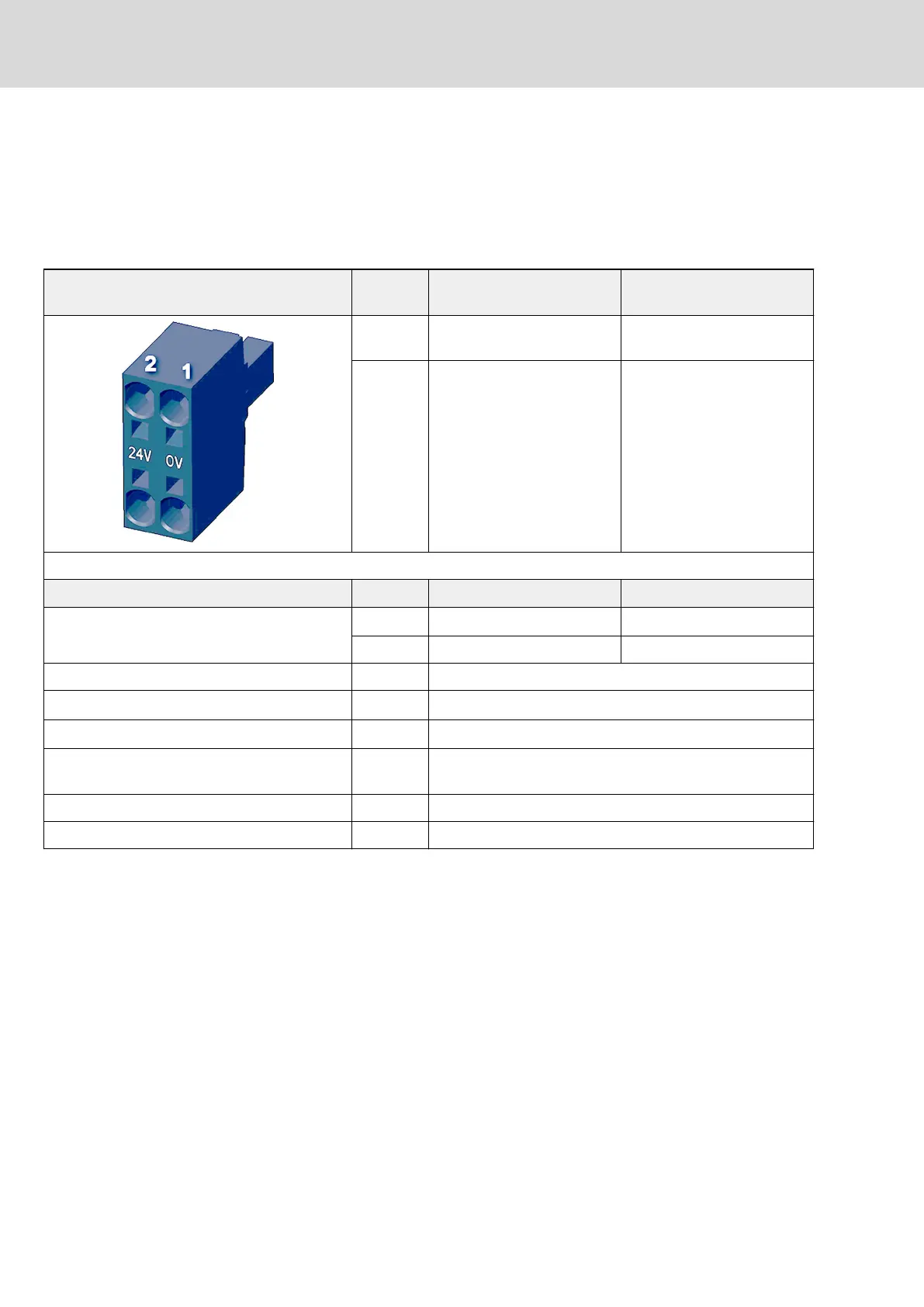

View Connectio
n
Signal name Function
1 0V Reference potential for
power supply
2 +24V Power supply
Screw connection at connector Unit min. max.
Connection cable
Stranded wire
mm
2
0.2 6
AWG 24 8
Stripped length mm 10
Power consumption W P
N3
(see control voltage data)
Voltage load capacity V U
N3
(see control voltage data)
Current carrying capacity "looping through" from
0V to 0V, 24V to 24V
A 41
Polarity reversal protection Within the allowed voltage range by internal protective diode
Insulation monitoring Possible
Tab. 10-16: Function, pin assignment, properties
Notes on installation
Requirements on the connection to the 24 V supply:
● Minimum cross-section: 1 mm
2
● Maximum allowed inductance: 100 µH (2 twisted single strands, 75 m
long)
● Parallel line routing where possible
Depending on the power consumption of the devices and the current carrying
capacity of the connector, check the number of devices through which one
line for 24 V supply can be looped through. You might possibly have to
connect another device directly to the 24 V supply and then loop through the
control voltage from this device to other devices.
