10.2.3 XMQ1

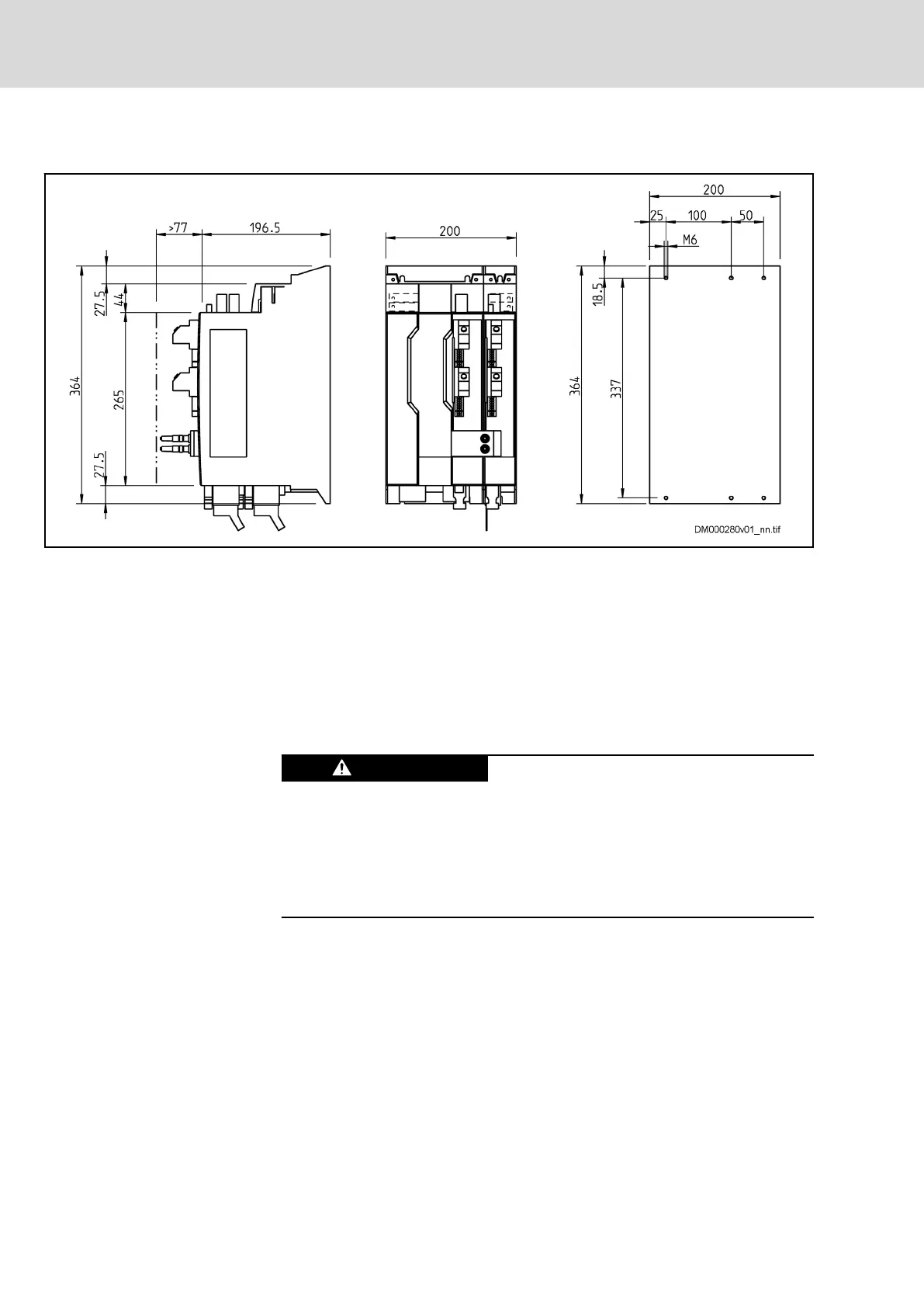

Fig. 10-6: Dimensional drawing XMQ1-WQ001
10.3 Mounting
Observe the minimum distances specified in the dimensional drawings. See
chapter 10.2 "Housing dimensions" on page 50.
10.4 Dismounting
10.4.1 Dismounting steps
Lethal electric shock by live parts with more
than 50 V!
Before working on live parts: De-energize installation and secure power
switch against unintentional or unauthorized re-energization.
Wait at least 30 minutes after switching off the supply voltages to allow
discharging.
Check whether voltage has fallen below 50 V before touching live parts!
Observe the discharge time before you start dismounting the device.
52/123
Mounting, dismounting and electrical installation
IndraDrive X Drive Controllers Power Sections XCS1, XMD1,
XMQ1
Bosch Rexroth AG R911392532_Edition 01
