XF21 P1, XF22 P2, communication (RJ-45)
Description
The connection point complies with IEEE 802.3 standard.
P1, P2
P1 means "Port 1" and P2 means "Port 2". Thereby, the error counter of the
firmware can be directly assigned to a Port.
Connection
Sercos:
● Input: arbitrary
● Output: arbitrary
EtherCAT:
● Input: XF21 P1
● Output: XF22 P2

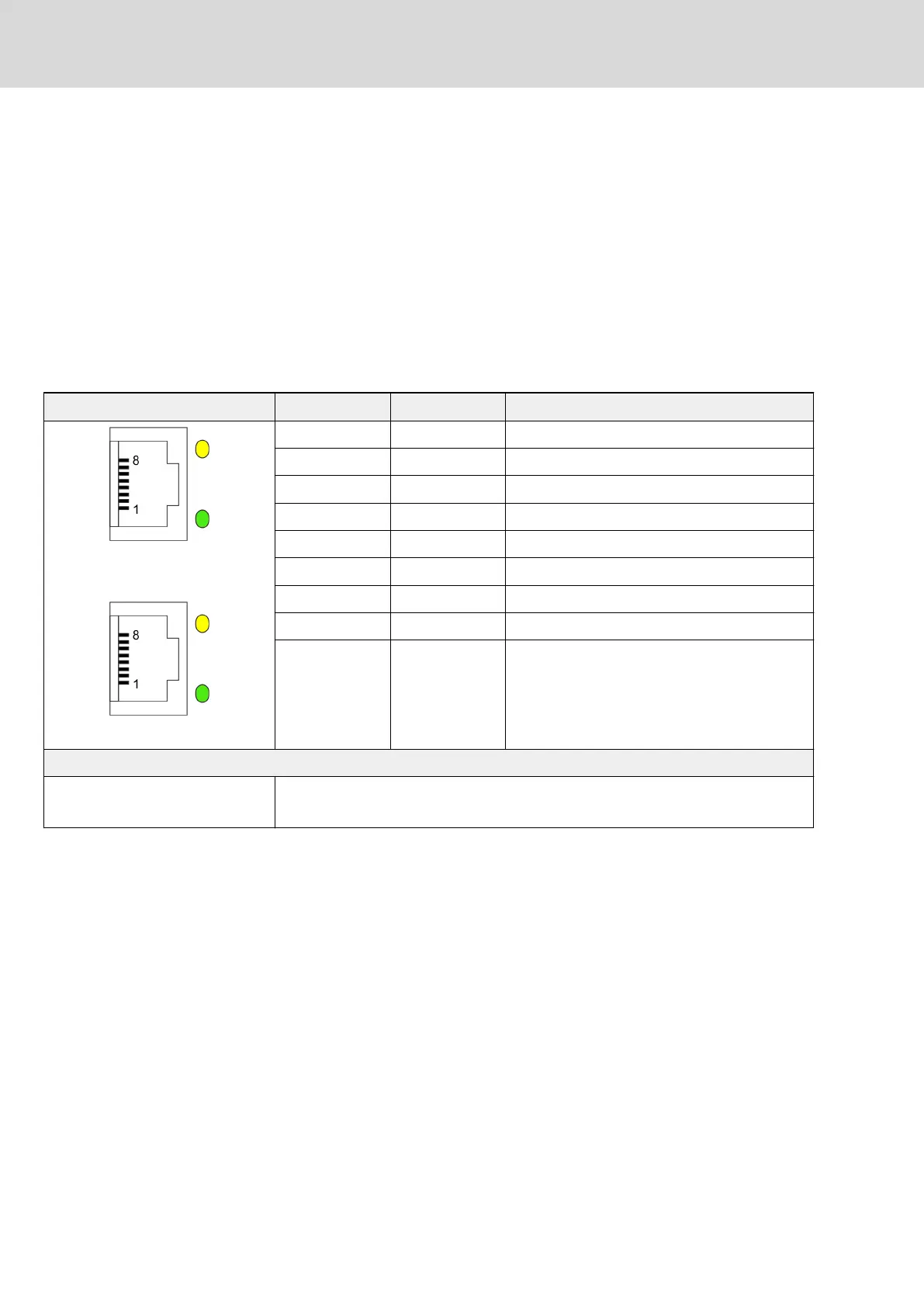

View Connection Signal name Function
XF22 P2
XF21 P1
8 n. c. -
7 n. c. -
6 RD- Receive, Differential Input -
5 n. c. -
4 n. c. -
3 RD+ Receive, Differential Input +
2 TD- Transmit, Differential Output -
1 TD+ Transmit, Differential Output +
Housing Shield connection
Properties
Standard ● Ethernet
● Type: RJ-45, 8-pin
92/123
Mounting, dismounting and electrical installation
IndraDrive X Drive Controllers Power Sections XCS1, XMD1,
XMQ1
Bosch Rexroth AG R911392532_Edition 01
