Port LED
EtherCAT

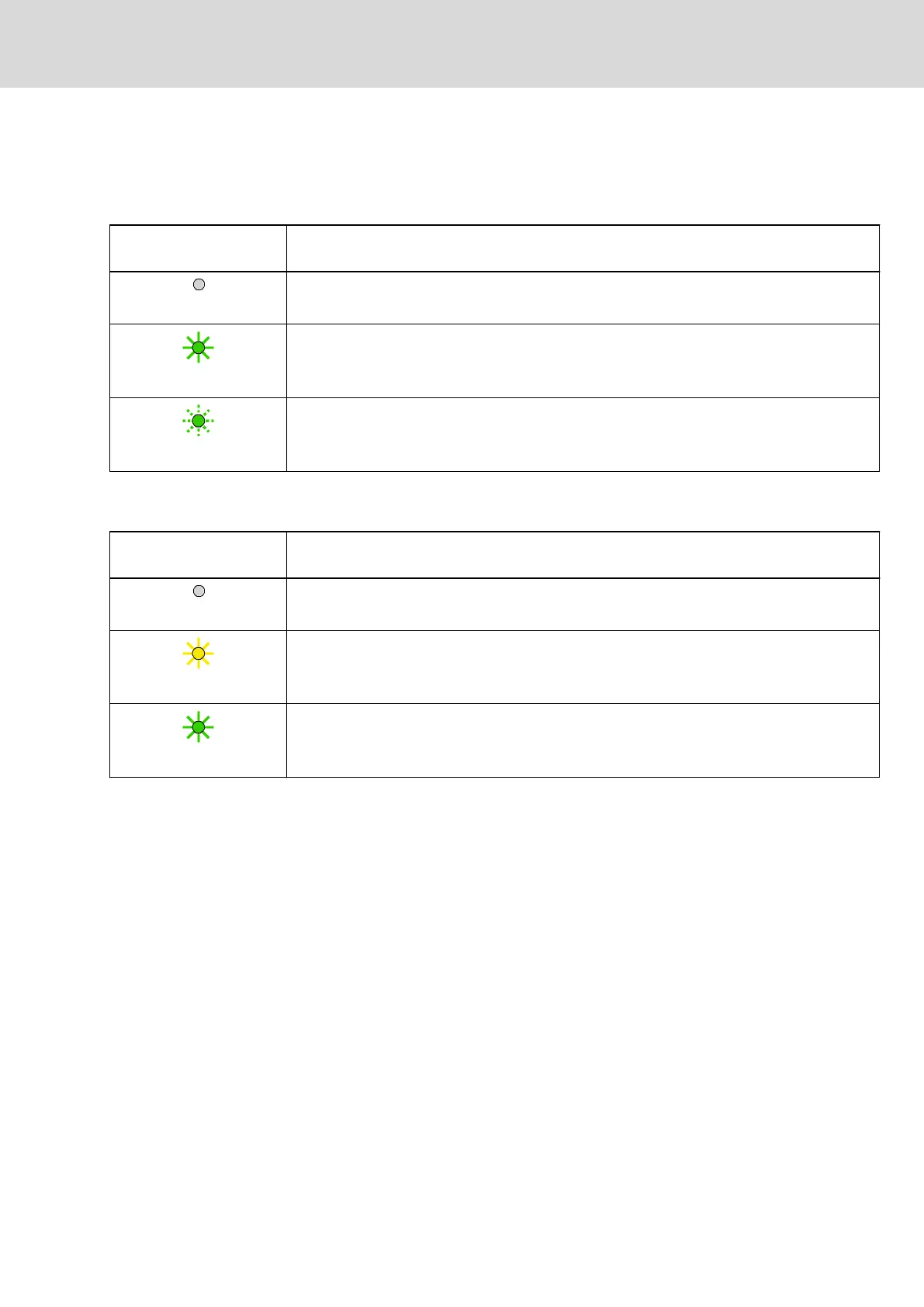

EtherCAT has only one active LED per port.
LED: Color / flashing
pattern
Significance
Off
No connection
Permanently lit green
Connection to network available, but no telegram exchange (EtherCAT bus inactive)
Flashing green
Connection to network available with telegram exchange (EtherCAT bus active)
Tab. 12-7: Port LED
Sercos
LED: Color / flashing
pattern
Significance
Off
No connection
No data transmission
Permanently lit yellow
Data transmission running
Permanently lit green
Connection to network available
Tab. 12-8: Port LED
