Bosch Rexroth IndraDrive X - Overcurrent Protection

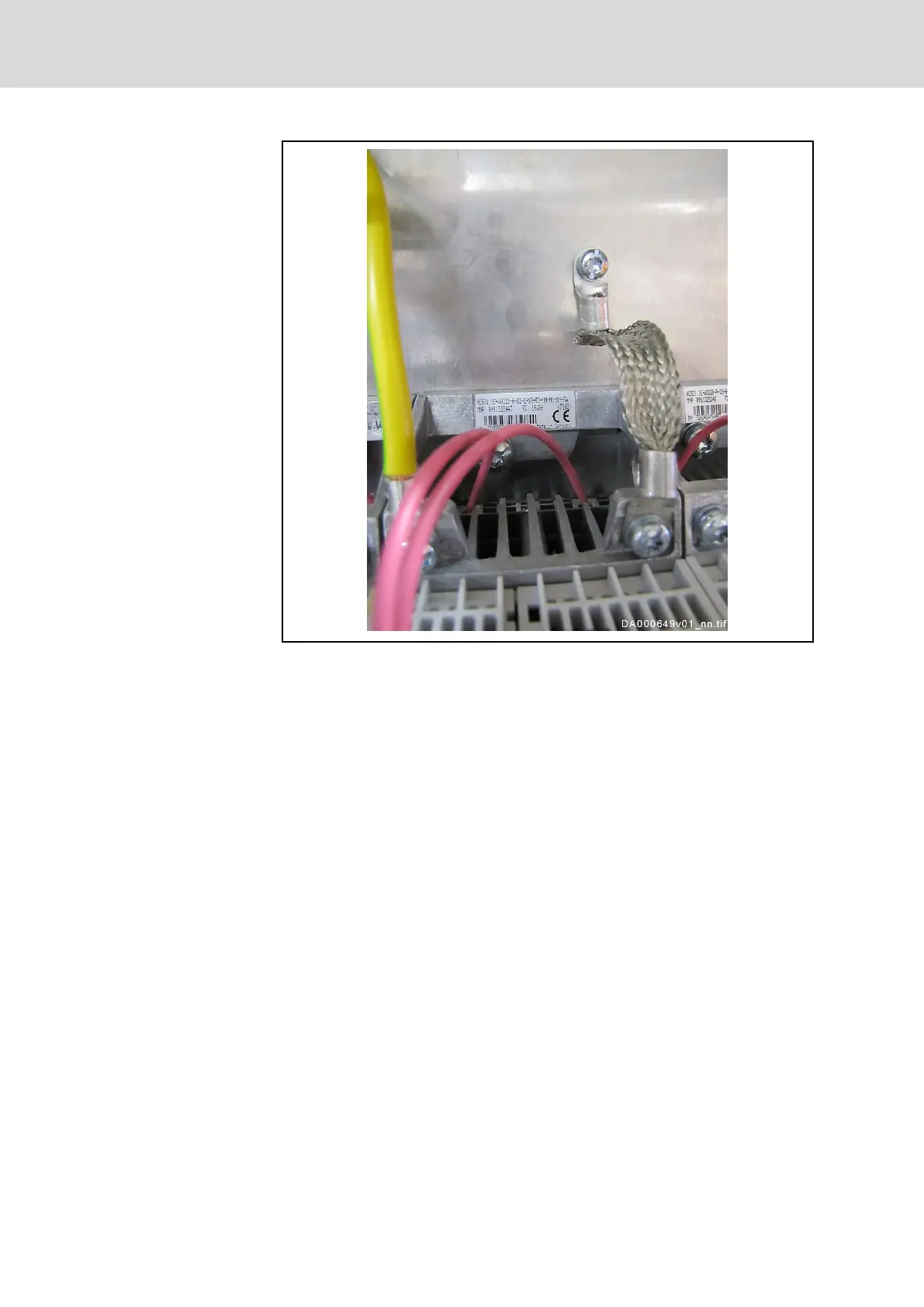

Fig. 10-10: Grounding strip between heat sink and mounting surface (example)
10.5.3 Overcurrent protection
Protect the components against overcurrent:
● Branch circuit protection has to be provided externally
● Dimension the branch circuit protection according to the data "Branch
circuit protection fuse" (see Ratings and dimensions)
