XD04, external braking resistor
Lethal electric shock by live parts with more
than 50 V!
Only operate the device
● with the connectors plugged on (even if no lines have been connected
to the connectors) and
● with the equipment grounding conductor connected!
Function
Is used to connect the integrated or external braking resistor HLR. The
braking resistor is connected to the DC bus using an internal switch.

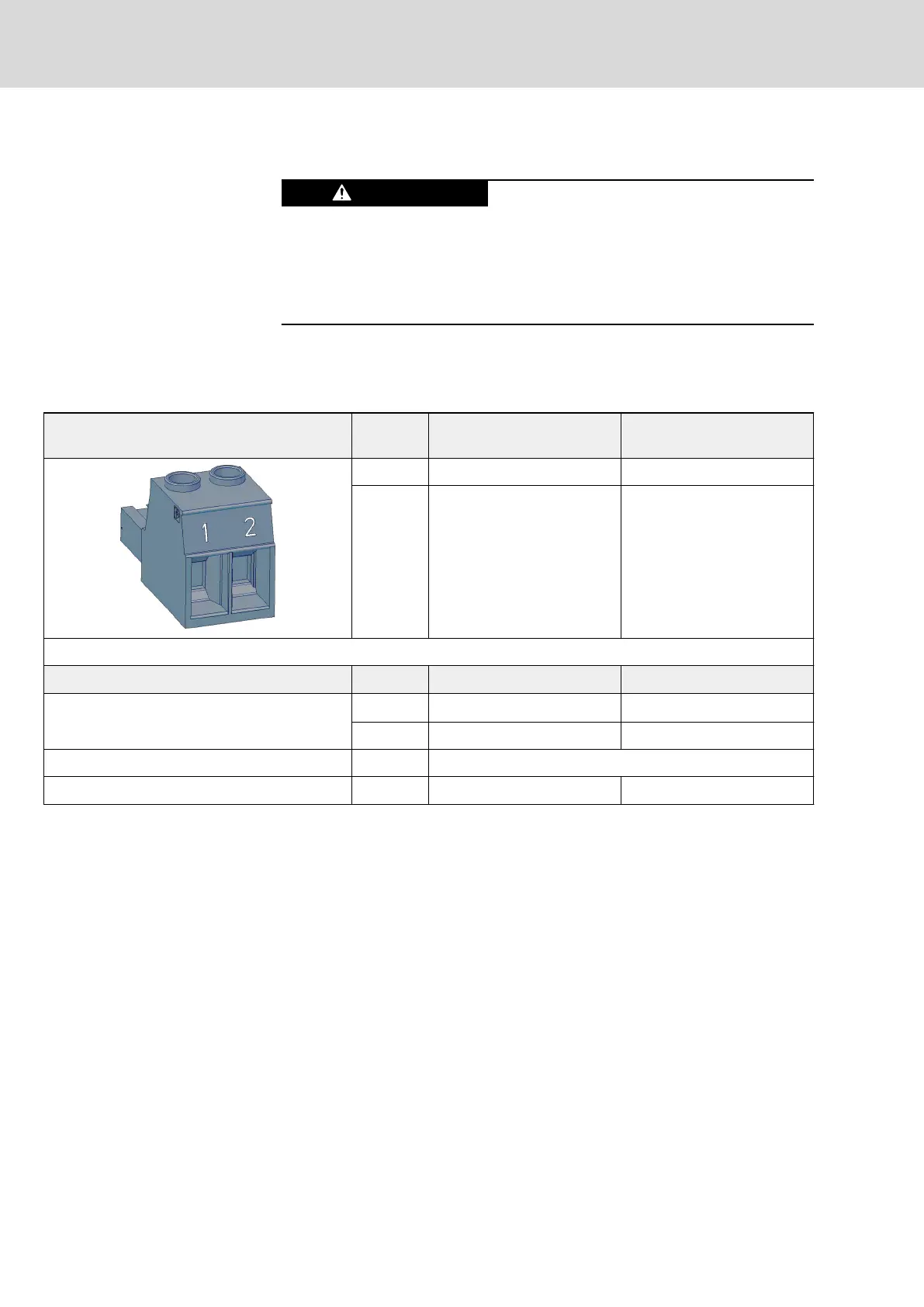

View Connectio
n
Signal name Function
1 tbd Braking resistor connection
2 tbd Braking resistor connection
Screw connection at connector Unit min. max.
Connection cable
Stranded wire
mm
2
0.75 16
AWG 18 6
Stripped length mm 14
Tightening torque Nm 1.7 1.8
Tab. 10-15: Function, pin assignment, properties
Notes on installation
Maximum allowed line length to external braking resistor: 5 m
Twist unshielded lines.
82/123
Mounting, dismounting and electrical installation
IndraDrive X Drive Controllers Power Sections XCS1, XMD1,
XMQ1
Bosch Rexroth AG R911392532_Edition 01
