Bosch Rexroth IndraDrive X - XG02, Bb Relay Contact

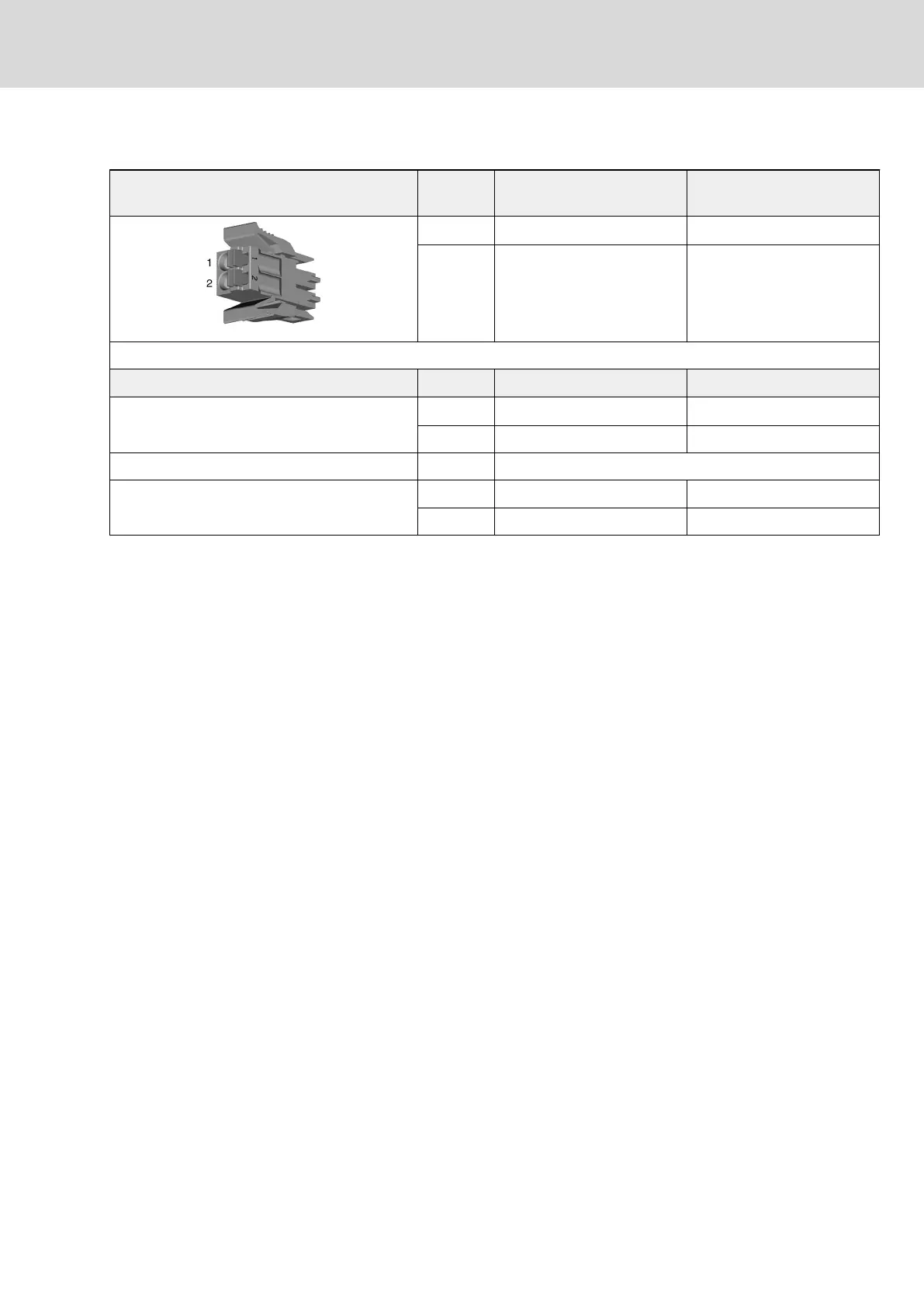

XG02, Bb relay contact
View Connectio
n
Signal name Function
1 Rel1
Bb relay contact
1)
2 Rel2
Bb relay contact
1)
Spring terminal (connector) Unit min. max.
Connection cable
Stranded wire
mm
2
0.2 1.5
AWG 24 16
Stripped length mm 10
Loading capacity of the contacts V 30
A 0.01 tbd
1) Wire the Bb relay contact in the control circuit for mains con‐
nection. When the contact opens, the mains contactor must in‐
terrupt the power supply.
Tab. 10-17: Function, pin assignment, properties
