5.2 XAS5, snap-on ferrite
5.2.1 Type code
XAS5
Short type designation 1 2 3 4 5 6 7 8 9
1
0 1 2 3 4 5 6 7 8 9
2
0 1 2 3 4 5 6 7 8 9
3
0 1 2 3 4 5 6 7 8 9
4
0
Example: X A S 5 - 0 0 1 - N N N - N N
① ② ③ ④
① Product:
XAS5 = IndraDrive X accessories, snap-on ferrite
② Device assignment:
001 = Snap-on ferrite for external braking resistors for cable cross sections up to 2 × 10 mm
2
002 = Snap-on ferrite for external braking resistors for cable cross sections up to 2 × 16 mm
2
③ Other properties:
NNN = None
④ Other design:
NN = None
Tab. 5-2: XAS5, type code

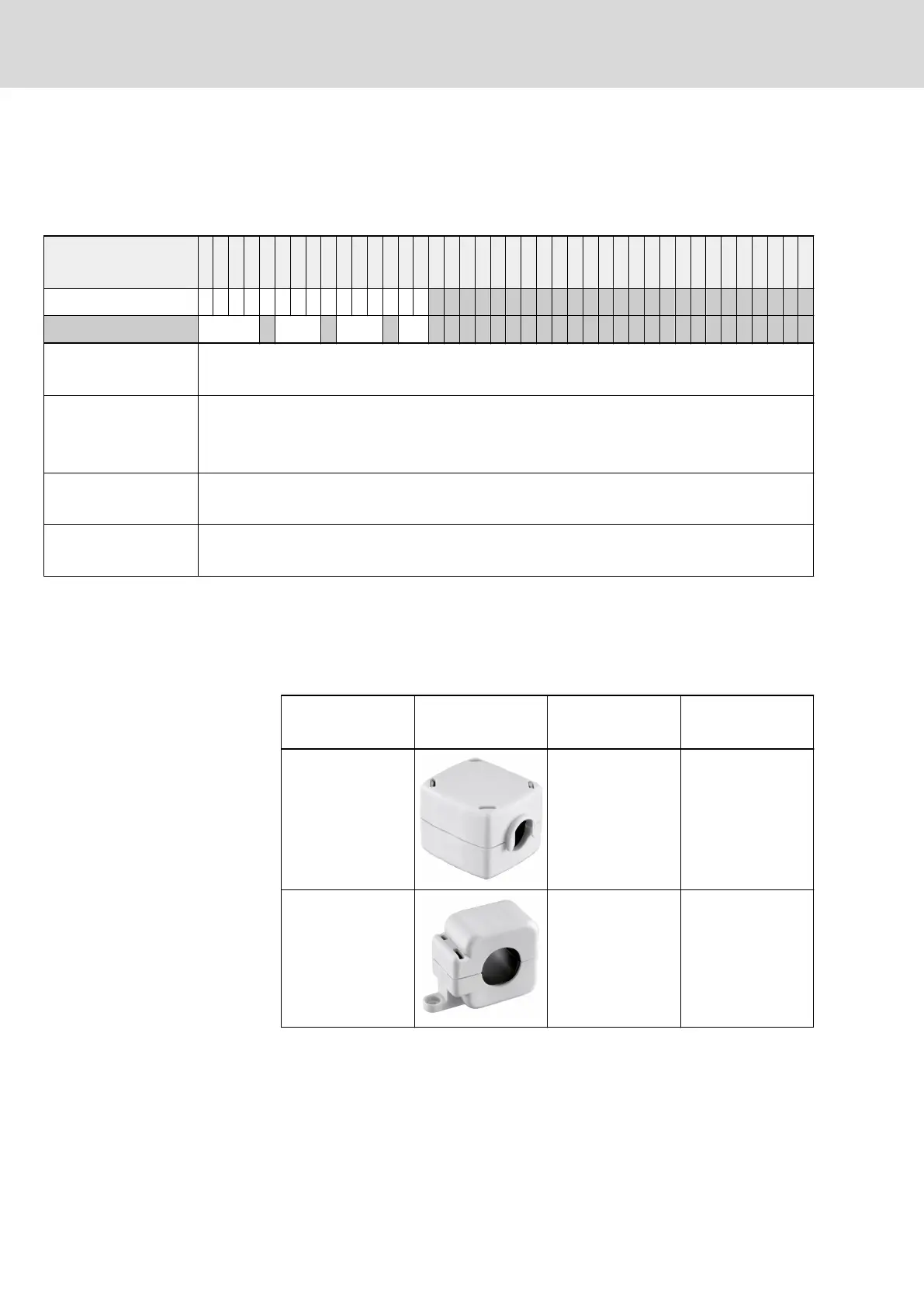

5.2.2 Snap-on ferrite (XAS5-001/-002)
Use
The XAS5-001/-002-NNN-NN accessory (snap-on ferrite) ensures that
braking resistors comply with Class C3 of the EMC Directive EN 61800‑3.
XAS5.1- Picture Cable diameter
[mm]
Cable cross section
[mm
2
]
001 10.5 … 12.5 2 × (6 … 10)
002 16 2 × 16
Tab. 5-3: Snap-on ferrite
