Bosch Rexroth IndraDrive X - Xmd1

10.2.2 XMD1

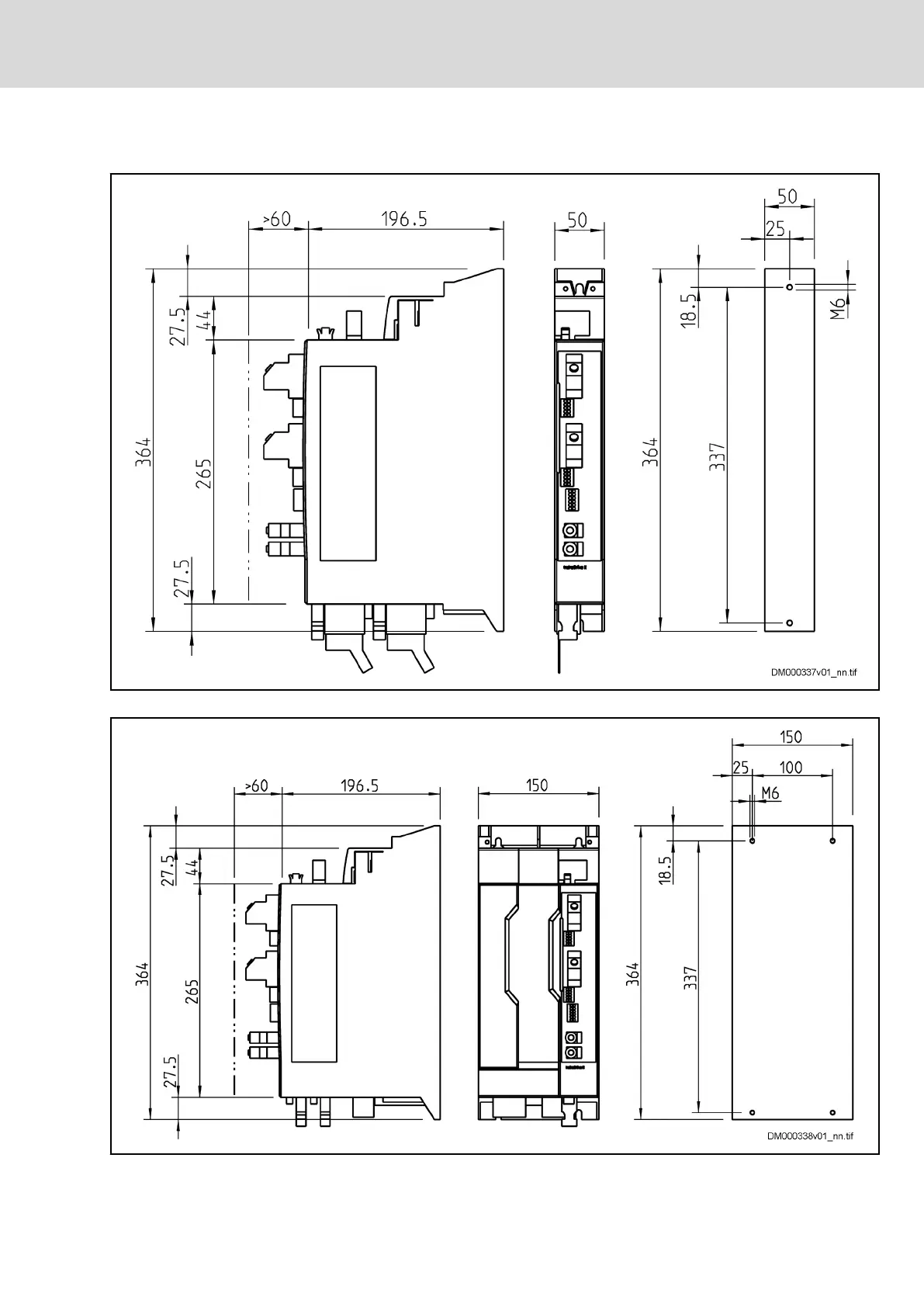

Fig. 10-4: Dimensional drawing XMD1-W2323
Fig. 10-5: Dimensional drawing XMD1-W5454/-W7070
IndraDrive X Drive Controllers Power Sections XCS1, XMD1,
XMQ1
51/123
Mounting, dismounting and electrical installation
R911392532_Edition 01 Bosch Rexroth AG
