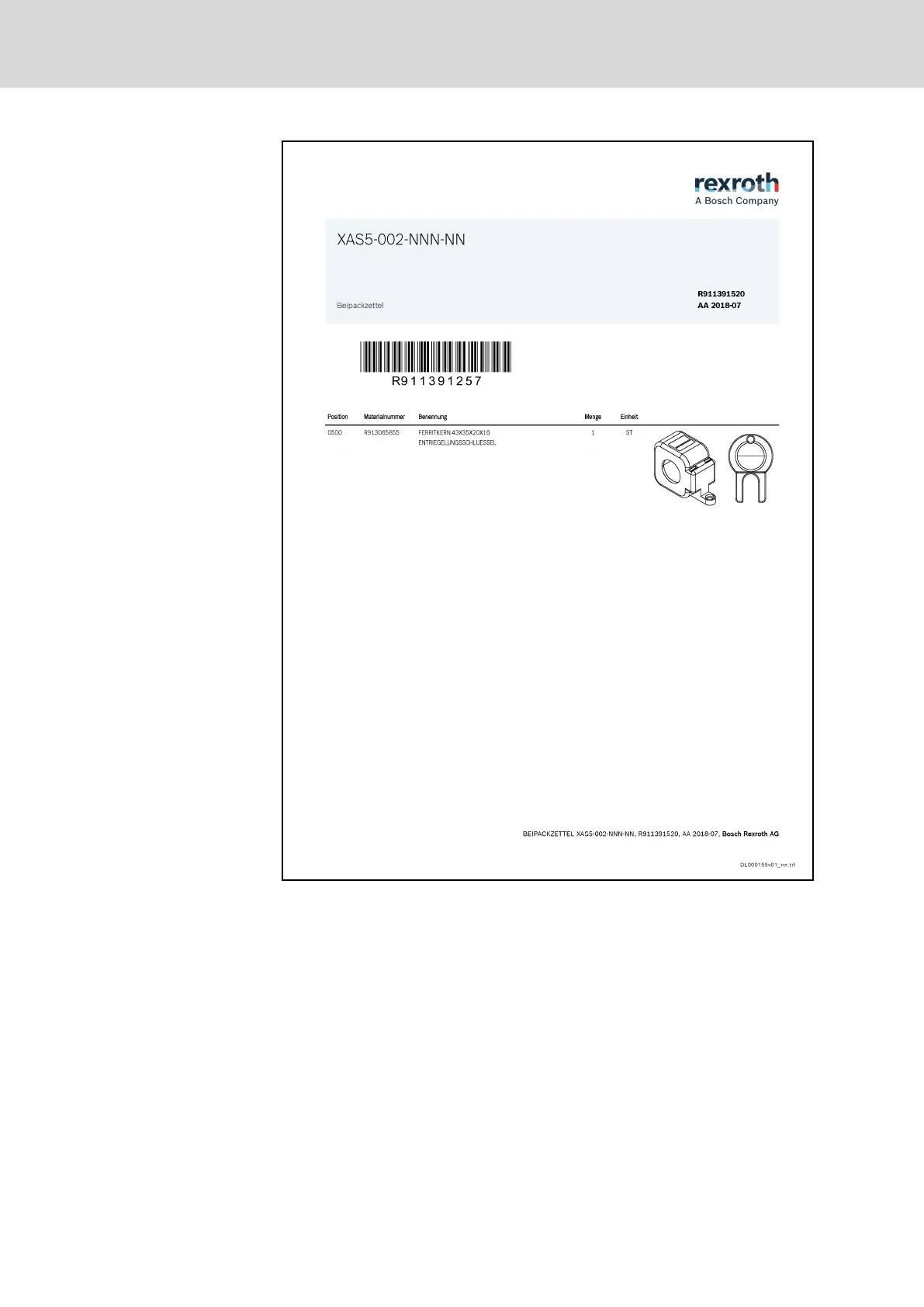

Fig. 5-8: XAS5.1-002 product insert
Mounting
● Before mounting the snap-on ferrite, store it for at least 1 hour at a
temperature of 15 … 25 °C.
● When mounting the snap-on ferrite, avoid putting it under mechanical
stress. The housing or the ferrite core might brake.
● Do not mount the snap-on ferrite in the immediate vicinity of strong heat
sources. The maximum allowed ambient temperature of the snap-on
ferrite is 105 °C.
● Fix the snap-on ferrite to the cable jacket of the braking resistor
connection line.
