Description Symbol Unit Value

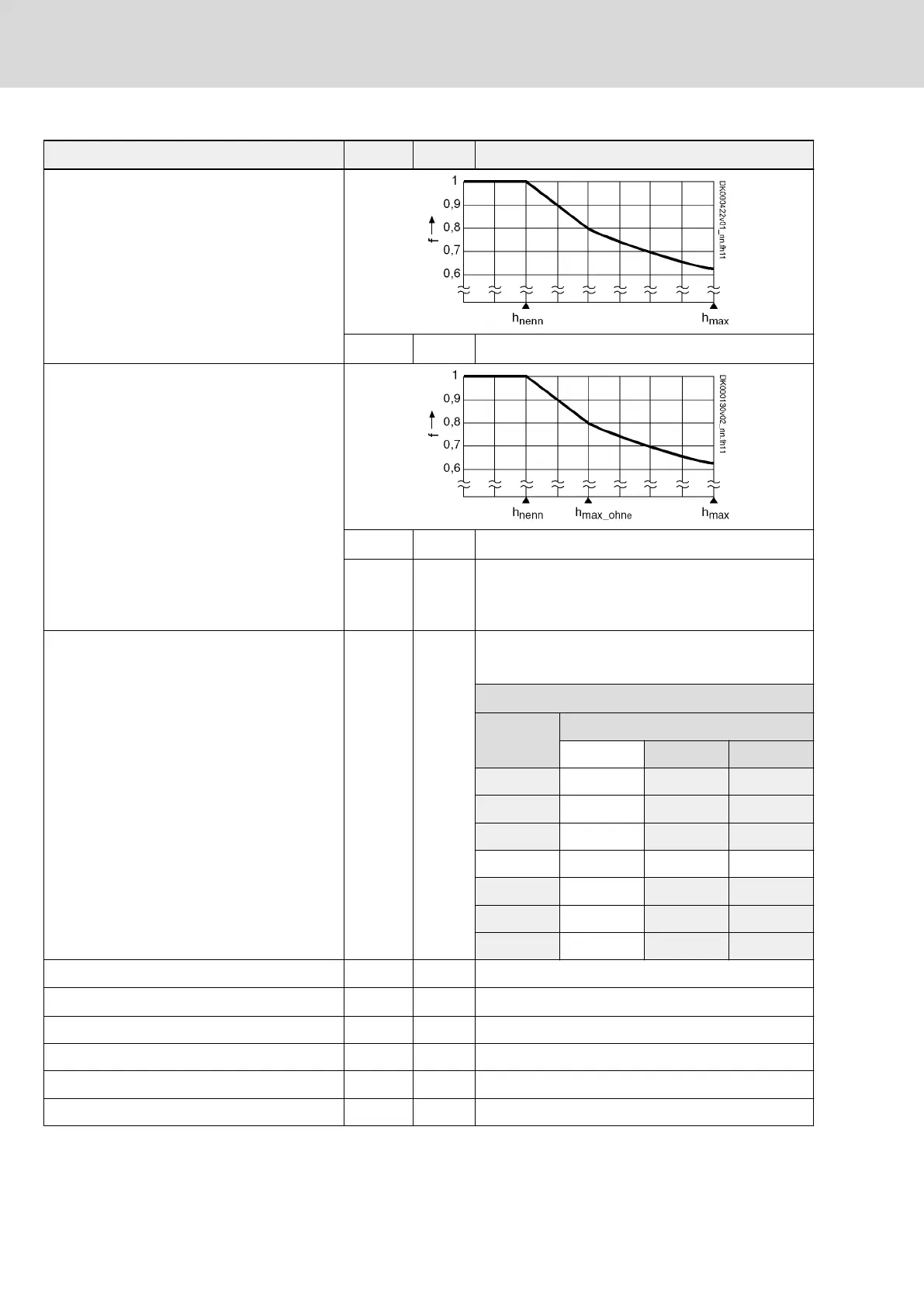

Derating vs. installation altitude:
Applies to the following devices:
● XCS1-W0xxx
● XMD1-W7070, -5454
At an installation altitude h > h
nenn
, the
available performance data are reduced by the
factor f
1)
.
Use above h
max
is not allowed!
h
max
m 4000
Derating vs. installation altitude:
Applies to the following devices:
● XMD1-W2323, -1616, -1010, -0606
● XMQ1-WQ001, -WQ002
At an installation altitude h > h
nenn
, the
available performance data are reduced by the
factor f
1)
.
At an installation altitude in the range
h
max_ohne
to h
max
, an isolating transformer has
to be installed at the drive system mains
connection.
Use above h
max
is not allowed!
h
max_ohne
m 2000
h
max
m 4000
Simultaneous derating for ambient
temperature [°C] and installation altitude [m]
Allowed;
reduce performance data with the product f × F
Ta
Derating factors (for f
Ta
= 2 %/K)
[°C] [m]
1000 2000 4000
25 1 1 0.82
30 1 0.96 0.76
35 1 0.88 0.69
40 1 0.8 0.62
45 0.9 0.72 0.57
50 0.8 0.64 0.5
55 0.7 0.56 0.44
Relative humidity % 5 … 95
Absolute humidity
g/m
3
1 … 29
Moisture condensation Not allowed
Climatic category (IEC 60731‑3‑3) 3K3
Allowed pollution degree (IEC 60664‑1) 2
Resistance to chemically active substances Class 3C1
