Bosch Rexroth IndraDrive X - Page 91

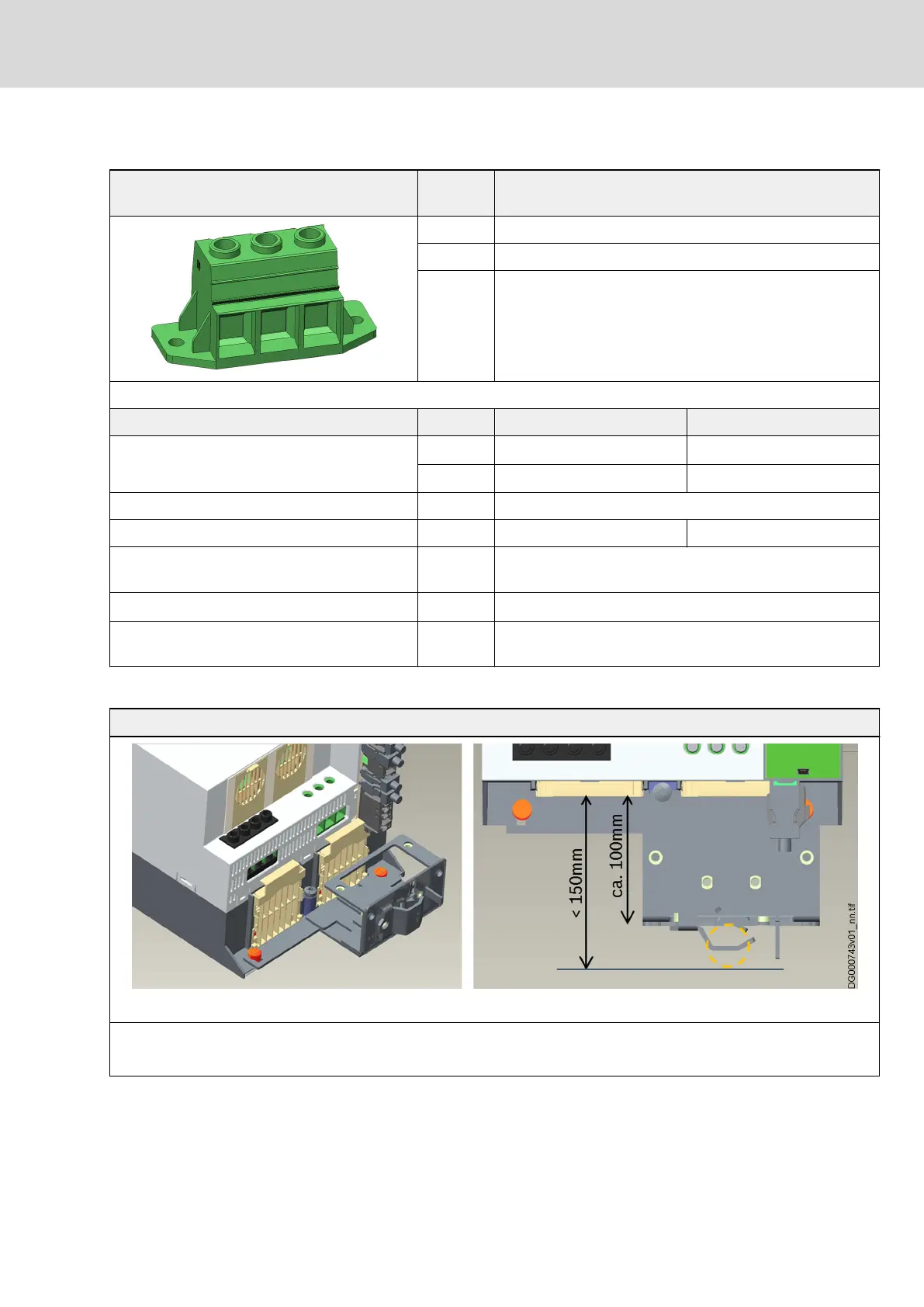

XD03, motor connection (35 mm
2
)
View Identificati
on
Function
A1 For power connection U1 at motor
A2 For power connection V1 at motor
A3 For power connection W1 at motor
Terminal block Unit min. max.
Connection cable
Stranded wire
mm
2
0.5 35
AWG 20 4
Stripped length mm 18
Tightening torque Nm 2.5 4.5
Occurring current load and minimum required
connection cross section
A See technical data of device used (I
out
)
Occurring voltage load V See technical data of device used (U
out
)
Short circuit protection A1, A2, A3 against each other and each of them against
ground
Tab. 10-8: Function, pin assignment, properties
Motor cable shield connection
Accessories: XAS2
Typical motor cable cross section: 1 × 16 mm
2
.
Double wiring with 2 × 10 mm
2
is possible using twin ferrule.
Tab. 10-9: Motor cable shield connection
IndraDrive X Drive Controllers Power Sections XCS1, XMD1,
XMQ1
75/123
Mounting, dismounting and electrical installation
R911392532_Edition 01 Bosch Rexroth AG
