XG3 (2.5 mm
2
)
View Connectio
n
Signal name Function
5 MotTemp+ Motor temperature evaluation
input
6 MotTemp-
7 +24VBr Output for controlling the motor
holding brake
8 0VBr
Spring terminal (connector) Unit min. max.
Connection cable
Stranded wire
mm
2
0.2 2.5
AWG 24 12
Stripped length mm 10
Current carrying capacity of outputs
XG03
A - 2
Time constant of load ms - 50
Number of switching operations at
maximum time constant of load
Wear-free electronic contact
Switching frequency Hz - 0.5
Short circuit protection XG03.7 against XG03.8 (output for controlling the motor holding
brake)
Overload protection tbd

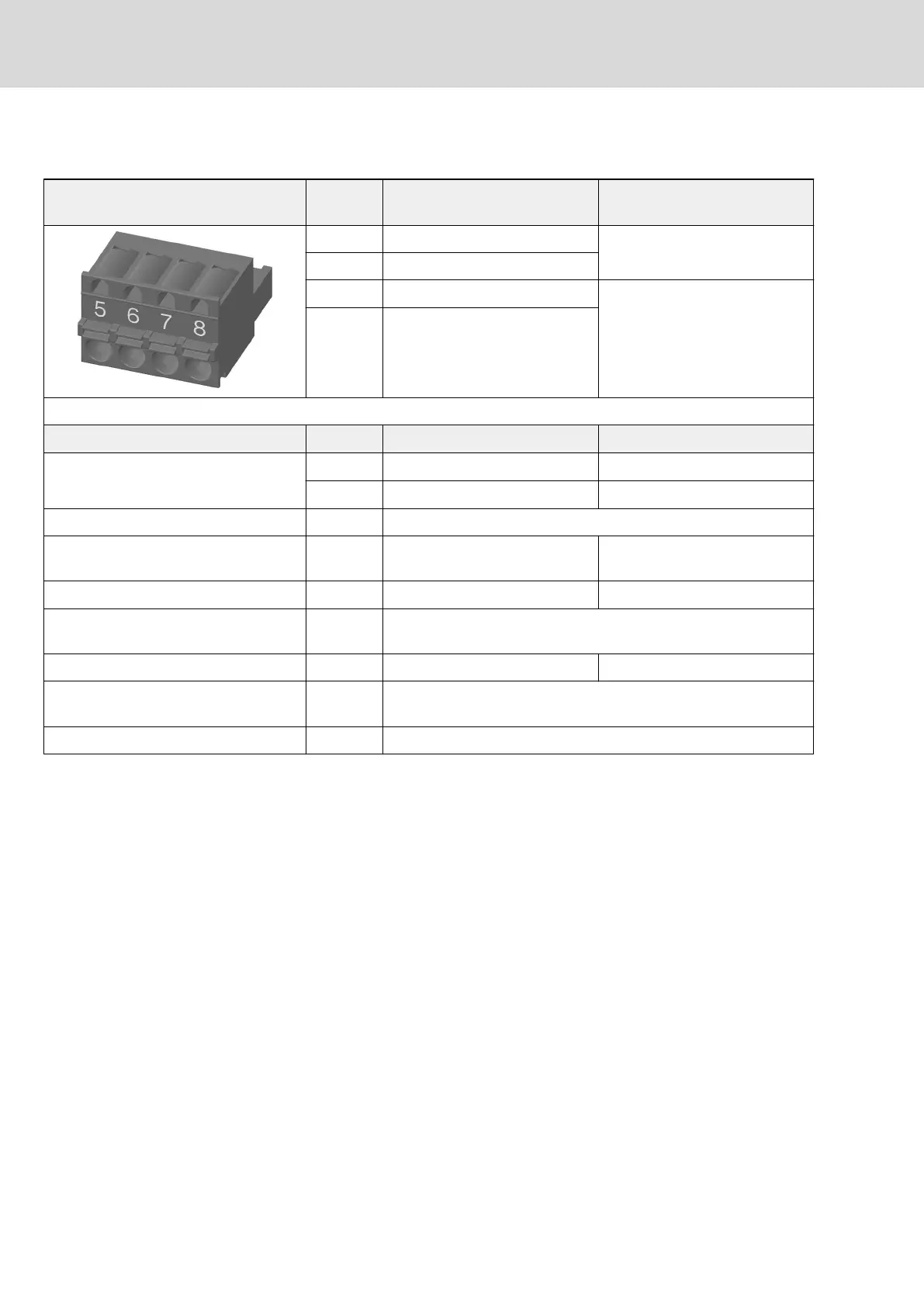

Tab. 10-13: Function, pin assignment
