DSS user interface
3–1
1070 066 037-101 (00.02) GB
3 DSS user interface

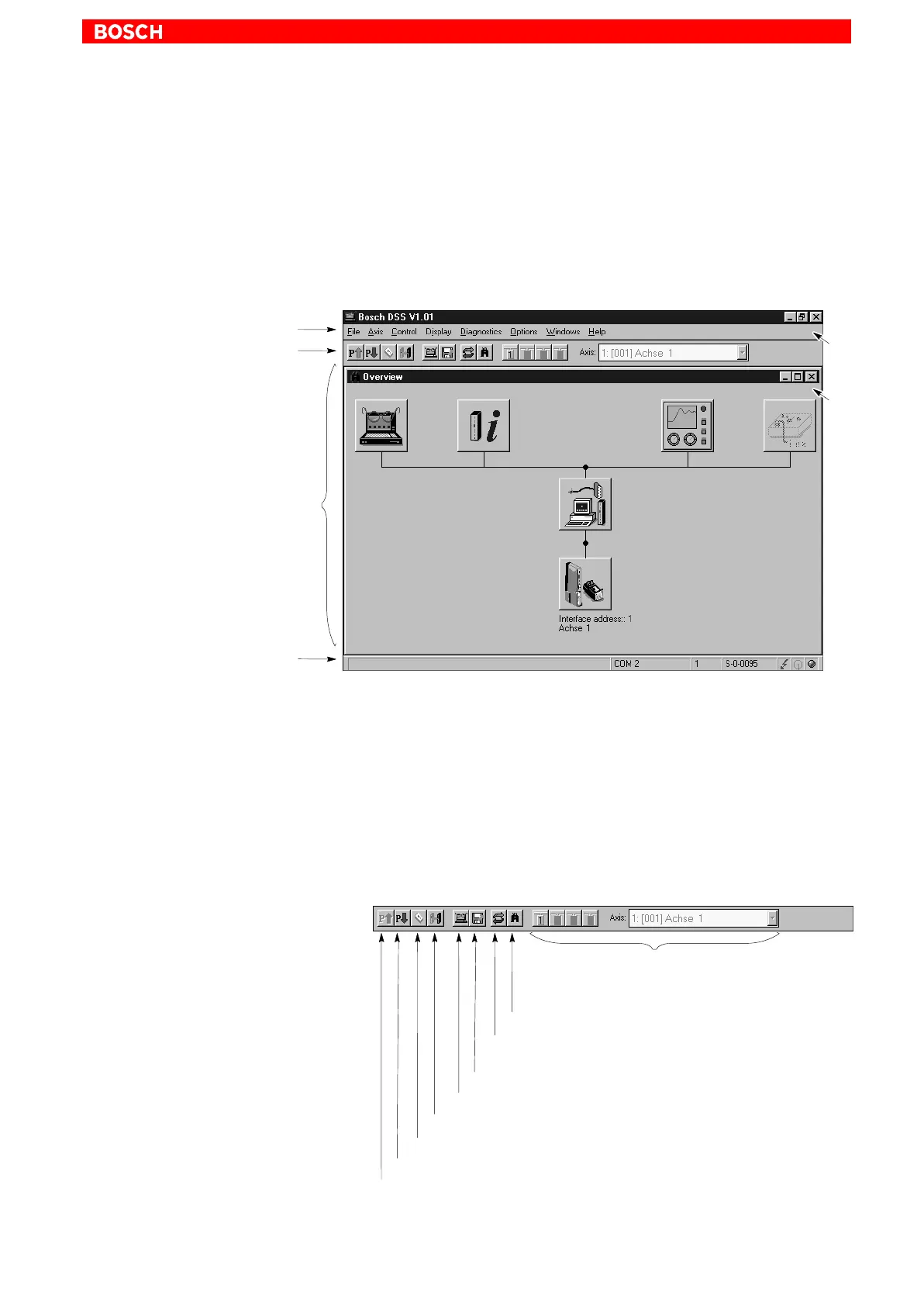

3.1 DSS basic image
The layout of the DSS user interface has been optimized for a screen
resolution of 640 x 480 pixels in connection with a 14” color monitor.
You should not use screen resolutions of more than 800 x 600 pixels
unless you have at least a 17” monitor.
Menu bar
Icon bar
Status bar
Dialog area:
for displaying DSS-specific
windows and dialogs
(shown: ”Overview” window)
1
2
1 Changes the DSS program window and exits the program.
2 Changes a DSS-specific window
Please note that iconized window symbols may be covered by open win-
dows. Covered windows can be displayed by selecting the ”Windows”
menu.
Icon bar
The meaning of the command buttons is also displayed when the mouse
pointer is on the command button.
Symbols for axis selection
(without function in this figure)
invokes the ”Overview” window
invokes the ”Cyclic telegram” window
invokes the dialog for opening a *.scs file
starts the DSS monitor
initiates the ”Init module type” command
clears active errors of diagnostics class 1
initiates return to phase 0
increments one phase
