The following table lists the Power Supply Box connectors:
Table 2.1 Power Supply Box Connections
2.5 Route Power through Intermediate Power Supply Box
You may route the main power supply through a VG4-PSU1 (120 V transformer) or through a
VG4-PSU2 (230 V transformer) Power Supply Box before connecting the power to a VG4-PA0
(24 V, no transformer) Power Supply Box. The main issue with this configuration is that the 5-
pin power out connector from the VG4-PSU1 or VG4-PSU2 does not match to the 3-pin power
input of the VG4-PA0 power supply. The illustration below depicts:
– A VG4-PSU1/VG4-PSU2 Power Supply Box.
– The main power supply connected to the P101 connector and to the grounding screw.
– The 24 VAC power out wire connected to the P107 heater power connectors.

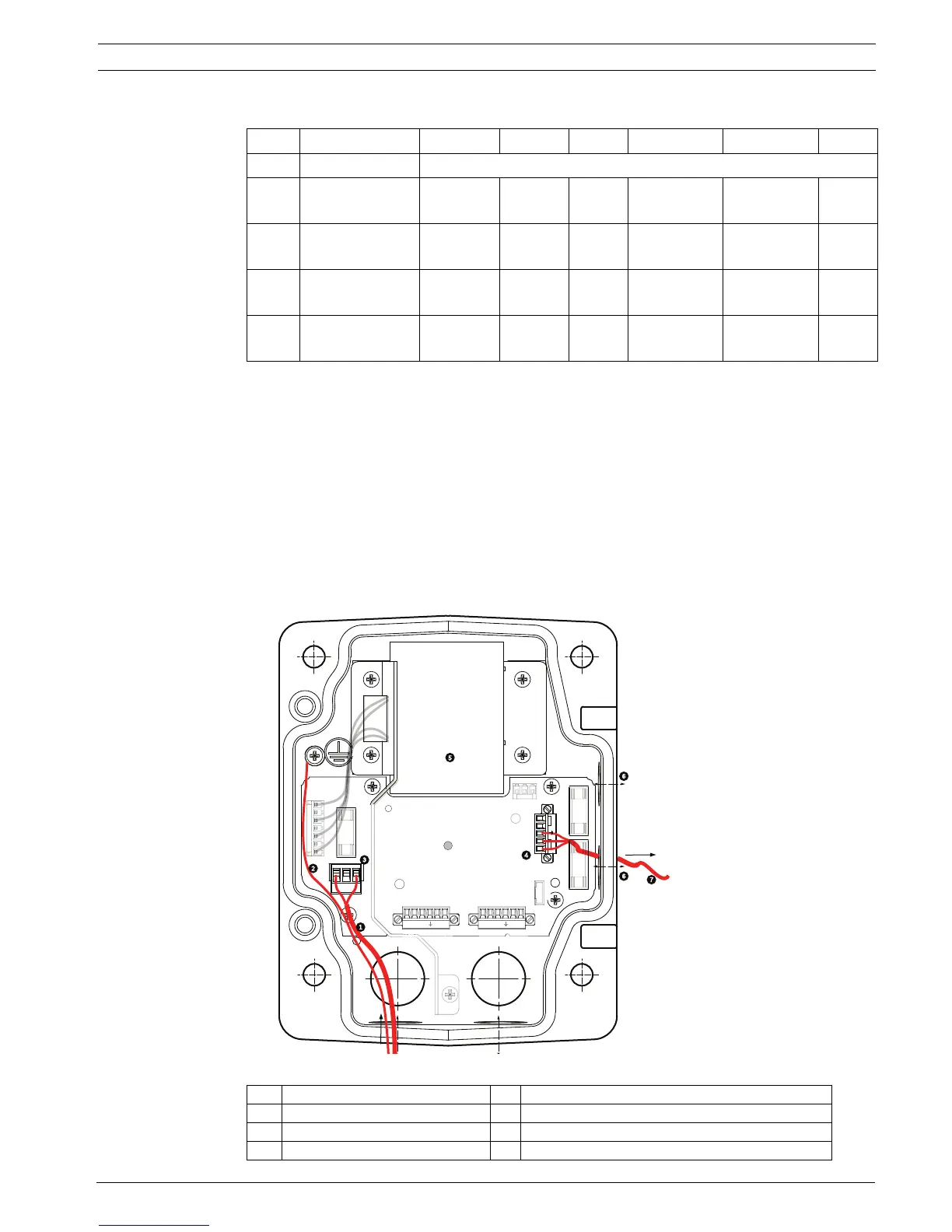

Figure 2.5 VG4-PSU1/VG4-PSU2 Power Supply Box
No. Connector Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6
Ground Grounding Screw
P101 115/230 VAC or
24 VAC Power In
Line NC Neutral
P105 Control to Dome
(Arm Harness)
C-
(Biphase)
C+
(Biphase)
Earth
Ground
RXD (+)
(RS-232/485)
TXD (-)
(RS-232/485)
Signal
Ground
P106 Control In/Out C-
(Biphase)
C+
(Biphase)
Earth
Ground
RXD (+)
(RS-232/485)
TXD (-)
(RS-232/485)
Signal
Ground
P107 24 VAC Power
(Arm Harness)
Dome
24 VAC
Dome
24 VAC
Earth
Ground
Heater
(24 VAC)
Heater
(24 VAC)
1 120/230 VAC Power In 5 Transformer
2 Ground Wire 6 In/Out Conduit (1/2 in. [15 mm] NPS Fitting
3 P101 Connector 7 24 VAC Power Out to VG4-PA0
4 P107 Connector
GND
+
-
ND
X
X
+
-
P1
P1
P107
XF102 XF103
XF101
5 4 3 2 1
1
2
10
(LED)
VG4-PSU1 / VG4-PSU2
HTR DOME
FUSE
FUSE
To Next Page
