98 en | Alarms and Relay Connections VG4 Modular Camera Series
F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
6.3 Configuring Non-supervised Alarms (inputs 1 through 7)
You can configure alarms 3 through 7 as non-supervised Normally Open (N.O.) or Normally
Closed (N.C.) alarms.
6.3.1 Configuring a Normally Open Non-supervised Alarm
1. Connect the alarm to the appropriate input (1 through 7) and ground at the AutoDome.

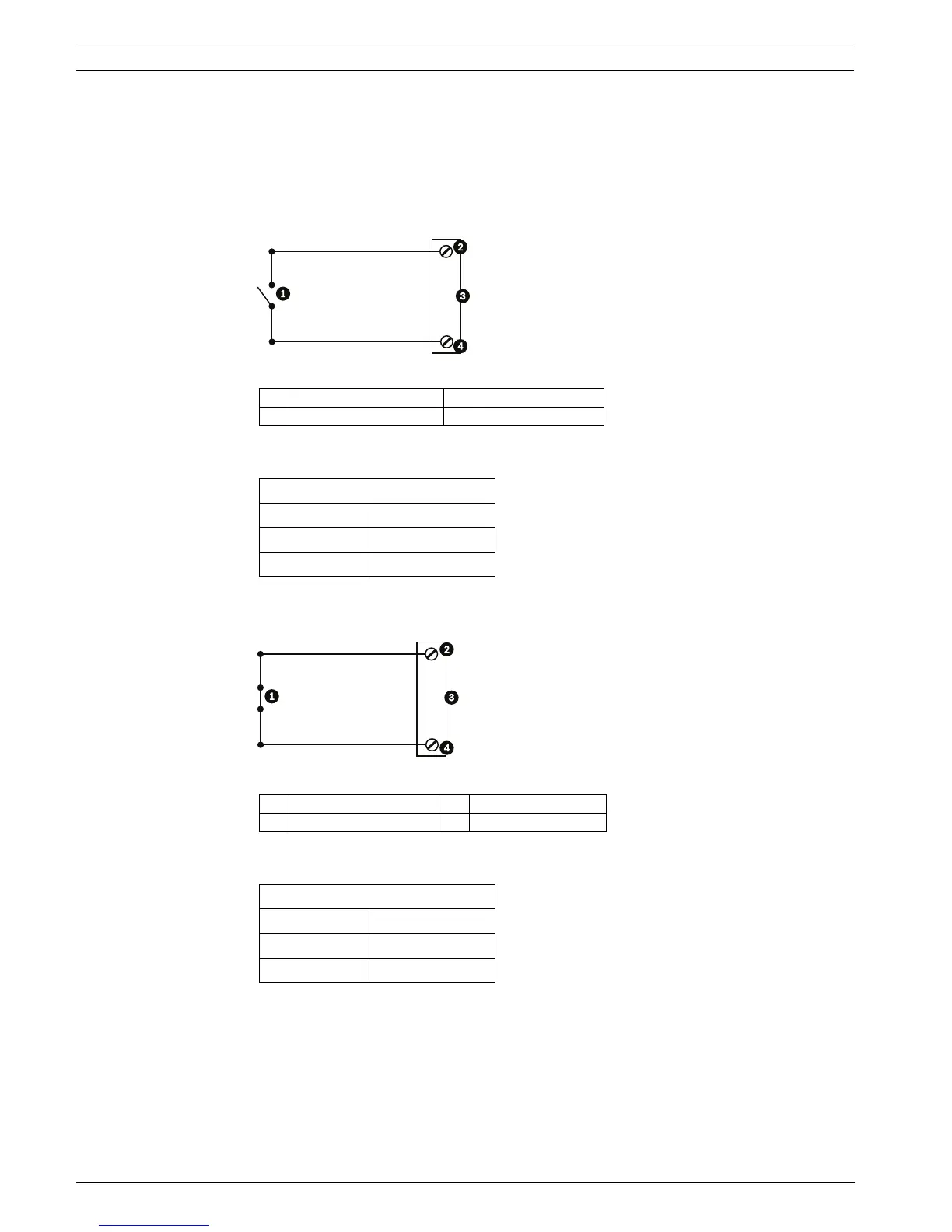

Figure 6.3 N.O. - Normally Open Non-supervised Connections
2. From the AutoDome main menu select Alarm Setup>Inputs Setup, and set Alarm Input #
to N.O. See the table below for contact and condition details.
6.3.2 Configuring a Normally Closed Non-supervised Alarm
1. Connect the alarm to the appropriate input (1 through 7) and ground at the AutoDome.
Figure 6.4 N.C. Normally Closed Non-supervised Connections
2. From the AutoDome main menu select Alarm Setup>Inputs Setup, and set Alarm Input #
to N.C. See the table below for contact and condition details.
1 Dry Contact 3 Dome Connector
2 Alarm Inputs 1 to 7 4 Ground
AutoDome Programmed N.O.
Circuit Alarm Indication
Open Normal
Closed Alarm
1 Dry Contact 3 Dome Connector
2 Alarm Inputs 1 to 7 4 Ground
AutoDome Programmed N.C.
Circuit Alarm Indication
Open Alarm
Closed Normal
