3.3.1 Attach Cover Door
1. Compress the bottom hinge pin by pushing the pin lever down and then rotate it behind
the Hinge Pin Stop. The power box Cover Door provides a Hinge Pin Stop to hold the
bottom hinge open while attaching the door.

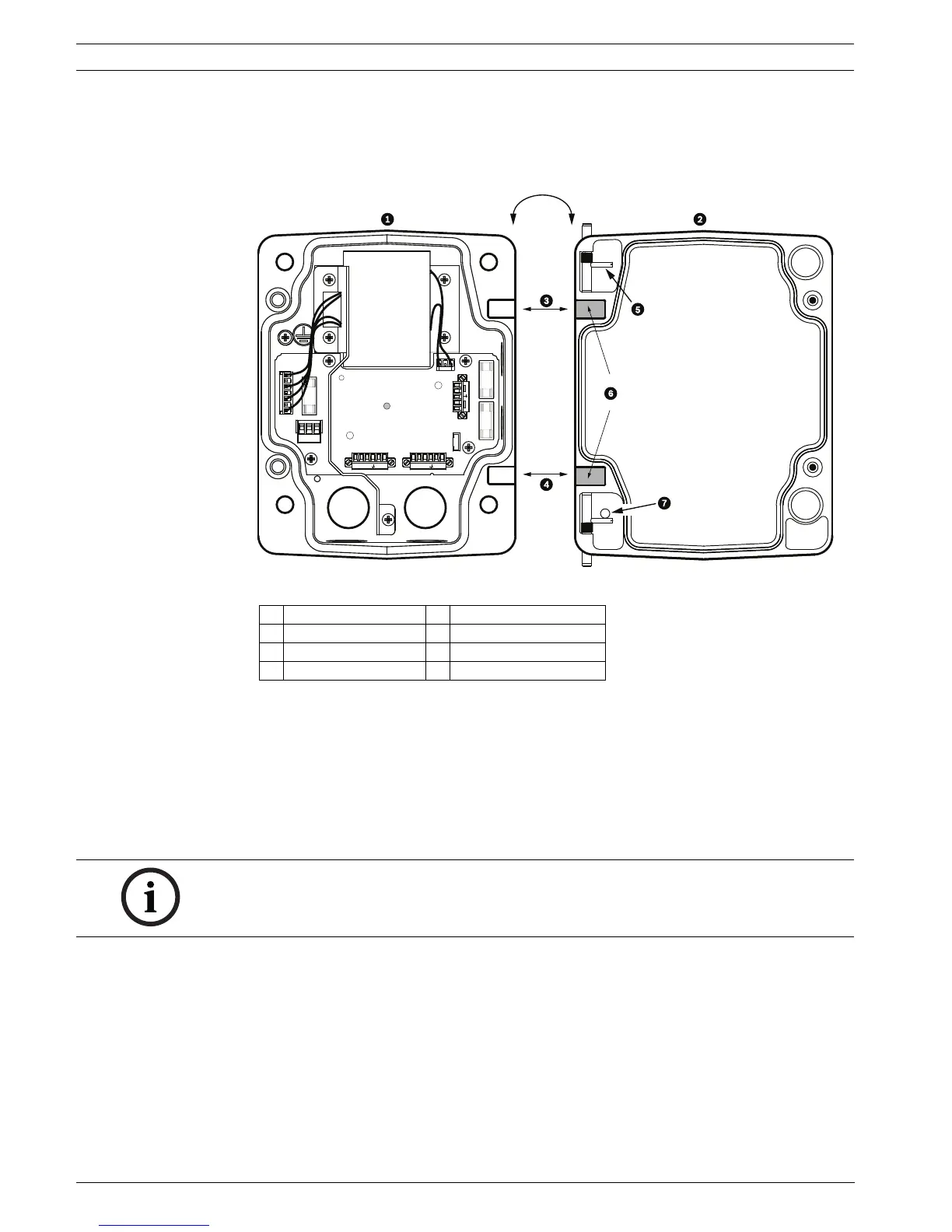

Figure 3.2 Align Cover Door Hinge to Power Box
2. Open the top hinge by pushing its pin lever outward and holding it open.
Note: Both Hinge Pins must be fully compressed to open (unlock) the female hinges of
the Cover Door before proceeding to the next step.
3. While holding the top hinge pin open, position the Cover Door to the Power Supply Box
and align its hinges.
4. When the hinges are aligned, release the top hinge pin to engage its mating hinge on the
power box. Then release the bottom hinge pin from the Hinge Pin Stop to complete
attaching the Cover Door to the Power Supply Box.
1 Power Supply Box 5 Hold Hinge Pin Open
2 Cover Door 6 Open Position
3 Align Top Hinge 7 Hinge Pin Stop
4 Align Bottom Hinge
GND T XD
R XD
C+
C- GND T XD
R XD
C+
C-
FUSE
FUSE
FUSE
24V NC 24V
90
o
HTR DOME
NOTICE! After all wiring is complete, close the cover door and tighten the two (2) captive
screws on the cover door to 10-12 N-m (90-105 in.-lbs) to ensure the Power Supply Box is
watertight.
