VG4 Modular Camera Series Installing the In-Ceiling Mount | en 81
Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03
4.7 Attach Housing to the Interface Box
The In-Ceiling Housing is attached to the Interface Box and secured by two (2) thumbscrews.

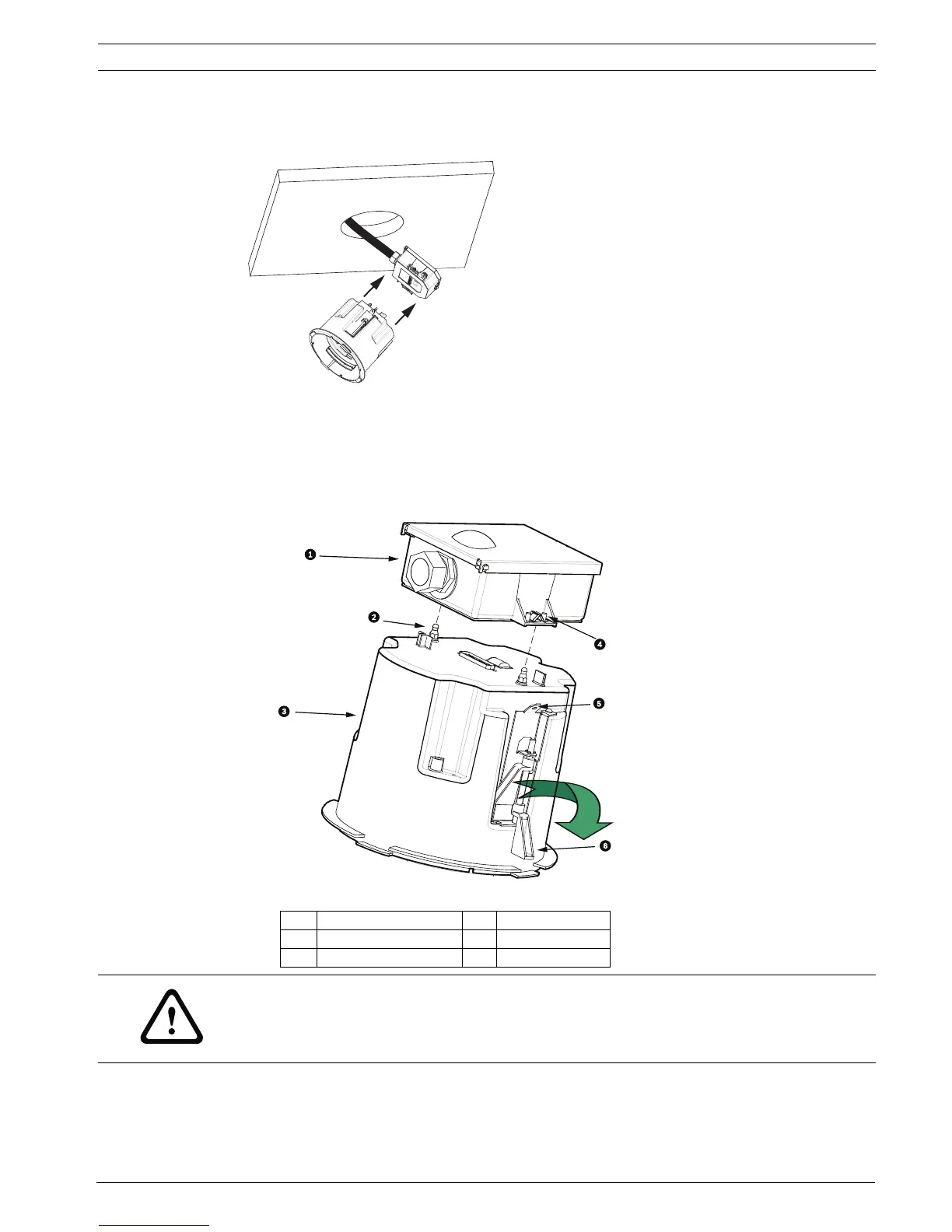

Figure 4.9 Attach Housing to Interface Box
1. Insert the In-ceiling housing through the hole in the ceiling to verify that the edge of the
hole support the unit. Then remove the housing from the hole.
2. Align the ball studs of the In-Ceiling Housing to the Stud Retainers on Interface Box and
attach.
3. Tighten the two (2) Thumbscrews to secure the Interface Box to the housing.
Figure 4.10 In-Ceiling Housing and Interface Box
1 Interface Box 4 Thumb Screw
2 Ball Stud 5 Tether Point
3 In-ceiling Housing 6 Ceiling Clamp
CAUTION!
The In-ceiling dome is provided with tether points on each side of the housing. To prevent
injury, attach a safety wire from a secure anchor point above the ceiling to a tether point on
the dome housing, see Figure 4.11, Page 82, below for an illustration of this process.
