VG4 Modular Camera Series Installing the Pendant Arm Wall, Corner, and Mast (Pole) Mounts | en 33
Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03
2.10 Attach Pendant to Arm and Tighten
1. Tilt the bottom of the dome toward the pendant arm base and place the mounting hook,
located on top of the dome housing, over the recessed hinge pin of the arm.

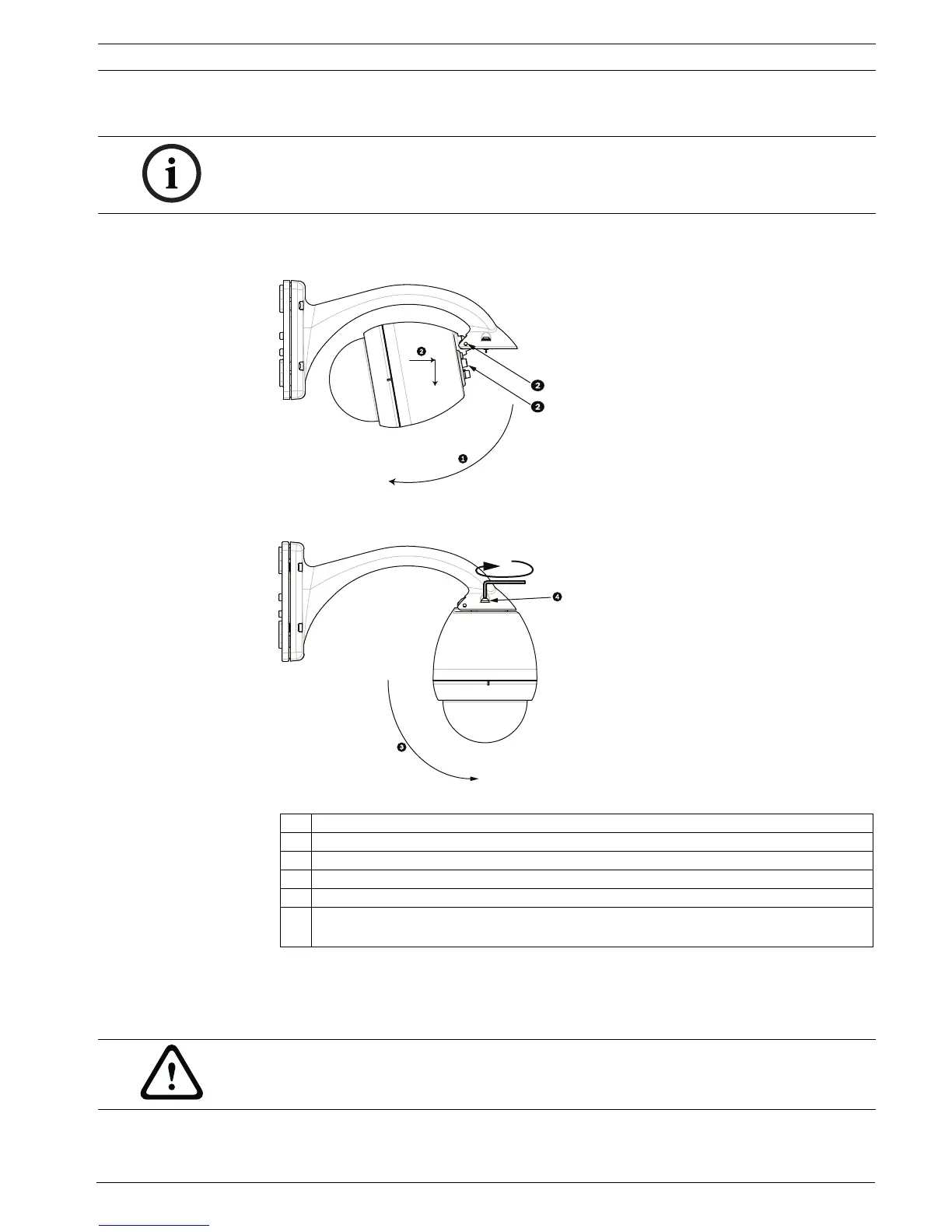

Figure 2.17 Attach Pendant to Arm
2. Drop the dome housing down slightly to engage the dome housing hook on the Pendant
Arm hinge pin, allowing the dome to rotate around the pin.
3. Rotate the dome housing down to a vertical position and gently push upward to engage
the connector on top of the dome housing.
NOTICE! Before attaching the AutoDome Pendant, visually inspect the dome and arm
connectors for any blocked pin holes or bent pins.
1Tilt up.
2 Hook and drop.
2a Recessed Hinge Pin
2b Dome Connector
3 Rotate down to engage dome connector.
4 Tighten the two (2) mounting screws to a minimum torque of 10-12 N-m
(90-105 in.-lbs).
CAUTION!
If you feel any resistance when rotating the dome housing or when engaging the connector,
stop immediately and start over.
