60 en | Installing Roof Parapet and Pipe Mounts VG4 Modular Camera Series
F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
6. Insert the Pipe Interface Board into the down pipe and fasten the three (3) retaining
screws to secure the board to the Dome Cap.

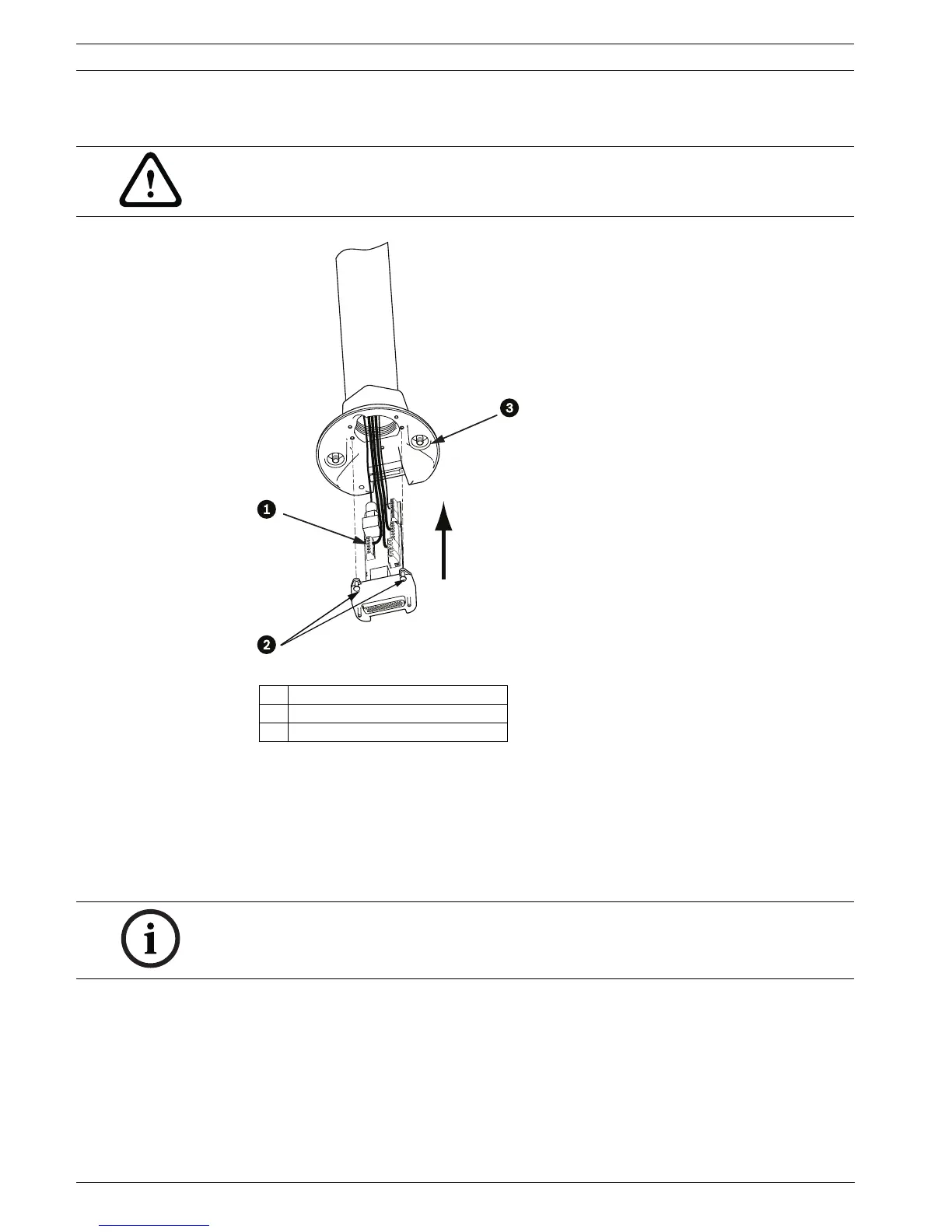

Figure 3.12 Pipe Interface Board to Dome Cap Assembly
3.8 Assemble the Pendant in Packing Box
The AutoDome Pendant can be assembled before attaching it to the roof or pipe mount. The
Pendant includes a Housing, Camera Module, and Bubble.
1. Open the box containing the Pendant Housing from the top, and remove the two
cardboard inserts from the top of the box.
2. Remove the plastic bag from the Pendant Housing, and then place it back into its box.
CAUTION!
Be careful not to strip the threads when tightening the Pipe Interface Board retaining screws.
1 Interface Board
2 Retaining Screws (3)
3 Pendant Mounting Screws (2)
NOTICE! The Pendant Housing box is designed to hold the housing in-place during the
assembly of the Pendant.
